Datasheet IR3826 (Infineon) - 4
| 制造商 | Infineon |
| 描述 | OptiMOS™ IPOL 23 A single-voltage synchronous buck regulator |
| 页数 / 页 | 53 / 4 — IR 8. OptiMOS™ IPOL. 23 A single-voltage synchronous Buck regulator. … |
| 修订版 | 02_04 |
| 文件格式/大小 | PDF / 2.3 Mb |
| 文件语言 | 英语 |
IR 8. OptiMOS™ IPOL. 23 A single-voltage synchronous Buck regulator. Ordering information. Table 1. Ordering Information
该数据表的模型线
文件文字版本
IR 8 OptiMOS™ IPOL 23 A single-voltage synchronous Buck regulator Ordering information 1 Ordering information Table 1 Ordering Information Base Part Number Package Type Standard Pack Form and Qty Orderable Part Number

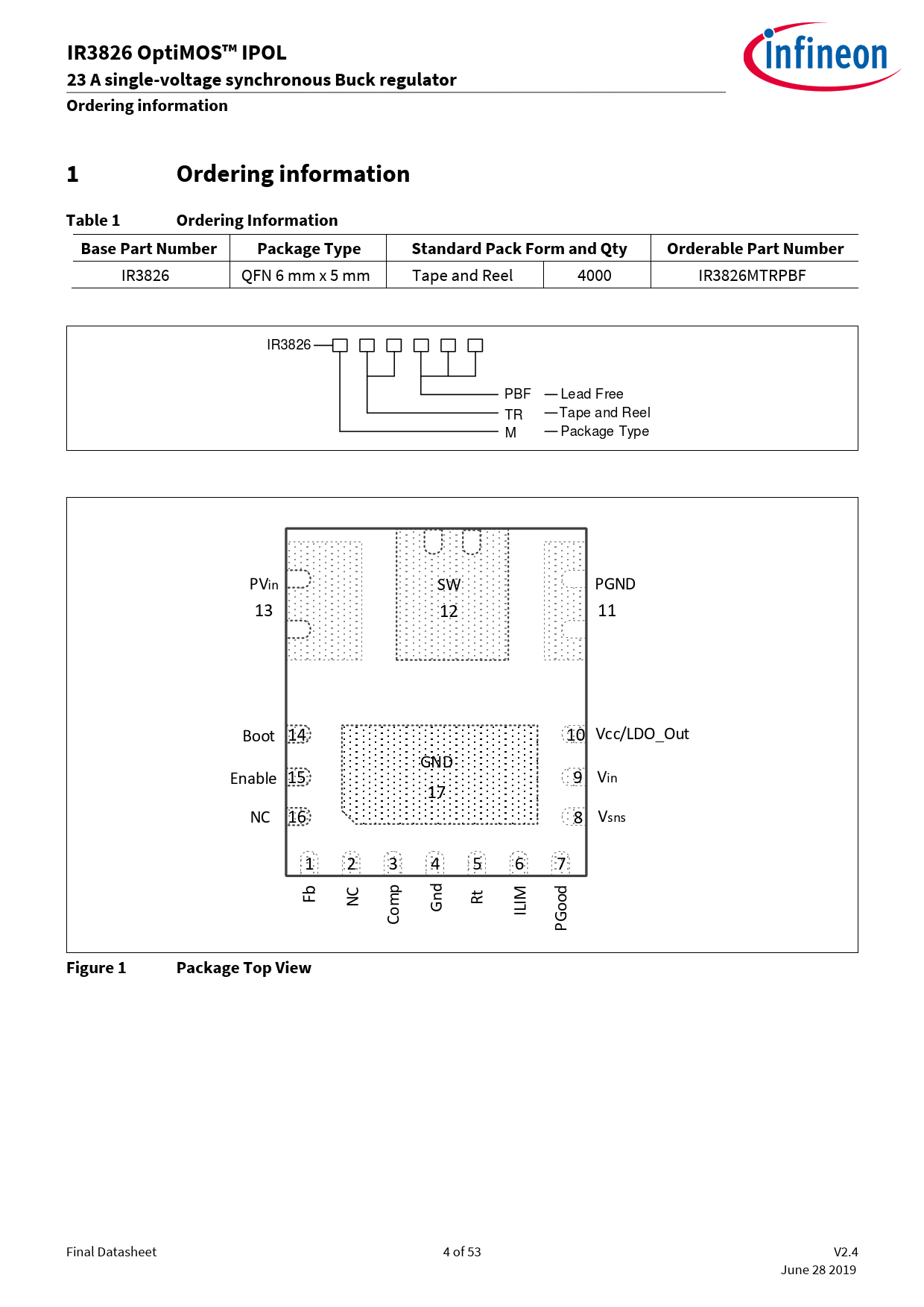

IR3826 QFN 6 mm x 5 mm Tape and Reel 4000 IR3826MTRPBF IR3826 PBF Lead Free TR Tape and Reel M Package Type PVin SW PGND 13 12 11 Boot 14 10 Vcc/LDO_Out GND Enable 15 9 Vin 17 NC 16 8 Vsns 1 2 3 4 5 6 7 p d d Fb NC m n Rt MI o G L o I G Co P
Figure 1 Package Top View
Final Datasheet 4 of 53 V2.4 June 28 2019 Document Outline Revision History Trademarks Disclaimer
IR3826 QFN 6 mm x 5 mm Tape and Reel 4000 IR3826MTRPBF IR3826 PBF Lead Free TR Tape and Reel M Package Type PVin SW PGND 13 12 11 Boot 14 10 Vcc/LDO_Out GND Enable 15 9 Vin 17 NC 16 8 Vsns 1 2 3 4 5 6 7 p d d Fb NC m n Rt MI o G L o I G Co P
Figure 1 Package Top View
Final Datasheet 4 of 53 V2.4 June 28 2019 Document Outline Revision History Trademarks Disclaimer
