HCPL-2201, HCPL-2202, HCPL-2211, HCPL-2212, HCPL-2231, HCPL-2232, HCPL-0201, HCPL-0211, HCNW2201, HCNW2211
Data Sheet Very High CMR, Wide VCC Logic Gate Optocouplers

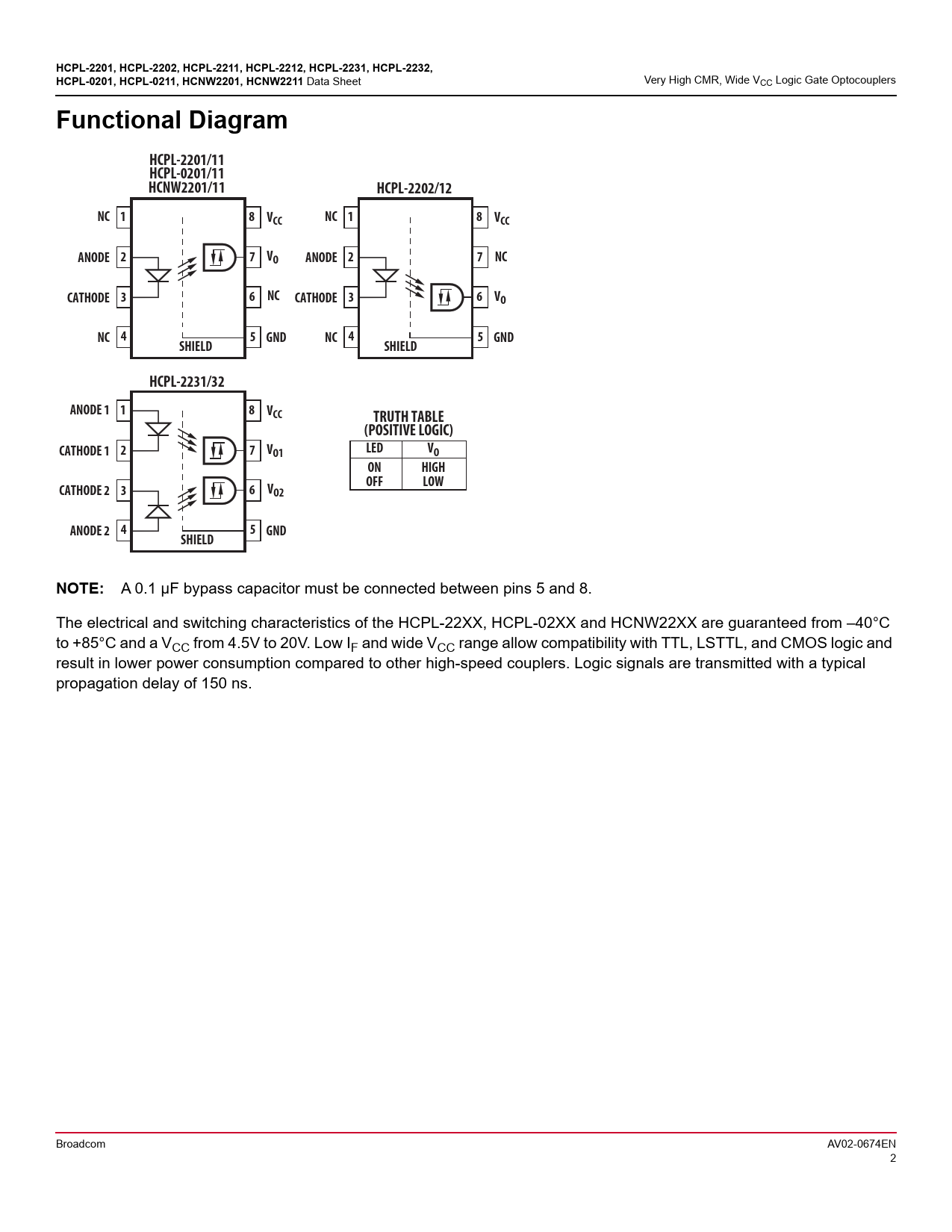

Functional Diagram HCPL-2201/11 HCPL-0201/11 HCNW2201/11 HCPL-2202/12 NC 1 8 VCC NC 1 8 VCC ANODE 2 7 VO ANODE 2 7 NC CATHODE 3 6 NC CATHODE 3 6 VO NC 4 5 GND NC 4 5 GND SHIELD SHIELD HCPL-2231/32 ANODE 1 1 8 VCC TRUTH TABLE (POSITIVE LOGIC) CATHODE 1 2 7 VO1 LED VO ON HIGH OFF LOW CATHODE 2 3 6 VO2 ANODE 2 4 5 GND SHIELD NOTE:
A 0.1 µF bypass capacitor must be connected between pins 5 and 8. The electrical and switching characteristics of the HCPL-22XX, HCPL-02XX and HCNW22XX are guaranteed from –40°C to +85°C and a VCC from 4.5V to 20V. Low IF and wide VCC range allow compatibility with TTL, LSTTL, and CMOS logic and result in lower power consumption compared to other high-speed couplers. Logic signals are transmitted with a typical propagation delay of 150 ns. Broadcom AV02-0674EN 2 Document Outline Description Features Applications Functional Diagram Selection Guide Schematic Ordering Information Package Outline Drawings 8-Pin DIP Package (HCPL-2201/02/11/12/31/32) 8-Pin DIP Package with Gull Wing Surface Mount Option 300 (HCPL-2201/02/11/12/31/32) Small-Outline SO-8 Package (HCPL-0201/11) 8-Pin Widebody DIP Package (HCNW2201/11) 8-Pin Widebody DIP Package with Gull Wing Surface Mount Option 300 (HCNW2201/11) Solder Reflow Profile Regulatory Information Insulation and Safety Related Specifications IEC/EN/DIN EN 60747-5-5 Insulation Characteristics (Option 060) IEC/EN/DIN EN 60747-5-5 Insulation Characteristics (HCNW22xx Option 060 ONLY) Absolute Maximum Ratings Recommended Operating Conditions Electrical Specifications Switching Specifications (AC) Package Characteristics
