HCPL-2201, HCPL-2202, HCPL-2211, HCPL-2212, HCPL-2231, HCPL-2232, HCPL-0201, HCPL-0211, HCNW2201, HCNW2211
Data Sheet Very High CMR, Wide VCC Logic Gate Optocouplers

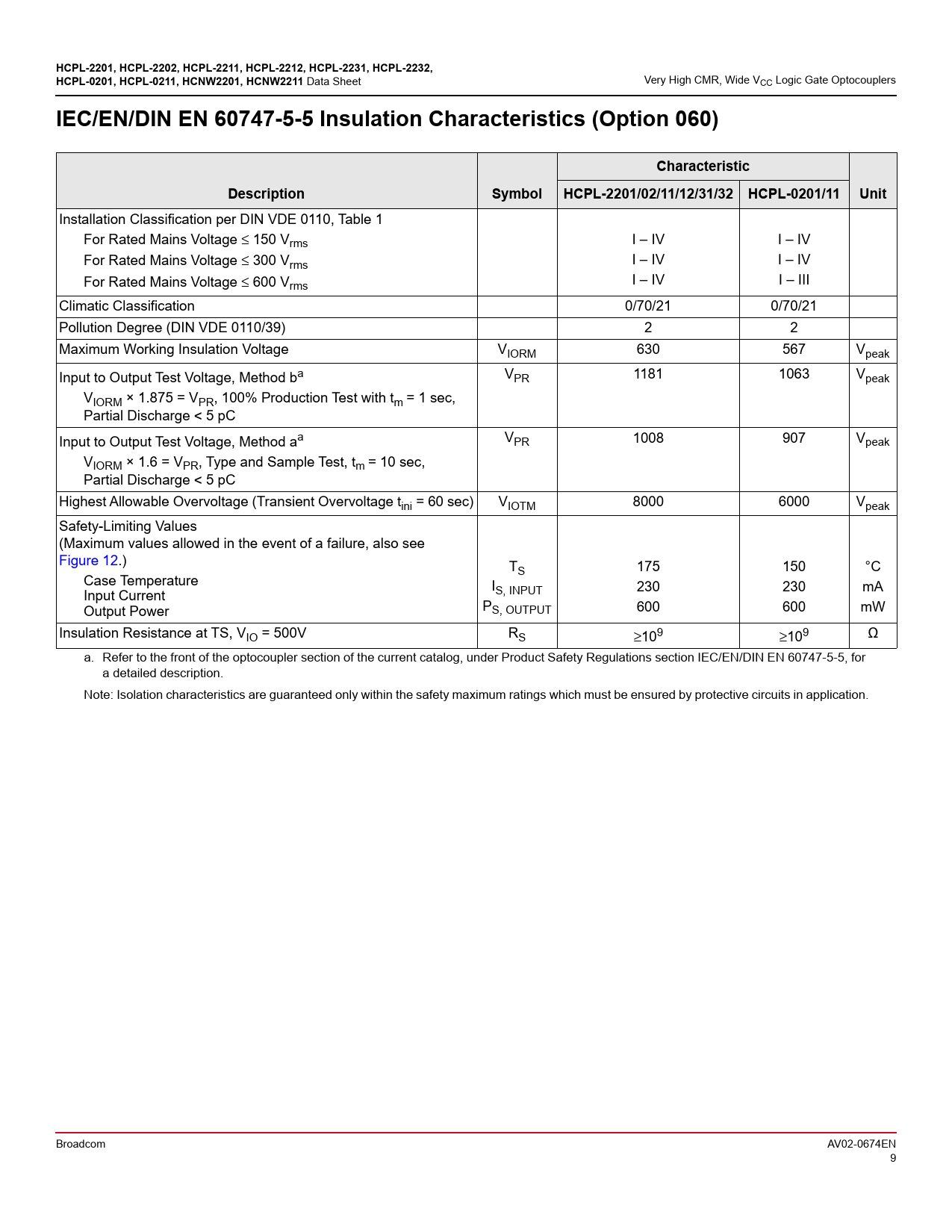

IEC/EN/DIN EN 60747-5-5 Insulation Characteristics (Option 060) Characteristic Description Symbol HCPL-2201/02/11/12/31/32 HCPL-0201/11 Unit
Installation Classification per DIN VDE 0110, Table 1 For Rated Mains Voltage ≤ 150 Vrms I – IV I – IV For Rated Mains Voltage ≤ 300 Vrms I – IV I – IV For Rated Mains Voltage ≤ 600 V I – IV I – III rms Climatic Classification 0/70/21 0/70/21 Pollution Degree (DIN VDE 0110/39) 2 2 Maximum Working Insulation Voltage VIORM 630 567 Vpeak Input to Output Test Voltage, Method ba VPR 1181 1063 Vpeak VIORM × 1.875 = VPR, 100% Production Test with tm = 1 sec, Partial Discharge < 5 pC Input to Output Test Voltage, Method aa VPR 1008 907 Vpeak VIORM × 1.6 = VPR, Type and Sample Test, tm = 10 sec, Partial Discharge < 5 pC Highest Allowable Overvoltage (Transient Overvoltage tini = 60 sec) VIOTM 8000 6000 Vpeak Safety-Limiting Values (Maximum values allowed in the event of a failure, also see Figure 12.) TS 175 150 °C Case Temperature I 230 230 mA Input Current S, INPUT Output Power PS, OUTPUT 600 600 mW Insulation Resistance at TS, VIO = 500V RS ≥109 ≥109 Ω a. Refer to the front of the optocoupler section of the current catalog, under Product Safety Regulations section IEC/EN/DIN EN 60747-5-5, for a detailed description. Note: Isolation characteristics are guaranteed only within the safety maximum ratings which must be ensured by protective circuits in application. Broadcom AV02-0674EN 9 Document Outline Description Features Applications Functional Diagram Selection Guide Schematic Ordering Information Package Outline Drawings 8-Pin DIP Package (HCPL-2201/02/11/12/31/32) 8-Pin DIP Package with Gull Wing Surface Mount Option 300 (HCPL-2201/02/11/12/31/32) Small-Outline SO-8 Package (HCPL-0201/11) 8-Pin Widebody DIP Package (HCNW2201/11) 8-Pin Widebody DIP Package with Gull Wing Surface Mount Option 300 (HCNW2201/11) Solder Reflow Profile Regulatory Information Insulation and Safety Related Specifications IEC/EN/DIN EN 60747-5-5 Insulation Characteristics (Option 060) IEC/EN/DIN EN 60747-5-5 Insulation Characteristics (HCNW22xx Option 060 ONLY) Absolute Maximum Ratings Recommended Operating Conditions Electrical Specifications Switching Specifications (AC) Package Characteristics
