Input / Output Equivalent Circuit
该数据表的模型线
文件文字版本
TB67S111PG

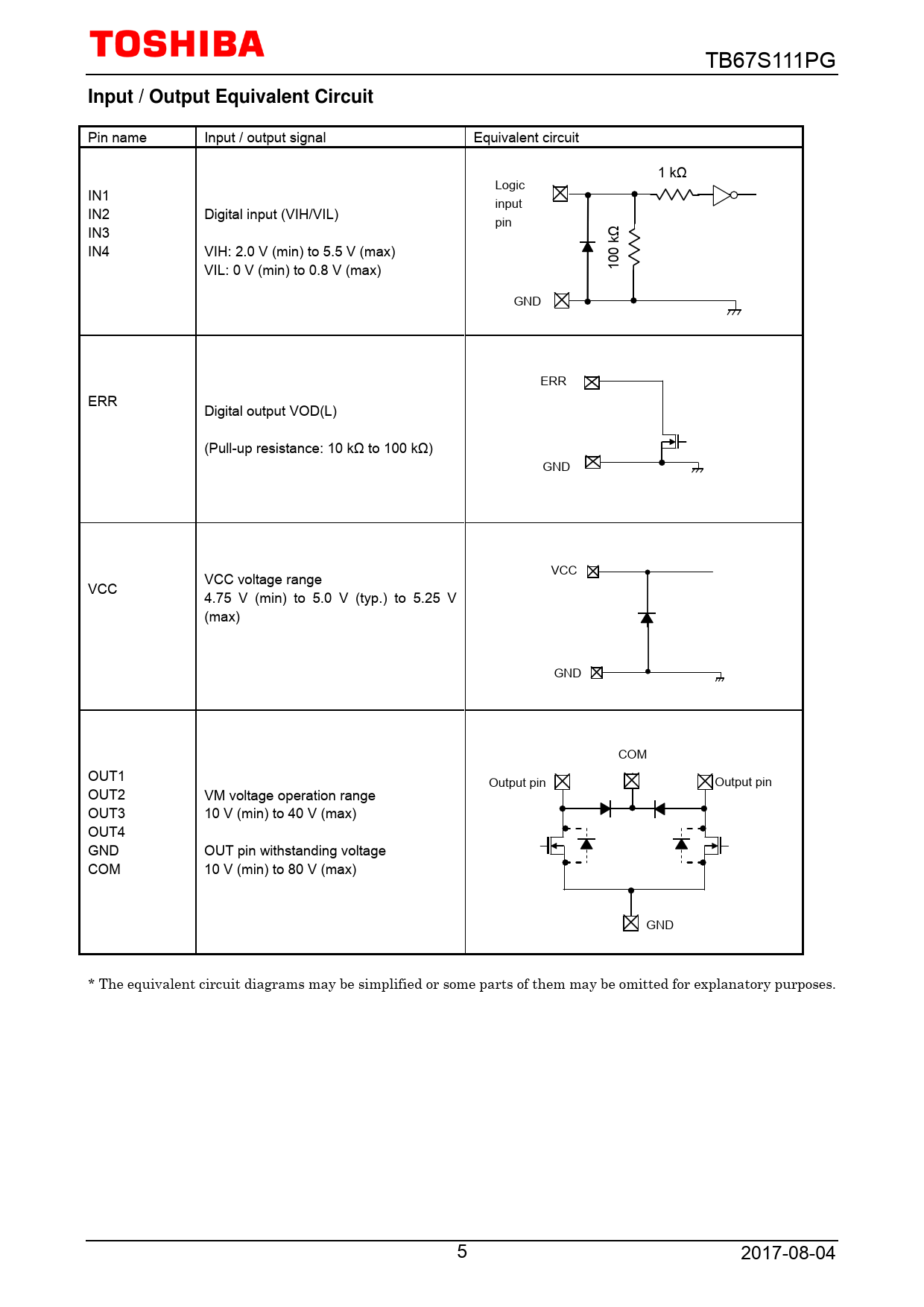

Input / Output Equivalent Circuit
Pin name Input / output signal Equivalent circuit 1 kΩ Logic IN1 input IN2 Digital input (VIH/VIL) pin IN3 IN4 VIH: 2.0 V (min) to 5.5 V (max) 0 kΩ VIL: 0 V (min) to 0.8 V (max) 10 GND ERR ERR Digital output VOD(L) (Pul -up resistance: 10 kΩ to 100 kΩ) GND VCC voltage range VCC VCC 4.75 V (min) to 5.0 V (typ.) to 5.25 V (max) GND COM OUT1 Output pin Output pin OUT2 VM voltage operation range OUT3 10 V (min) to 40 V (max) OUT4 GND OUT pin withstanding voltage COM 10 V (min) to 80 V (max) GND * The equivalent circuit diagrams may be simplified or some parts of them may be omitted for explanatory purposes. 5 2017-08-04
