Datasheet TB67S158FTG (Toshiba) - 10
| 制造商 | Toshiba |
| 描述 | Bi-CD Integrated Circuit Silicon Monolithic |
| 页数 / 页 | 32 / 10 — 6-1 ERR (output function of abnormal detection). ERR output. ERR logic. … |
| 文件格式/大小 | PDF / 1.3 Mb |
| 文件语言 | 英语 |
6-1 ERR (output function of abnormal detection). ERR output. ERR logic. [MOSFET for ERR]. ON: When abnormal detection. operaties
该数据表的模型线
文件文字版本
TB67S158FTG
6-1 ERR (output function of abnormal detection)

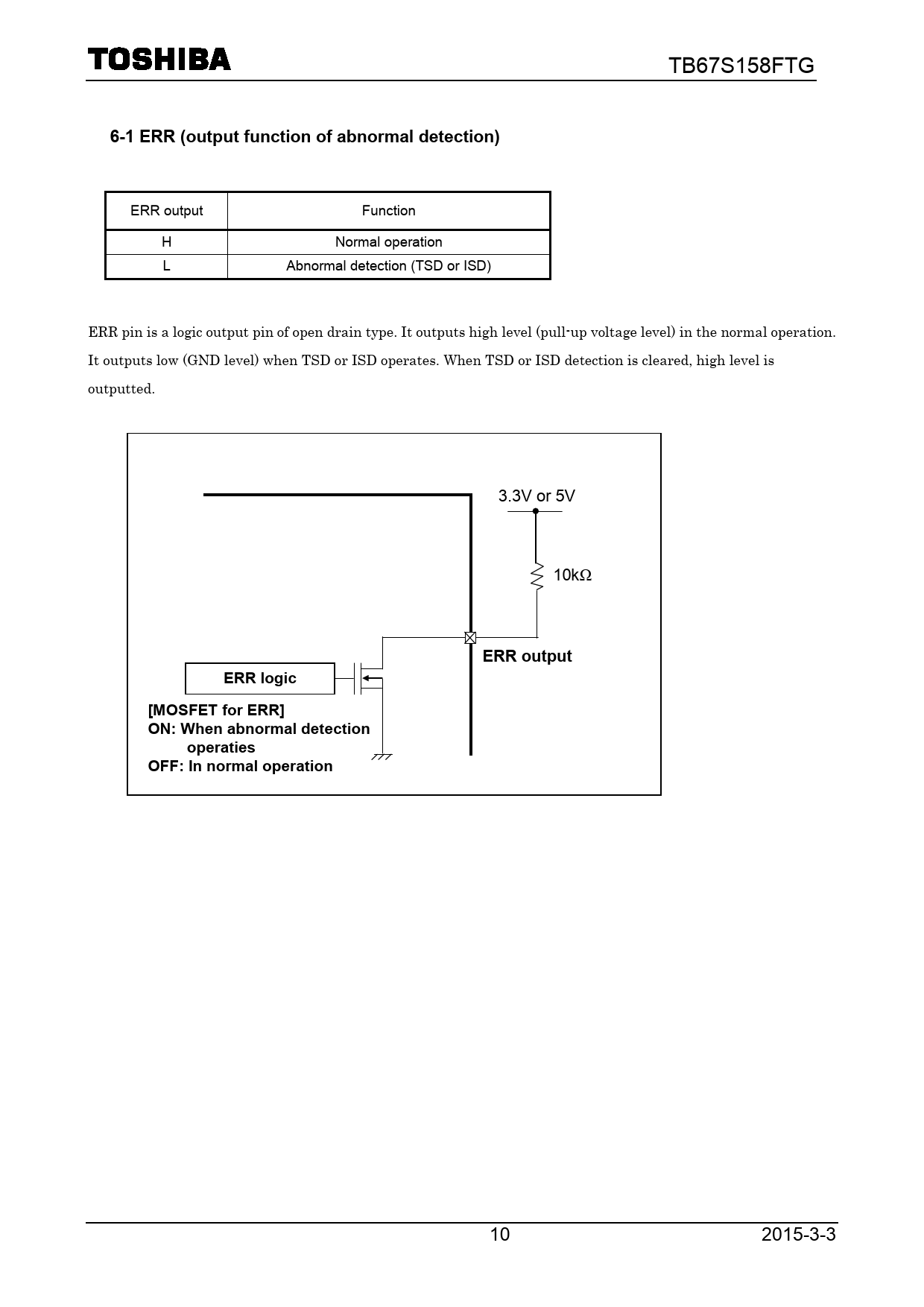

ERR output Function H Normal operation L Abnormal detection (TSD or ISD) ERR pin is a logic output pin of open drain type. It outputs high level (pull-up voltage level) in the normal operation. It outputs low (GND level) when TSD or ISD operates. When TSD or ISD detection is cleared, high level is outputted. 3.3V or 5V 10kΩ
ERR output ERR logic [MOSFET for ERR] ON: When abnormal detection operaties OFF: In normal operation
10 2015-3-3
6-1 ERR (output function of abnormal detection)
ERR output Function H Normal operation L Abnormal detection (TSD or ISD) ERR pin is a logic output pin of open drain type. It outputs high level (pull-up voltage level) in the normal operation. It outputs low (GND level) when TSD or ISD operates. When TSD or ISD detection is cleared, high level is outputted. 3.3V or 5V 10kΩ
ERR output ERR logic [MOSFET for ERR] ON: When abnormal detection operaties OFF: In normal operation
10 2015-3-3
