描述LC2MOS Signal Conditioning ADC with RTD Current Source
页数 / 页28 / 5 — AD7711A. TIMING CHARACTERISTICS1, 2 (DVDD = +5 V. 5%; AVDD = +5 V or +10 …
文件格式/大小PDF / 396 Kb
文件语言英语

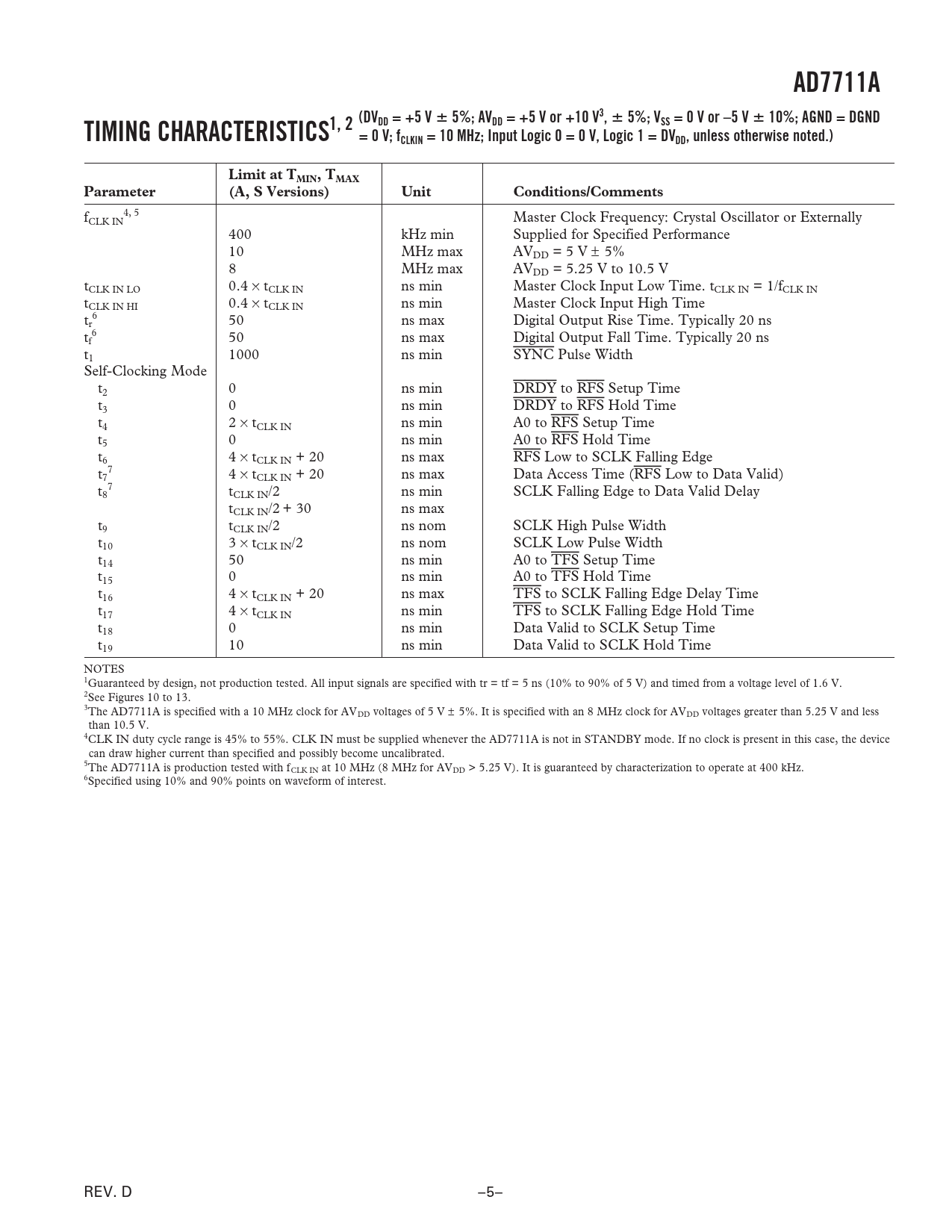

AD7711A. TIMING CHARACTERISTICS1, 2 (DVDD = +5 V. 5%; AVDD = +5 V or +10 V3,. 5%; VSS = 0 V or –5 V. 10%; AGND = DGND

AD7711A TIMING CHARACTERISTICS1, 2 (DVDD = +5 V 5%; AVDD = +5 V or +10 V3, 5%; VSS = 0 V or –5 V 10%; AGND = DGND

该数据表的模型线

文件文字版本

AD7711A TIMING CHARACTERISTICS1, 2 (DVDD = +5 V
6
5%; AVDD = +5 V or +10 V3,
6
5%; VSS = 0 V or –5 V
6
10%; AGND = DGND = 0 V; fCLKIN = 10 MHz; Input Logic 0 = 0 V, Logic 1 = DVDD, unless otherwise noted.) Limit at TMIN, TMAX Parameter (A, S Versions) Unit Conditions/Comments
f 4, 5 CLK IN Master Clock Frequency: Crystal Oscillator or Externally 400 kHz min Supplied for Specified Performance 10 MHz max AV
