TSSP940..
www.vishay.com Vishay Semiconductors
PACKAGE DIMENSIONS

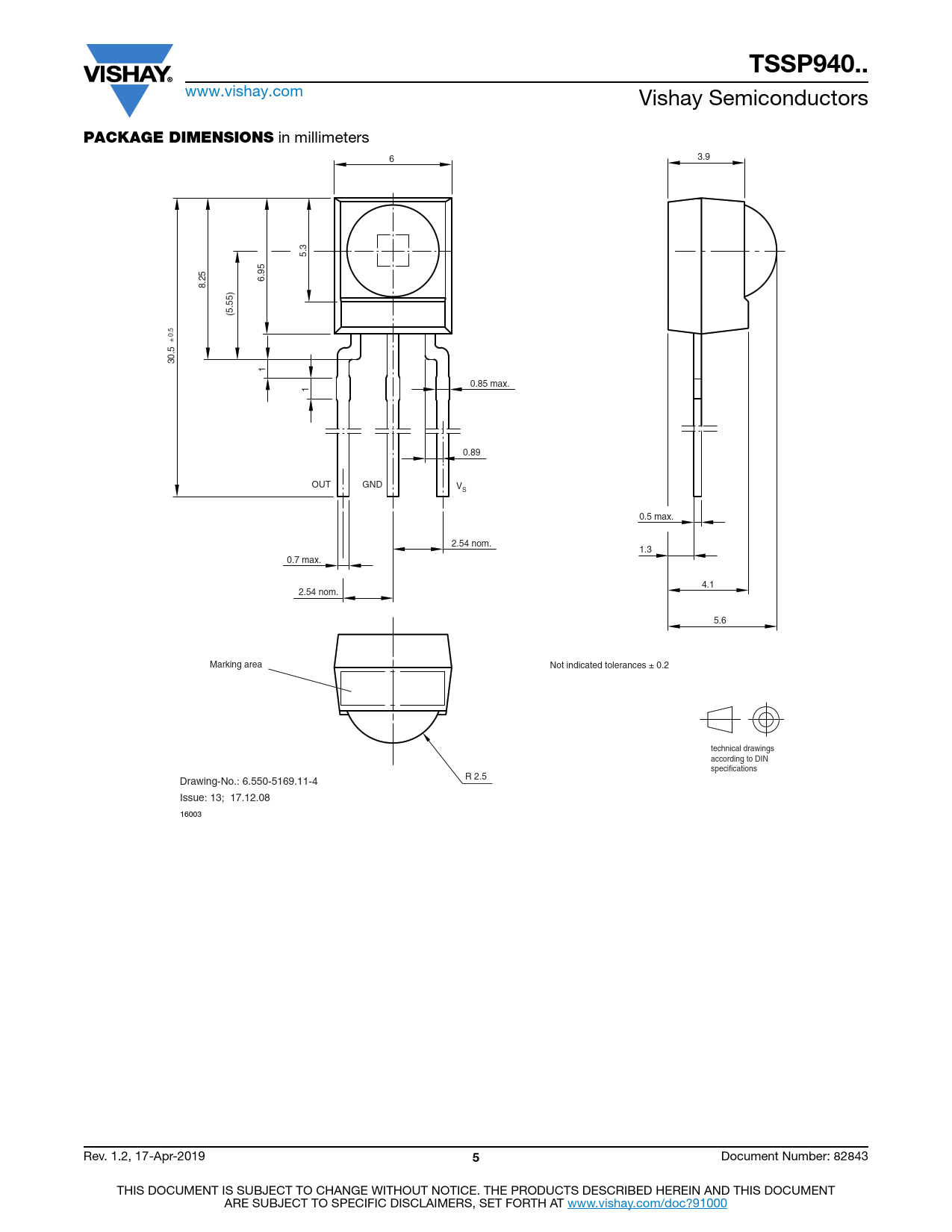

in millimeters 3.9 6 5.3 6.95 8.25 (5.55) ± 0.5 30.5 1 0.85 max. 1 0.89 OUT GND VS 0.5 max. 2.54 nom. 1.3 0.7 max. 4.1 2.54 nom. 5.6 Marking area Not indicated tolerances ± 0.2 technical drawings according to DIN specifications Drawing-No.: 6.550-5169.11-4 R 2.5 Issue: 13; 17.12.08 16003 Rev. 1.2, 17-Apr-2019
5
Document Number: 82843 THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
