Databrief STHV64SW (STMicroelectronics)
| 制造商 | STMicroelectronics |
| 描述 | 64-ch HV MUX 200 V, (from -200V to 0V or from 0V to 200V or from -100V to +100V), Low Harmonic Distortion, High Voltage Analog Independent Switches |
| 页数 / 页 | 3 / 1 — STHV64SW. Features. Applications. Product status link. Product summary. … |
| 文件格式/大小 | PDF / 2.6 Mb |
| 文件语言 | 英语 |
STHV64SW. Features. Applications. Product status link. Product summary. Order code. Package. Description. Packing. DB3874. Rev 1. March 2019
该数据表的模型线
文件文字版本

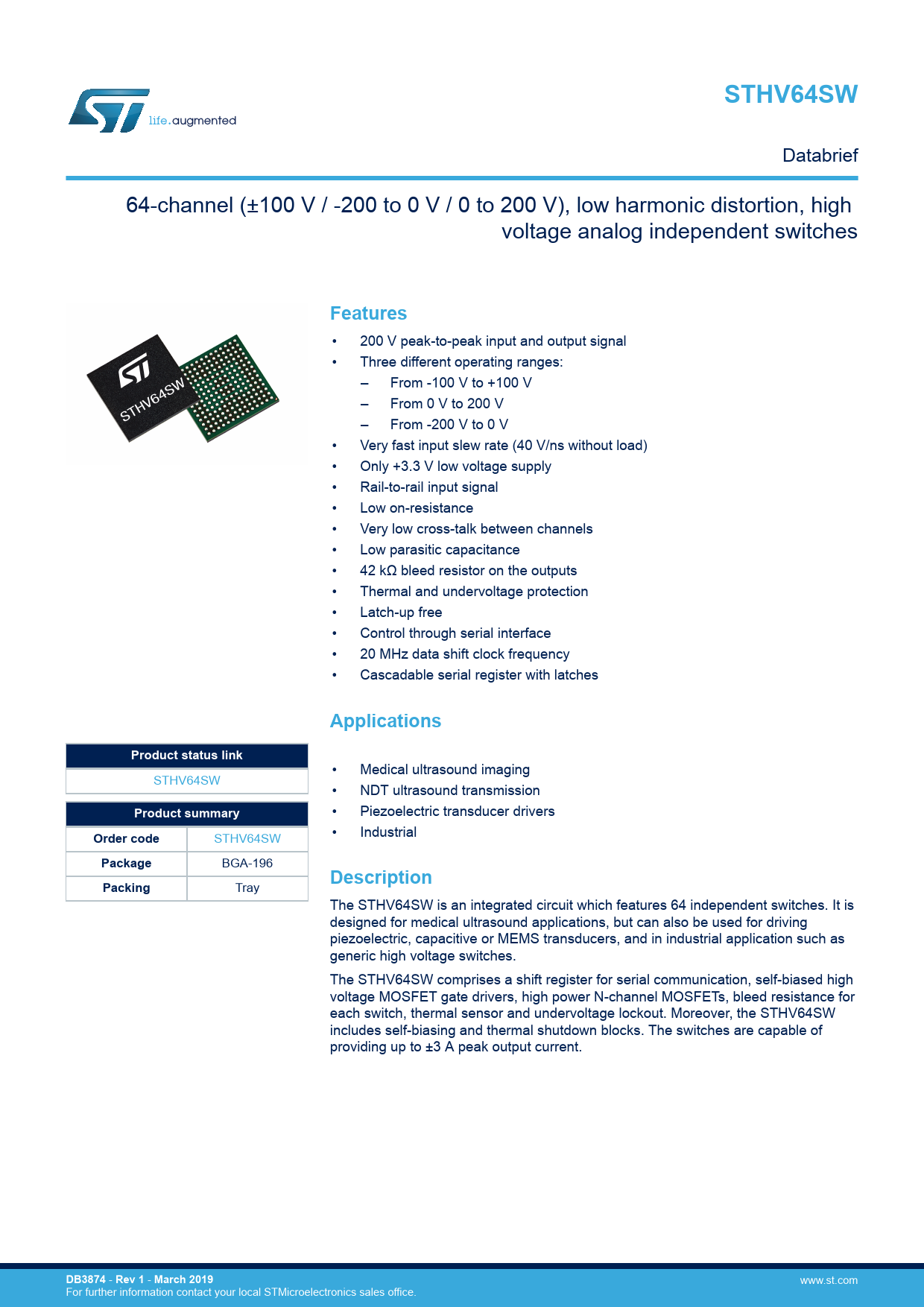

STHV64SW
Databrief 64-channel (±100 V / -200 to 0 V / 0 to 200 V), low harmonic distortion, high voltage analog independent switches
Features
• 200 V peak-to-peak input and output signal • Three different operating ranges: – From -100 V to +100 V – From 0 V to 200 V – From -200 V to 0 V • Very fast input slew rate (40 V/ns without load) • Only +3.3 V low voltage supply • Rail-to-rail input signal • Low on-resistance • Very low cross-talk between channels • Low parasitic capacitance • 42 kΩ bleed resistor on the outputs • Thermal and undervoltage protection • Latch-up free • Control through serial interface • 20 MHz data shift clock frequency • Cascadable serial register with latches
Applications Product status link
• Medical ultrasound imaging STHV64SW • NDT ultrasound transmission
Product summary
• Piezoelectric transducer drivers • Industrial
Order code
STHV64SW
Package
BGA-196
Description Packing
Tray The STHV64SW is an integrated circuit which features 64 independent switches. It is designed for medical ultrasound applications, but can also be used for driving piezoelectric, capacitive or MEMS transducers, and in industrial application such as generic high voltage switches. The STHV64SW comprises a shift register for serial communication, self-biased high voltage MOSFET gate drivers, high power N-channel MOSFETs, bleed resistance for each switch, thermal sensor and undervoltage lockout. Moreover, the STHV64SW includes self-biasing and thermal shutdown blocks. The switches are capable of providing up to ±3 A peak output current.
DB3874
-
Rev 1
-
March 2019
www.st.com For further information contact your local STMicroelectronics sales office.
