Datasheet BCV61 (Infineon) - 4
| 制造商 | Infineon |
| 描述 | NPN Silicon Double Transistor |
| 页数 / 页 | 7 / 4 — BCV61. Test circuit for current matching. Characteristic for … |
| 修订版 | 01_01 |
| 文件格式/大小 | PDF / 544 Kb |
| 文件语言 | 英语 |
BCV61. Test circuit for current matching. Characteristic for determination of V. CE1 at specified R. E range with I
该数据表的模型线
文件文字版本

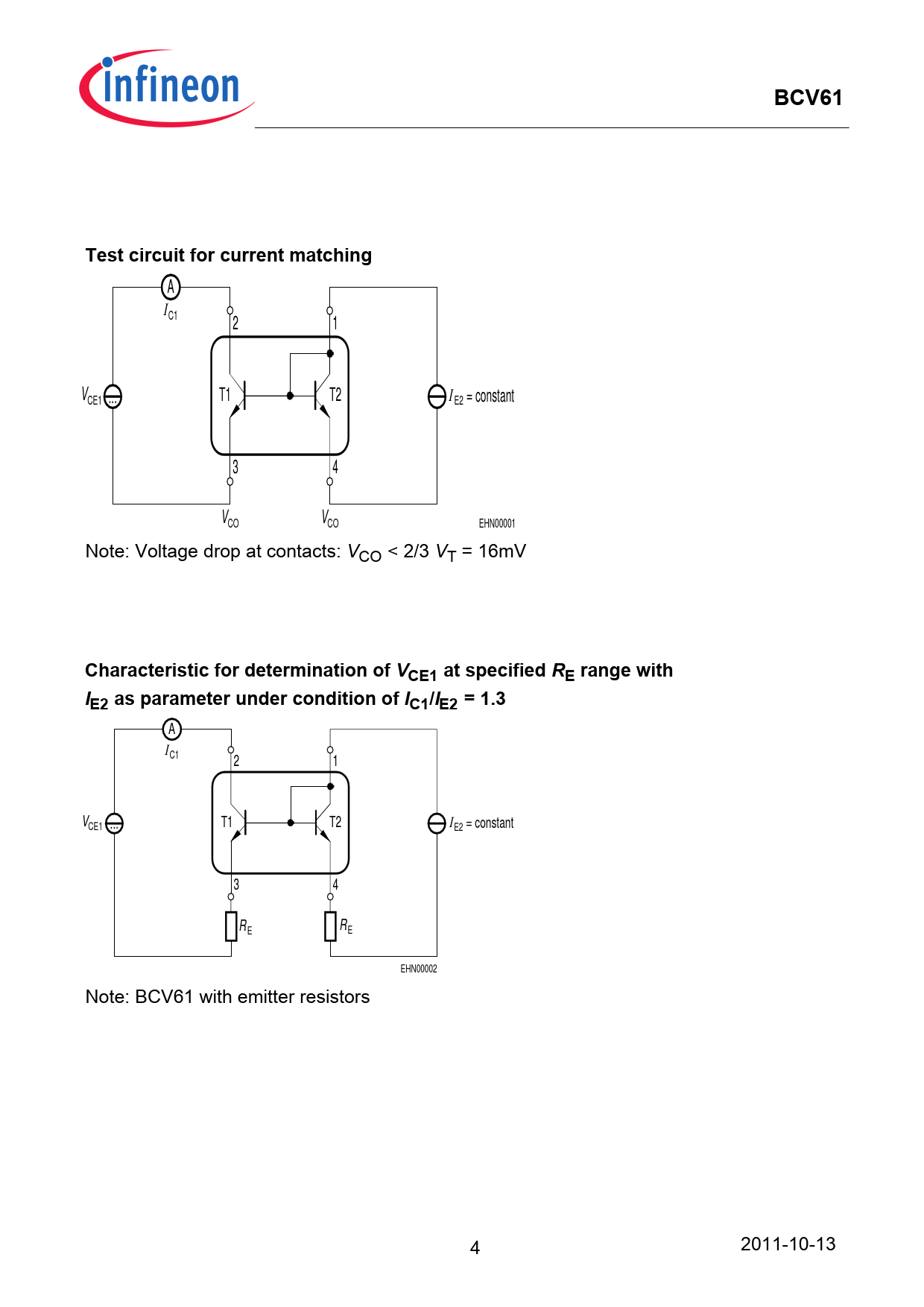

BCV61 Test circuit for current matching
A ΙC1 2 1 V Ι CE1 ... T1 T2 E2 = constant 3 4 CO V CO V EHN00001 Note: Voltage drop at contacts: VCO < 2/3 VT = 16mV
Characteristic for determination of V CE1 at specified R E range with I E2 as parameter under condition of I C1/I E2 = 1.3
A ΙC1 2 1 V Ι CE1 ... T1 T2 E2 = constant 3 4 R R E E EHN00002 Note: BCV61 with emitter resistors 4 2011-10-13
A ΙC1 2 1 V Ι CE1 ... T1 T2 E2 = constant 3 4 CO V CO V EHN00001 Note: Voltage drop at contacts: VCO < 2/3 VT = 16mV
Characteristic for determination of V CE1 at specified R E range with I E2 as parameter under condition of I C1/I E2 = 1.3
A ΙC1 2 1 V Ι CE1 ... T1 T2 E2 = constant 3 4 R R E E EHN00002 Note: BCV61 with emitter resistors 4 2011-10-13
