Datasheet SPW2430HR5H-B (Knowles) - 5
| 制造商 | Knowles |
| 描述 | Top Port SiSonic Microphone |
| 页数 / 页 | 11 / 5 — 5. MECHANICAL SPECIFICATIONS. Item. Dimension. Tolerance. Pin #. Pin … |
| 文件格式/大小 | PDF / 784 Kb |
| 文件语言 | 英语 |
5. MECHANICAL SPECIFICATIONS. Item. Dimension. Tolerance. Pin #. Pin Name. Type. Description
该数据表的模型线
文件文字版本
SPW2430HR5H-B

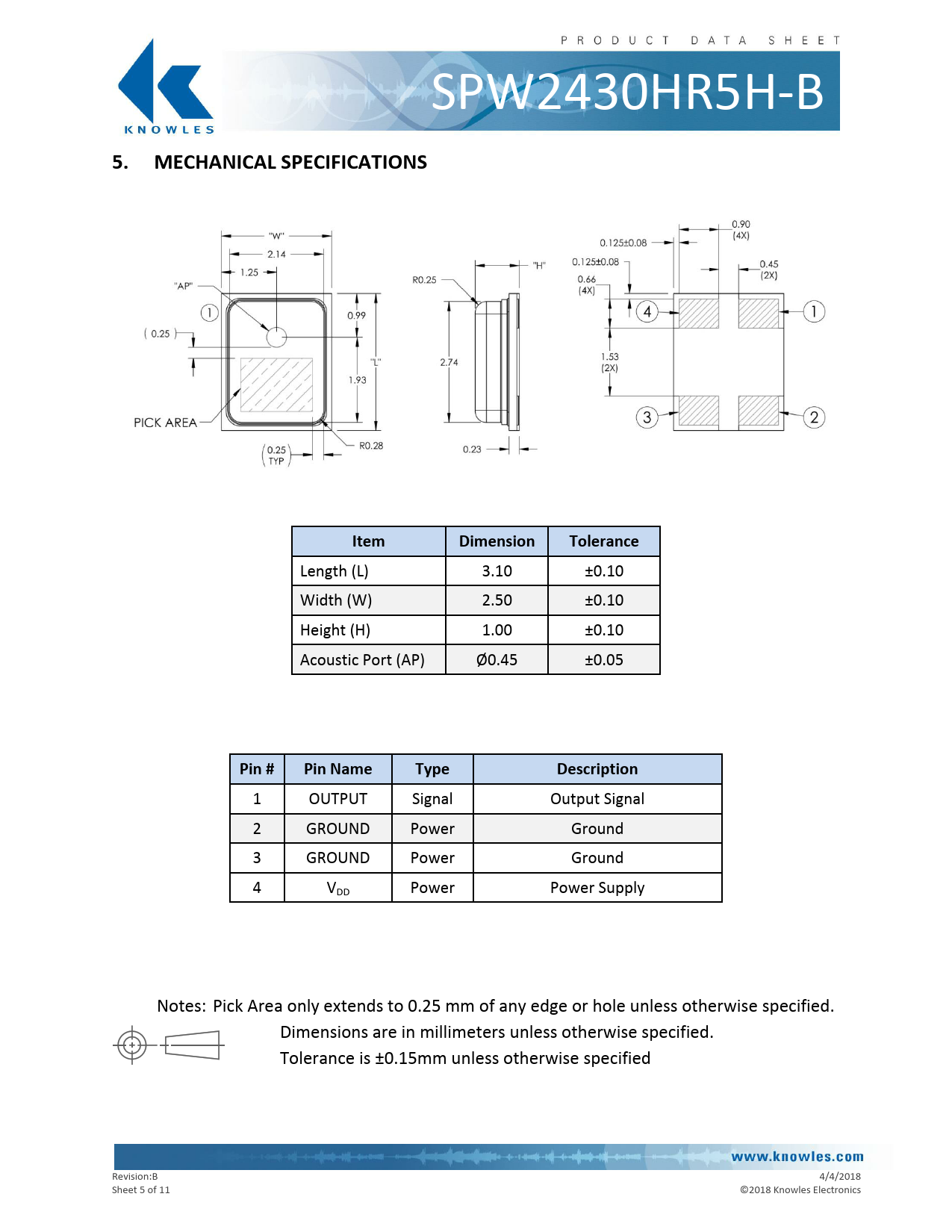

5. MECHANICAL SPECIFICATIONS Item Dimension Tolerance
Length (L) 3.10 ±0.10 Width (W) 2.50 ±0.10 Height (H) 1.00 ±0.10 Acoustic Port (AP) Ø 0.45 ±0.05
Pin # Pin Name Type Description
1 OUTPUT Signal Output Signal 2 GROUND Power Ground 3 GROUND Power Ground 4 VDD Power Power Supply Notes: Pick Area only extends to 0.25 mm of any edge or hole unless otherwise specified. Dimensions are in millimeters unless otherwise specified. Tolerance is ±0.15mm unless otherwise specified Revision:B 4/4/2018 Sheet 5 of 11 © 2018 Knowles Electronics
