PI4ULS5V108Q. Dynamic Characteristics. CL = 50 pF. CL = 30 pF. CL = 15 pF. Symbol. Parameter. Conditions. Unit. Typ. Max
该数据表的模型线
文件文字版本

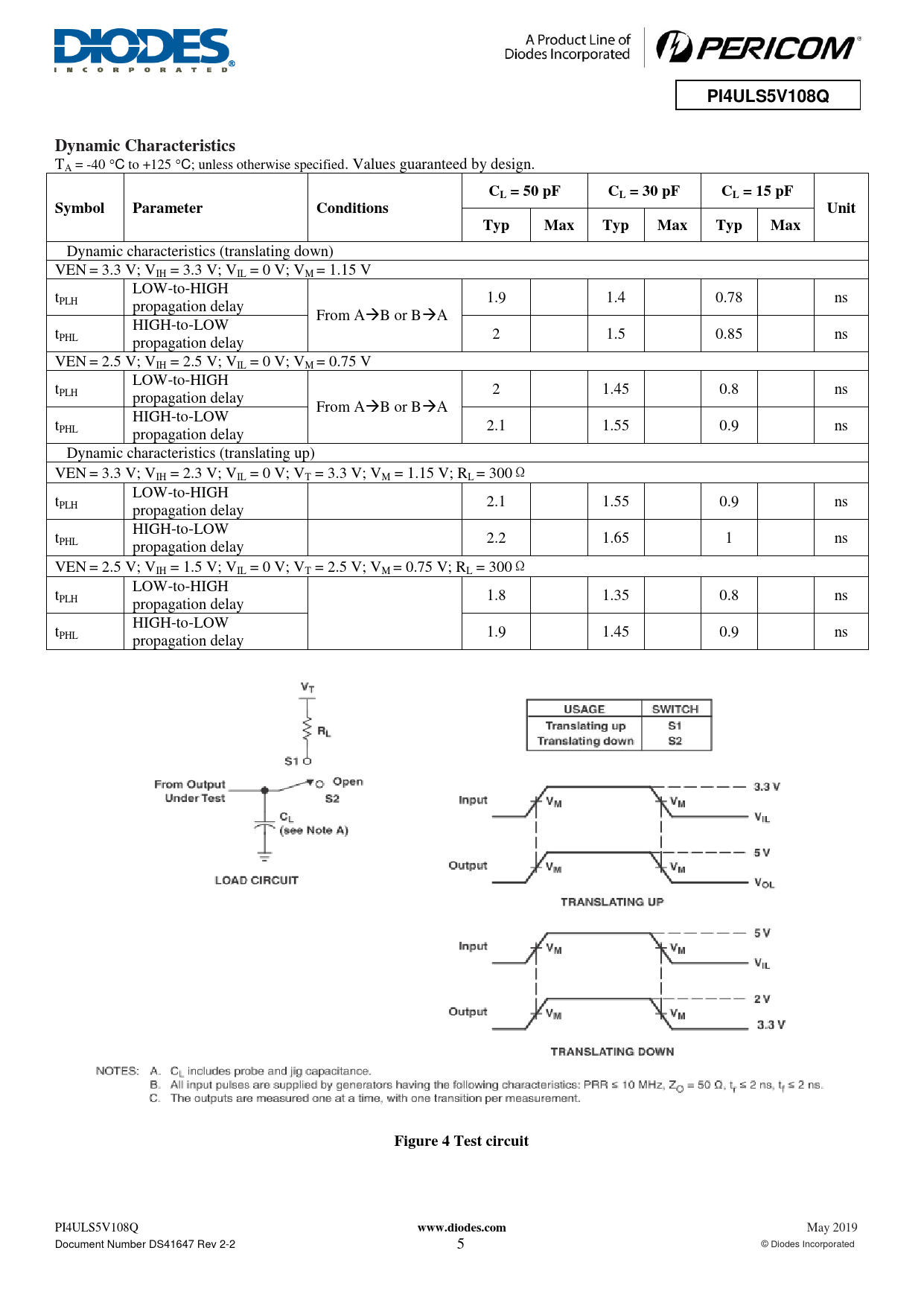

PI4ULS5V108Q Dynamic Characteristics
TA = -40 C to +125 C; unless otherwise specified. Values guaranteed by design.
CL = 50 pF CL = 30 pF CL = 15 pF Symbol Parameter Conditions Unit Typ Max Typ Max Typ Max
Dynamic characteristics (translating down) VEN = 3.3 V; VIH = 3.3 V; VIL = 0 V; VM = 1.15 V LOW-to-HIGH tPLH 1.9 1.4 0.78 ns propagation delay From AB or BA HIGH-to-LOW tPHL 2 1.5 0.85 ns propagation delay VEN = 2.5 V; VIH = 2.5 V; VIL = 0 V; VM = 0.75 V LOW-to-HIGH tPLH 2 1.45 0.8 ns propagation delay From AB or BA HIGH-to-LOW tPHL 2.1 1.55 0.9 ns propagation delay Dynamic characteristics (translating up) VEN = 3.3 V; VIH = 2.3 V; VIL = 0 V; VT = 3.3 V; VM = 1.15 V; RL = 300Ω LOW-to-HIGH tPLH 2.1 1.55 0.9 ns propagation delay HIGH-to-LOW tPHL 2.2 1.65 1 ns propagation delay VEN = 2.5 V; VIH = 1.5 V; VIL = 0 V; VT = 2.5 V; VM = 0.75 V; RL = 300Ω LOW-to-HIGH tPLH 1.8 1.35 0.8 ns propagation delay HIGH-to-LOW tPHL 1.9 1.45 0.9 ns propagation delay
Figure 4 Test circuit
PI4ULS5V108Q
www.diodes.com
May 2019 Document Number DS41647 Rev 2-2 5 © Diodes Incorporated
TA = -40 C to +125 C; unless otherwise specified. Values guaranteed by design.
CL = 50 pF CL = 30 pF CL = 15 pF Symbol Parameter Conditions Unit Typ Max Typ Max Typ Max
Dynamic characteristics (translating down) VEN = 3.3 V; VIH = 3.3 V; VIL = 0 V; VM = 1.15 V LOW-to-HIGH tPLH 1.9 1.4 0.78 ns propagation delay From AB or BA HIGH-to-LOW tPHL 2 1.5 0.85 ns propagation delay VEN = 2.5 V; VIH = 2.5 V; VIL = 0 V; VM = 0.75 V LOW-to-HIGH tPLH 2 1.45 0.8 ns propagation delay From AB or BA HIGH-to-LOW tPHL 2.1 1.55 0.9 ns propagation delay Dynamic characteristics (translating up) VEN = 3.3 V; VIH = 2.3 V; VIL = 0 V; VT = 3.3 V; VM = 1.15 V; RL = 300Ω LOW-to-HIGH tPLH 2.1 1.55 0.9 ns propagation delay HIGH-to-LOW tPHL 2.2 1.65 1 ns propagation delay VEN = 2.5 V; VIH = 1.5 V; VIL = 0 V; VT = 2.5 V; VM = 0.75 V; RL = 300Ω LOW-to-HIGH tPLH 1.8 1.35 0.8 ns propagation delay HIGH-to-LOW tPHL 1.9 1.45 0.9 ns propagation delay
Figure 4 Test circuit
PI4ULS5V108Q
www.diodes.com
May 2019 Document Number DS41647 Rev 2-2 5 © Diodes Incorporated
