Datasheet AP1042 (Asahi Kasei Microdevices)
| 制造商 | Asahi Kasei Microdevices |
| 描述 | 32V 1ch H-Bridge Motor Driver IC |
| 页数 / 页 | 18 / 1 — AP1042. 32V 1ch H-Bridge Motor Driver IC. 1. General Description. 2. … |
| 文件格式/大小 | PDF / 864 Kb |
| 文件语言 | 英语 |
AP1042. 32V 1ch H-Bridge Motor Driver IC. 1. General Description. 2. Features
该数据表的模型线
文件文字版本
[AP1042]

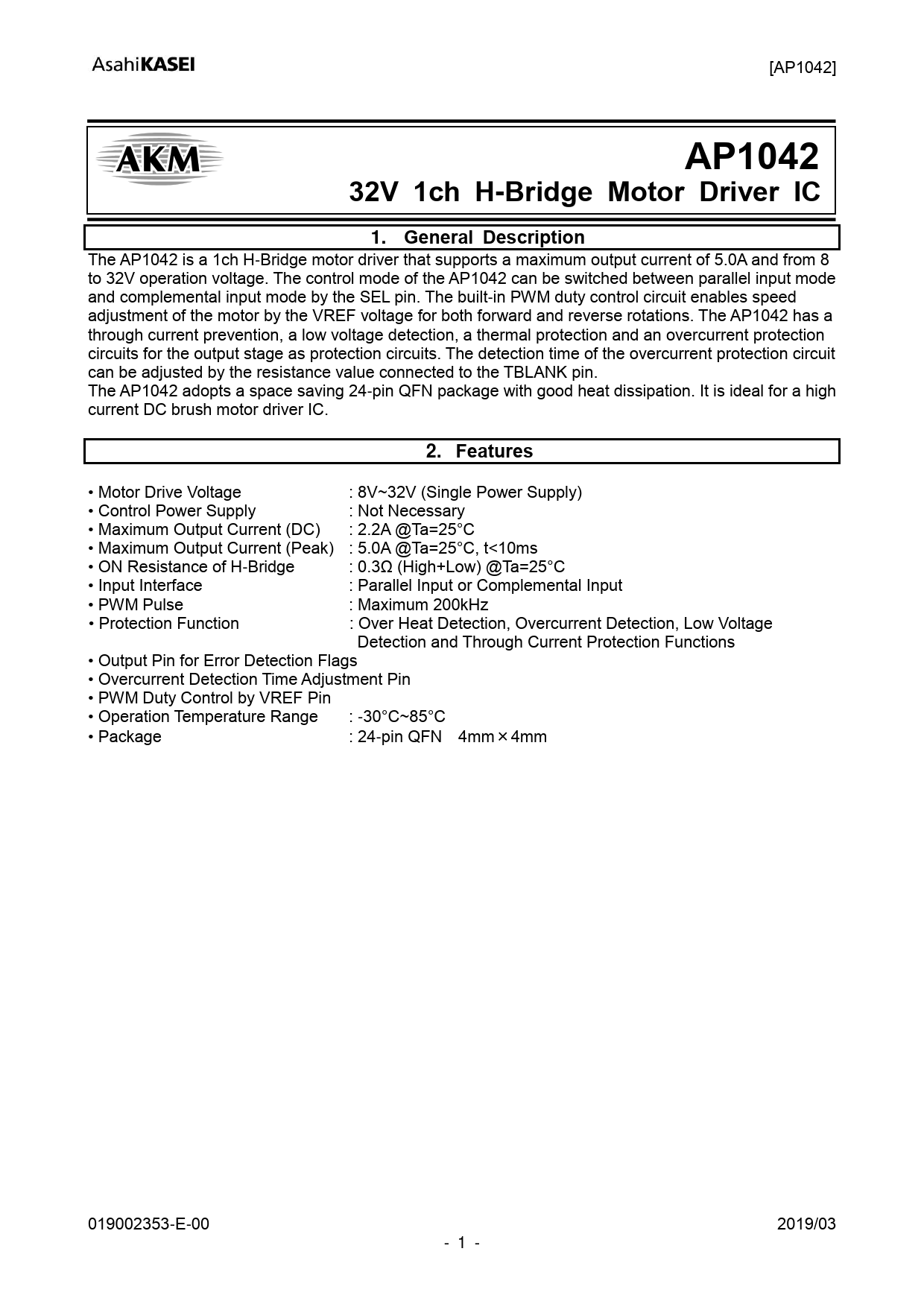

AP1042 32V 1ch H-Bridge Motor Driver IC 1. General Description
The AP1042 is a 1ch H-Bridge motor driver that supports a maximum output current of 5.0A and from 8 to 32V operation voltage. The control mode of the AP1042 can be switched between parallel input mode and complemental input mode by the SEL pin. The built-in PWM duty control circuit enables speed adjustment of the motor by the VREF voltage for both forward and reverse rotations. The AP1042 has a through current prevention, a low voltage detection, a thermal protection and an overcurrent protection circuits for the output stage as protection circuits. The detection time of the overcurrent protection circuit can be adjusted by the resistance value connected to the TBLANK pin. The AP1042 adopts a space saving 24-pin QFN package with good heat dissipation. It is ideal for a high current DC brush motor driver IC.
2. Features
• Motor Drive Voltage : 8V~32V (Single Power Supply) • Control Power Supply : Not Necessary • Maximum Output Current (DC) : 2.2A @Ta=25°C • Maximum Output Current (Peak) : 5.0A @Ta=25°C, t<10ms • ON Resistance of H-Bridge : 0.3Ω (High+Low) @Ta=25°C • Input Interface : Parallel Input or Complemental Input • PWM Pulse : Maximum 200kHz • Protection Function : Over Heat Detection, Overcurrent Detection, Low Voltage Detection and Through Current Protection Functions • Output Pin for Error Detection Flags • Overcurrent Detection Time Adjustment Pin • PWM Duty Control by VREF Pin • Operation Temperature Range : -30°C~85°C • Package : 24-pin QFN 4mm×4mm 019002353-E-00 2019/03 - 1 - Document Outline 1. General Description 2. Features 3. Table of Contents 4. Block Diagram 5. Pin Configulations and Functions 5.1. Pin Layout 5.2. Pin Functions 6. Absolute Maximum Ratings 7. Recommended Operation Conditions 8. Electric Characteristics 9. Functional Descriptions 9.1. Control Logic 9.2. PWM Duty Control 9.3. Protection Functions 10. Recommended External Circuit 11. Package 11.1. Outline Dimensions 11.2. Land Pattern 11.3. Marking 12. Ordering Guide 13. Revision History IMPORTANT NOTICE
AP1042 32V 1ch H-Bridge Motor Driver IC 1. General Description
The AP1042 is a 1ch H-Bridge motor driver that supports a maximum output current of 5.0A and from 8 to 32V operation voltage. The control mode of the AP1042 can be switched between parallel input mode and complemental input mode by the SEL pin. The built-in PWM duty control circuit enables speed adjustment of the motor by the VREF voltage for both forward and reverse rotations. The AP1042 has a through current prevention, a low voltage detection, a thermal protection and an overcurrent protection circuits for the output stage as protection circuits. The detection time of the overcurrent protection circuit can be adjusted by the resistance value connected to the TBLANK pin. The AP1042 adopts a space saving 24-pin QFN package with good heat dissipation. It is ideal for a high current DC brush motor driver IC.
2. Features
• Motor Drive Voltage : 8V~32V (Single Power Supply) • Control Power Supply : Not Necessary • Maximum Output Current (DC) : 2.2A @Ta=25°C • Maximum Output Current (Peak) : 5.0A @Ta=25°C, t<10ms • ON Resistance of H-Bridge : 0.3Ω (High+Low) @Ta=25°C • Input Interface : Parallel Input or Complemental Input • PWM Pulse : Maximum 200kHz • Protection Function : Over Heat Detection, Overcurrent Detection, Low Voltage Detection and Through Current Protection Functions • Output Pin for Error Detection Flags • Overcurrent Detection Time Adjustment Pin • PWM Duty Control by VREF Pin • Operation Temperature Range : -30°C~85°C • Package : 24-pin QFN 4mm×4mm 019002353-E-00 2019/03 - 1 - Document Outline 1. General Description 2. Features 3. Table of Contents 4. Block Diagram 5. Pin Configulations and Functions 5.1. Pin Layout 5.2. Pin Functions 6. Absolute Maximum Ratings 7. Recommended Operation Conditions 8. Electric Characteristics 9. Functional Descriptions 9.1. Control Logic 9.2. PWM Duty Control 9.3. Protection Functions 10. Recommended External Circuit 11. Package 11.1. Outline Dimensions 11.2. Land Pattern 11.3. Marking 12. Ordering Guide 13. Revision History IMPORTANT NOTICE
