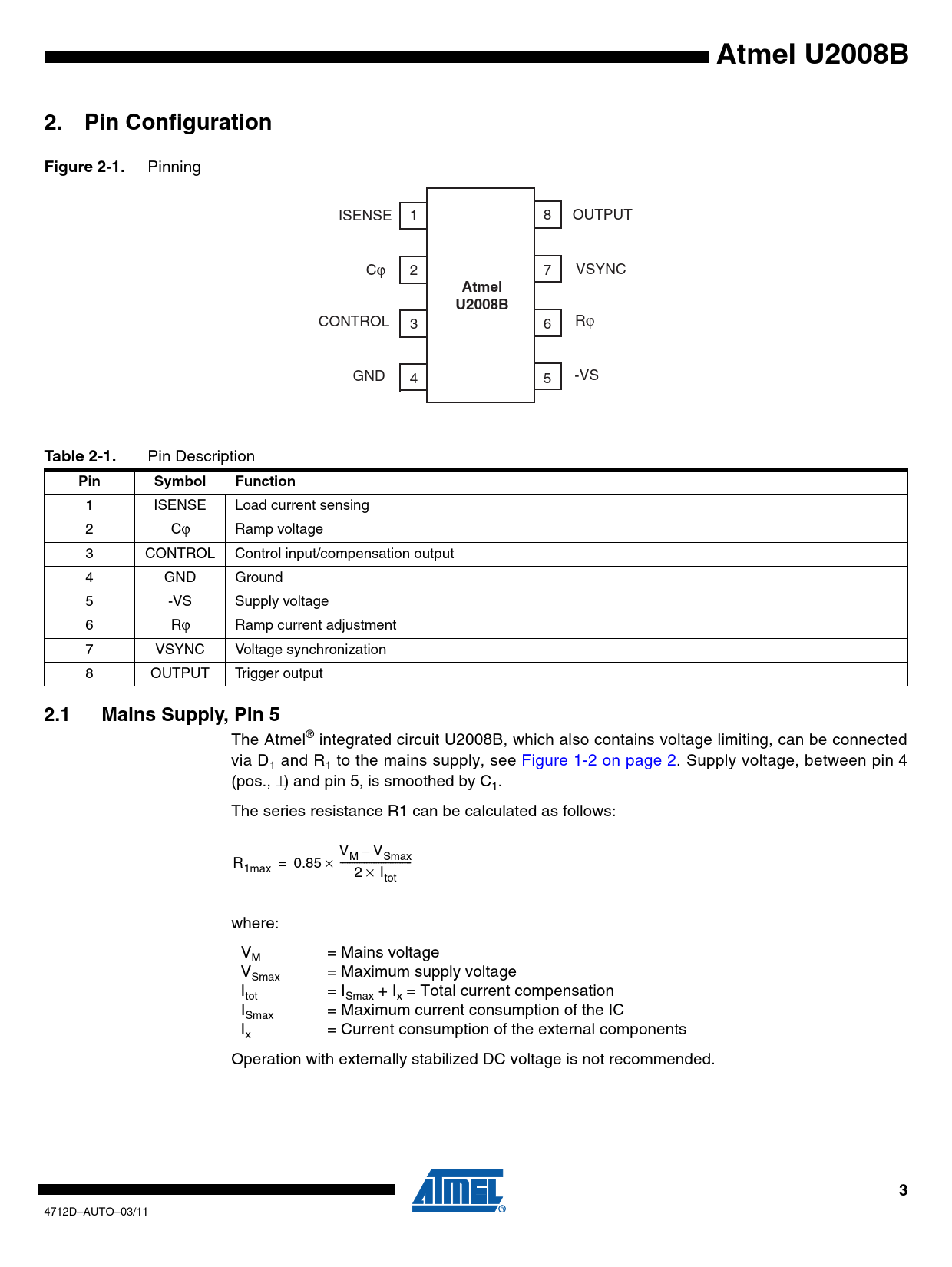

Atmel U2008B 2. Pin Configuration Figure 2-1.
Pinning ISENSE 1 8 OUTPUT Cϕ 2 7 VSYNC
Atmel U2008B
CONTROL 3 6 Rϕ GND 4 5 -VS
Table 2-1.
Pin Description
Pin Symbol Function
1 ISENSE Load current sensing 2 Cϕ Ramp voltage 3 CONTROL Control input/compensation output 4 GND Ground 5 -VS Supply voltage 6 Rϕ Ramp current adjustment 7 VSYNC Voltage synchronization 8 OUTPUT Trigger output
2.1 Mains Supply, Pin 5
The Atmel® integrated circuit U2008B, which also contains voltage limiting, can be connected via D and R to the mains supply, see Figure 1-2 on page 2. Supply voltage, between pin 4 1 1 (pos., ⊥) and pin 5, is smoothed by C . 1 The series resistance R1 can be calculated as follows: V – V M Smax R = 0.85 × --------------- 1max 2 × Itot where: V = Mains voltage M V = Maximum supply voltage Smax I = I + I = Total current compensation tot Smax x I = Maximum current consumption of the IC Smax I = Current consumption of the external components x Operation with externally stabilized DC voltage is not recommended.
3
