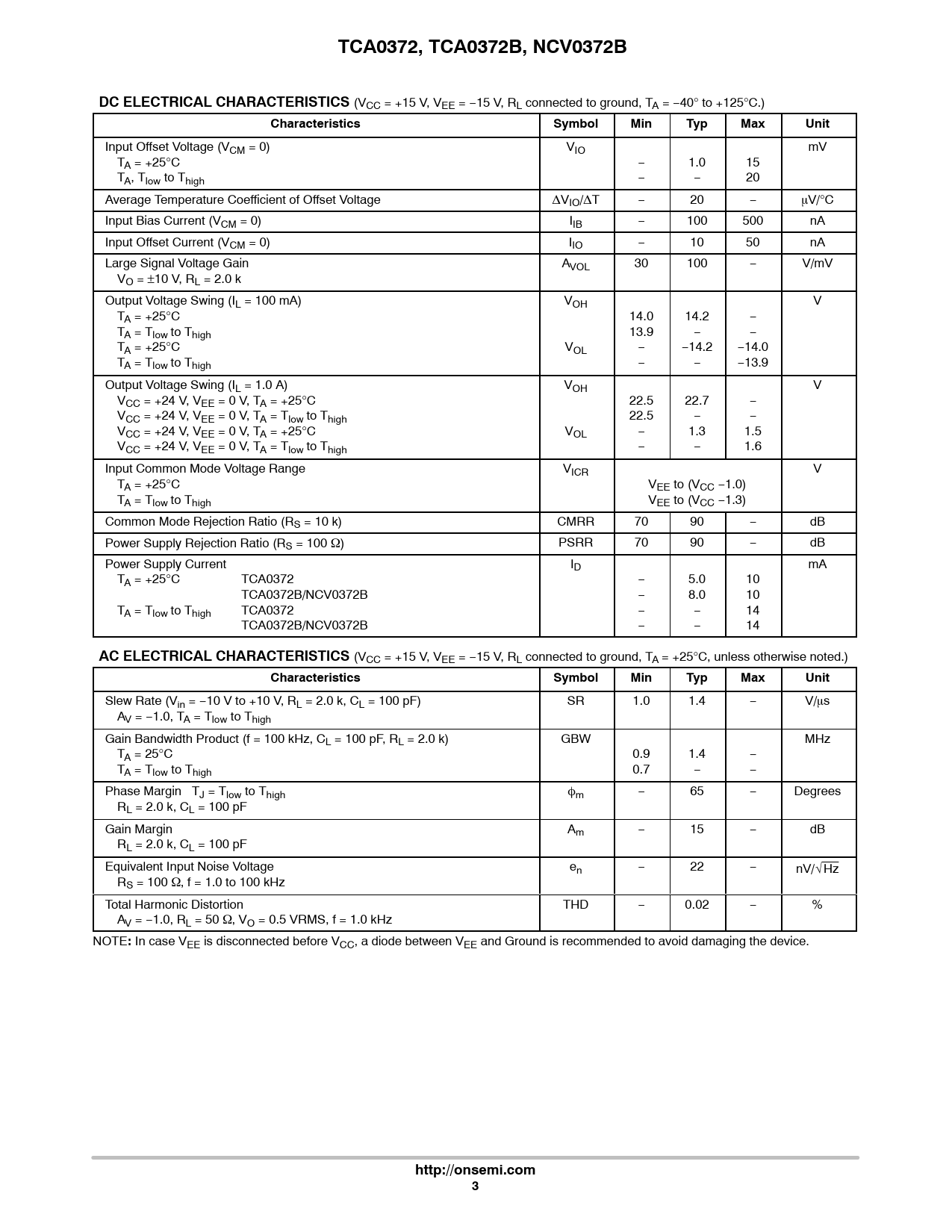

TCA0372, TCA0372B, NCV0372B DC ELECTRICAL CHARACTERISTICS
(VCC = +15 V, VEE = −15 V, RL connected to ground, TA = −40° to +125°C.)
Characteristics Symbol Min Typ Max Unit
Input Offset Voltage (VCM = 0) VIO mV TA = +25°C − 1.0 15 TA, Tlow to Thigh − − 20 Average Temperature Coefficient of Offset Voltage DVIO/DT − 20 − mV/°C Input Bias Current (VCM = 0) IIB − 100 500 nA Input Offset Current (VCM = 0) IIO − 10 50 nA Large Signal Voltage Gain AVOL 30 100 − V/mV VO = ±10 V, RL = 2.0 k Output Voltage Swing (IL = 100 mA) VOH V TA = +25°C 14.0 14.2 − TA = Tlow to Thigh 13.9 − − TA = +25°C VOL − −14.2 −14.0 TA = Tlow to Thigh − − −13.9 Output Voltage Swing (IL = 1.0 A) VOH V VCC = +24 V, VEE = 0 V, TA = +25°C 22.5 22.7 − VCC = +24 V, VEE = 0 V, TA = Tlow to Thigh 22.5 − − VCC = +24 V, VEE = 0 V, TA = +25°C VOL − 1.3 1.5 VCC = +24 V, VEE = 0 V, TA = Tlow to Thigh − − 1.6 Input Common Mode Voltage Range VICR V TA = +25°C VEE to (VCC −1.0) TA = Tlow to Thigh VEE to (VCC −1.3) Common Mode Rejection Ratio (RS = 10 k) CMRR 70 90 − dB Power Supply Rejection Ratio (RS = 100 W) PSRR 70 90 − dB Power Supply Current ID mA TA = +25°C TCA0372 − 5.0 10 TCA0372B/NCV0372B − 8.0 10 TA = Tlow to Thigh TCA0372 − − 14 TCA0372B/NCV0372B − − 14
AC ELECTRICAL CHARACTERISTICS
(VCC = +15 V, VEE = −15 V, RL connected to ground, TA = +25°C, unless otherwise noted.)
Characteristics Symbol Min Typ Max Unit
Slew Rate (Vin = −10 V to +10 V, RL = 2.0 k, CL = 100 pF) SR 1.0 1.4 − V/ms AV = −1.0, TA = Tlow to Thigh Gain Bandwidth Product (f = 100 kHz, CL = 100 pF, RL = 2.0 k) GBW MHz TA = 25°C 0.9 1.4 − TA = Tlow to Thigh 0.7 − − Phase Margin TJ = Tlow to Thigh fm − 65 − Degrees RL = 2.0 k, CL = 100 pF Gain Margin Am − 15 − dB RL = 2.0 k, CL = 100 pF Equivalent Input Noise Voltage en − 22 − nV/√Hz RS = 100 W, f = 1.0 to 100 kHz Total Harmonic Distortion THD − 0.02 − % AV = −1.0, RL = 50 W, VO = 0.5 VRMS, f = 1.0 kHz NOTE
:
In case VEE is disconnected before VCC, a diode between VEE and Ground is recommended to avoid damaging the device.
http://onsemi.com 3
