Datasheet MAX5902, MAX5903 (Maxim) - 4
| 制造商 | Maxim |
| 描述 | +72V SOT23/TDFN Simple Swapper Hot-Swap Controllers |
| 页数 / 页 | 14 / 4 — +72V, SOT23/TDFN, Simple Swapper Hot-Swap Controllers. Typical Operating … |
| 文件格式/大小 | PDF / 342 Kb |
| 文件语言 | 英语 |
+72V, SOT23/TDFN, Simple Swapper Hot-Swap Controllers. Typical Operating Characteristics (continued). GATE DRIVE VOLTAGE
该数据表的模型线
- MAX5902AAETT+ MAX5902AAETT+T MAX5902AAEUT MAX5902AAEUT+ MAX5902AAEUT+T MAX5902ABEUT MAX5902ABEUT+ MAX5902ABEUT+T MAX5902ACEUT MAX5902ACEUT+ MAX5902ACEUT+T MAX5902ACEUT+TG11 MAX5902ACEUT-T MAX5902LAETT+ MAX5902LAETT+T MAX5902LAEUT MAX5902LAEUT+ MAX5902LAEUT+T MAX5902LAEUT-T MAX5902LBEUT+ MAX5902LBEUT+T MAX5902LCETT+ MAX5902LCETT+T MAX5902LCEUT MAX5902LCEUT+ MAX5902LCEUT+T MAX5902NNETT+ MAX5902NNEUT MAX5902NNEUT+ MAX5902NNEUT+T
- MAX5903AAETT+ MAX5903AAETT+T MAX5903AAEUT+ MAX5903AAEUT+T MAX5903ABETT+ MAX5903ABETT+T MAX5903ABEUT+ MAX5903ABEUT+T MAX5903ACETT+ MAX5903ACETT+T MAX5903ACEUT+ MAX5903ACEUT+T MAX5903LAEUT+ MAX5903LAEUT+T MAX5903LBEUT+ MAX5903LBEUT+T MAX5903LCEUT+ MAX5903LCEUT+T MAX5903NNETT+ MAX5903NNETT+T MAX5903NNEUT+ MAX5903NNEUT+T
文件文字版本

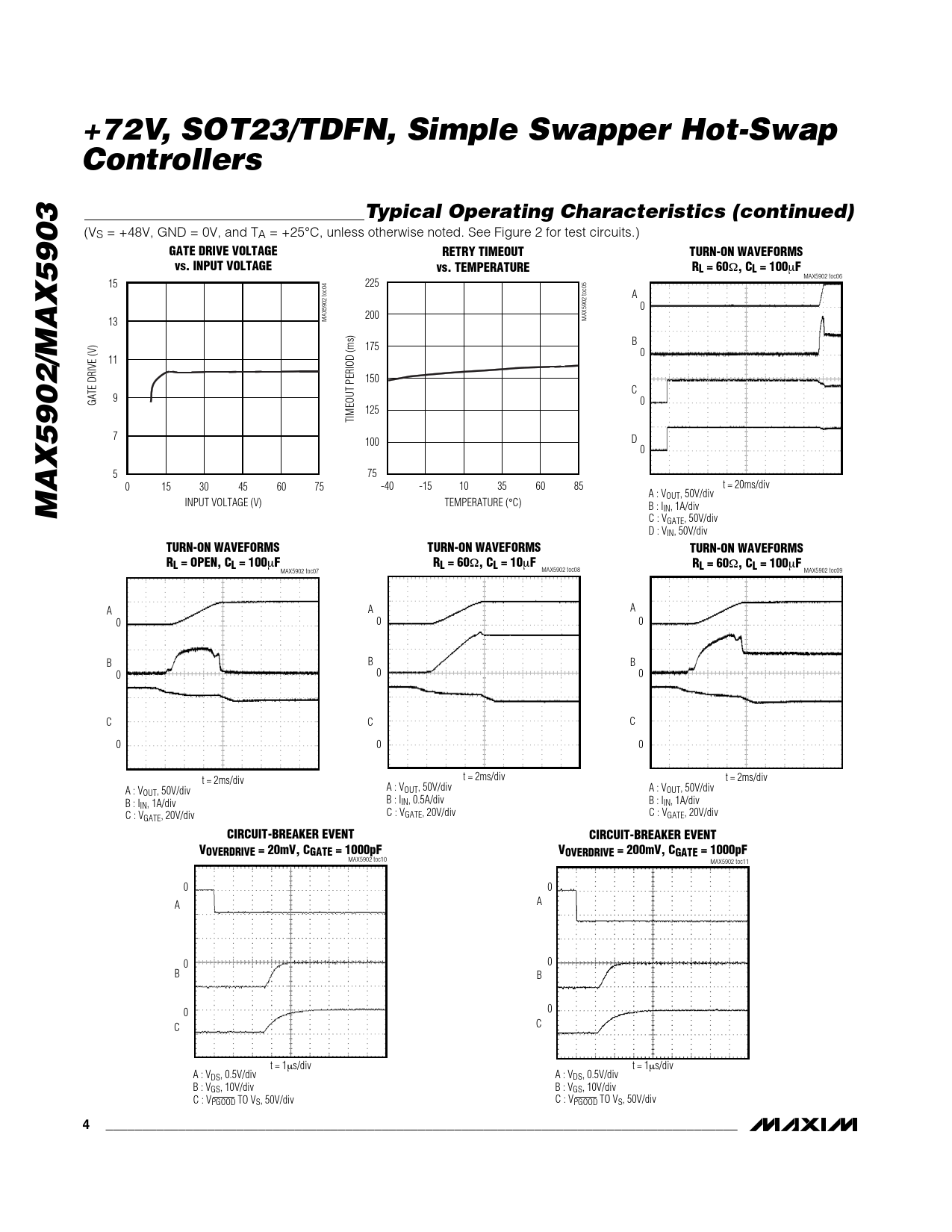

+72V, SOT23/TDFN, Simple Swapper Hot-Swap Controllers Typical Operating Characteristics (continued)
(VS = +48V, GND = 0V, and TA = +25°C, unless otherwise noted. See Figure 2 for test circuits.)
GATE DRIVE VOLTAGE RETRY TIMEOUT TURN-ON WAVEFORMS vs. INPUT VOLTAGE vs. TEMPERATURE RL = 60
Ω
, CL = 100
µ
F
MAX5902 toc06 15 225 A 0 200 13 MAX5902 toc04 MAX5902 toc05 B 175 0 11 150 C 9 GATE DRIVE (V) 0 125 TIMEOUT PERIOD (ms) 7 100 D 0 5 75 0 15 30 45 60 75 -40 -15 10 35 60 85 t = 20ms/div A : VOUT, 50V/div
MAX5902/MAX5903
INPUT VOLTAGE (V) TEMPERATURE (°C) B : IIN, 1A/div C : VGATE, 50V/div D : VIN, 50V/div
TURN-ON WAVEFORMS TURN-ON WAVEFORMS TURN-ON WAVEFORMS RL = OPEN, CL = 100
µ
F RL = 60
Ω
, CL = 10
µ
F RL = 60
Ω
, CL = 100
µ
F
MAX5902 toc07 MAX5902 toc08 MAX5902 toc09 A A A 0 0 0 B B B 0 0 0 C C C 0 0 0 t = 2ms/div t = 2ms/div t = 2ms/div A : V A : V A : V OUT, 50V/div OUT, 50V/div OUT, 50V/div B : I B : I B : I IN, 1A/div IN, 0.5A/div IN, 1A/div C : V C : V C : V GATE, 20V/div GATE, 20V/div GATE, 20V/div
CIRCUIT-BREAKER EVENT CIRCUIT-BREAKER EVENT VOVERDRIVE = 20mV, CGATE = 1000pF VOVERDRIVE = 200mV, CGATE = 1000pF
MAX5902 toc10 MAX5902 toc11 0 0 A A 0 0 B B 0 0 C C t = 1µs/div t = 1µs/div A : VDS, 0.5V/div A : VDS, 0.5V/div B : VGS, 10V/div B : VGS, 10V/div C : VPGOOD TO VS, 50V/div C : VPGOOD TO VS, 50V/div
