Datasheet MAX517, MAX518, MAX519 (Maxim) - 2
| 制造商 | Maxim |
| 描述 | 2-Wire, Serial, 8-Bit DACs with Rail-to-Rail Outputs |
| 页数 / 页 | 16 / 2 — 2-Wire Serial 8-Bit DACs with Rail-to-Rail Outputs. ABSOLUTE MAXIMUM … |
| 文件格式/大小 | PDF / 1.2 Mb |
| 文件语言 | 英语 |

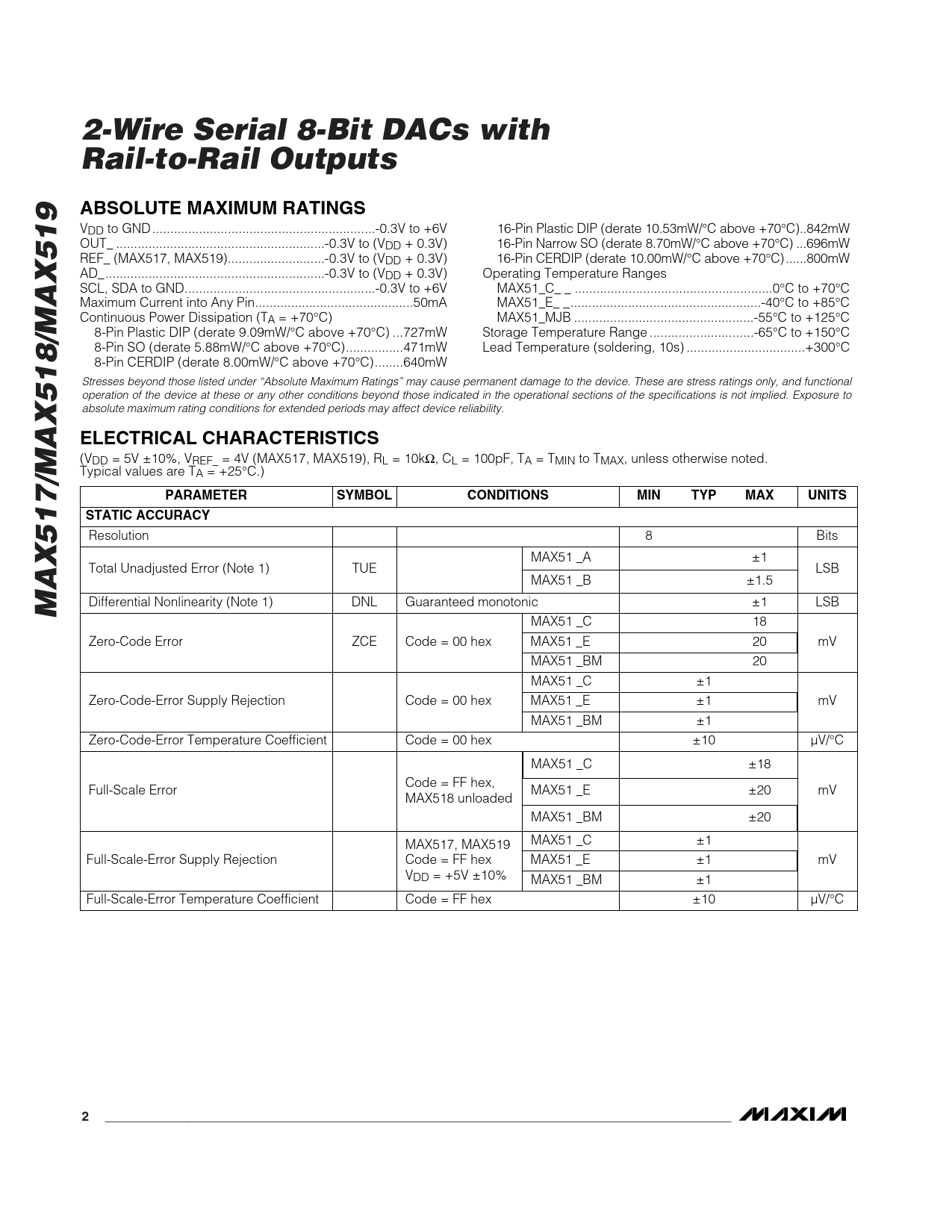

2-Wire Serial 8-Bit DACs with Rail-to-Rail Outputs. ABSOLUTE MAXIMUM RATINGS. ELECTRICAL CHARACTERISTICS. PARAMETER. SYMBOL
该数据表的模型线
- MAX517ACPA MAX517ACPA+ MAX517ACSA MAX517ACSA+ MAX517ACSA+T MAX517AEPA MAX517AEPA+ MAX517AESA MAX517AESA+ MAX517AESA+T MAX517BCPA MAX517BCPA+ MAX517BCSA MAX517BCSA+ MAX517BCSA+T MAX517BEPA MAX517BEPA+ MAX517BESA MAX517BESA+ MAX517BESA+T
文件文字版本
2-Wire Serial 8-Bit DACs with Rail-to-Rail Outputs ABSOLUTE MAXIMUM RATINGS
VDD to GND ..-0.3V to +6V 16-Pin Plastic DIP (derate 10.53mW/°C above +70°C)..842mW OUT_ ..-0.3V to (VDD + 0.3V) 16-Pin Narrow SO (derate 8.70mW/°C above +70°C) ...696mW REF_ (MAX517, MAX519)...-0.3V to (VDD + 0.3V) 16-Pin CERDIP (derate 10.00mW/°C above +70°C) ..800mW AD_...-0.3V to (VDD + 0.3V) Operating Temperature Ranges SCL, SDA to GND...-0.3V to +6V MAX51_C_ _ ...0°C to +70°C Maximum Current into Any Pin..50mA MAX51_E_ _...-40°C to +85°C Continuous Power Dissipation (TA = +70°C) MAX51_MJB ..-55°C to +125°C 8-Pin Plastic DIP (derate 9.09mW/°C above +70°C) ...727mW Storage Temperature Range ...-65°C to +150°C 8-Pin SO (derate 5.88mW/°C above +70°C)..471mW Lead Temperature (soldering, 10s) ...+300°C 8-Pin CERDIP (derate 8.00mW/°C above +70°C)..640mW Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
ELECTRICAL CHARACTERISTICS
(VDD = 5V ±10%, VREF_ = 4V (MAX517, MAX519), RL = 10kΩ, CL = 100pF, TA = TMIN to TMAX, unless otherwise noted. Typical values are TA = +25°C.)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS STATIC ACCURACY
Resolution 8 Bits MAX51 _A ±1 Total Unadjusted Error (Note 1) TUE LSB MAX51 _B ±1.5
MAX517/MAX518/MAX519
Differential Nonlinearity (Note 1) DNL Guaranteed monotonic ±1 LSB MAX51 _C 18 Zero-Code Error ZCE Code = 00 hex MAX51 _E 20 mV MAX51 _BM 20 MAX51 _C ±1 Zero-Code-Error Supply Rejection Code = 00 hex MAX51 _E ±1 mV MAX51 _BM ±1 Zero-Code-Error Temperature Coefficient Code = 00 hex ±10 µV/°C MAX51 _C ±18 Code = FF hex, Full-Scale Error MAX51 _E ±20 mV MAX518 unloaded MAX51 _BM ±20 MAX51 _C ±1 MAX517, MAX519 Full-Scale-Error Supply Rejection Code = FF hex MAX51 _E ±1 mV VDD = +5V ±10% MAX51 _BM ±1 Full-Scale-Error Temperature Coefficient Code = FF hex ±10 µV/°C
