Datasheet MAX517, MAX518, MAX519 (Maxim) - 6
| 制造商 | Maxim |
| 描述 | 2-Wire, Serial, 8-Bit DACs with Rail-to-Rail Outputs |
| 页数 / 页 | 16 / 6 — 2-Wire Serial 8-Bit DACs with Rail-to-Rail Outputs |
| 文件格式/大小 | PDF / 1.2 Mb |
| 文件语言 | 英语 |
2-Wire Serial 8-Bit DACs with Rail-to-Rail Outputs
该数据表的模型线
- MAX517ACPA MAX517ACPA+ MAX517ACSA MAX517ACSA+ MAX517ACSA+T MAX517AEPA MAX517AEPA+ MAX517AESA MAX517AESA+ MAX517AESA+T MAX517BCPA MAX517BCPA+ MAX517BCSA MAX517BCSA+ MAX517BCSA+T MAX517BEPA MAX517BEPA+ MAX517BESA MAX517BESA+ MAX517BESA+T
文件文字版本

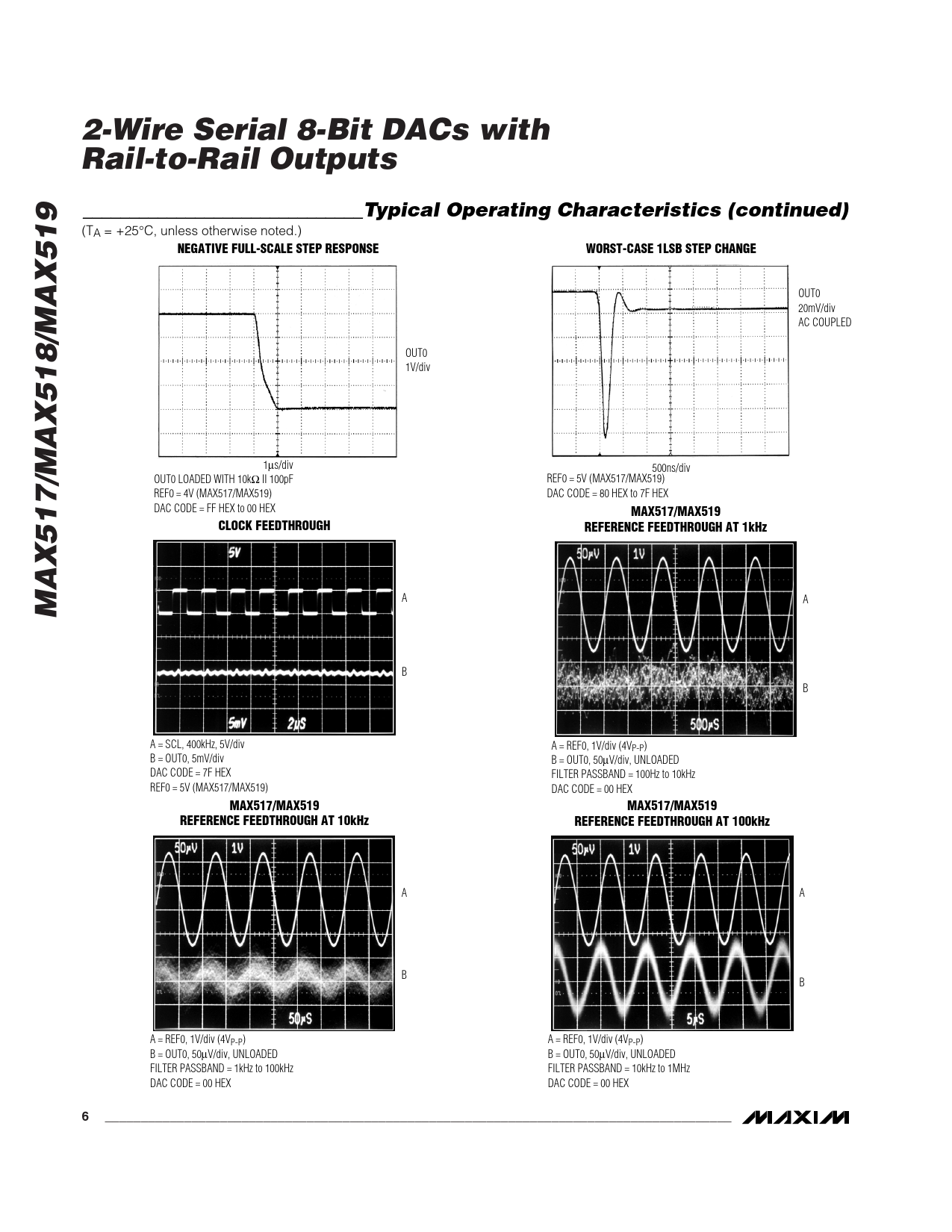

2-Wire Serial 8-Bit DACs with Rail-to-Rail Outputs ______________________________Typical Operating Characteristics (continued)
(TA = +25°C, unless otherwise noted.)
NEGATIVE FULL-SCALE STEP RESPONSE WORST-CASE 1LSB STEP CHANGE
OUT0 20mV/div AC COUPLED OUT0 1V/div 1µs/div 500ns/div OUT0 LOADED WITH 10kΩ II 100pF REF0 = 5V (MAX517/MAX519) REF0 = 4V (MAX517/MAX519) DAC CODE = 80 HEX to 7F HEX DAC CODE = FF HEX to 00 HEX
MAX517/MAX519 CLOCK FEEDTHROUGH REFERENCE FEEDTHROUGH AT 1kHz MAX517/MAX518/MAX519
A A B B A = SCL, 400kHz, 5V/div A = REF0, 1V/div (4VP-P) B = OUT0, 5mV/div B = OUT0, 50µV/div, UNLOADED DAC CODE = 7F HEX FILTER PASSBAND = 100Hz to 10kHz REF0 = 5V (MAX517/MAX519) DAC CODE = 00 HEX
MAX517/MAX519 MAX517/MAX519 REFERENCE FEEDTHROUGH AT 10kHz REFERENCE FEEDTHROUGH AT 100kHz
A A B B A = REF0, 1V/div (4VP-P) A = REF0, 1V/div (4VP-P) B = OUT0, 50µV/div, UNLOADED B = OUT0, 50µV/div, UNLOADED FILTER PASSBAND = 1kHz to 100kHz FILTER PASSBAND = 10kHz to 1MHz DAC CODE = 00 HEX DAC CODE = 00 HEX
6 _______________________________________________________________________________________
(TA = +25°C, unless otherwise noted.)
NEGATIVE FULL-SCALE STEP RESPONSE WORST-CASE 1LSB STEP CHANGE
OUT0 20mV/div AC COUPLED OUT0 1V/div 1µs/div 500ns/div OUT0 LOADED WITH 10kΩ II 100pF REF0 = 5V (MAX517/MAX519) REF0 = 4V (MAX517/MAX519) DAC CODE = 80 HEX to 7F HEX DAC CODE = FF HEX to 00 HEX
MAX517/MAX519 CLOCK FEEDTHROUGH REFERENCE FEEDTHROUGH AT 1kHz MAX517/MAX518/MAX519
A A B B A = SCL, 400kHz, 5V/div A = REF0, 1V/div (4VP-P) B = OUT0, 5mV/div B = OUT0, 50µV/div, UNLOADED DAC CODE = 7F HEX FILTER PASSBAND = 100Hz to 10kHz REF0 = 5V (MAX517/MAX519) DAC CODE = 00 HEX
MAX517/MAX519 MAX517/MAX519 REFERENCE FEEDTHROUGH AT 10kHz REFERENCE FEEDTHROUGH AT 100kHz
A A B B A = REF0, 1V/div (4VP-P) A = REF0, 1V/div (4VP-P) B = OUT0, 50µV/div, UNLOADED B = OUT0, 50µV/div, UNLOADED FILTER PASSBAND = 1kHz to 100kHz FILTER PASSBAND = 10kHz to 1MHz DAC CODE = 00 HEX DAC CODE = 00 HEX
6 _______________________________________________________________________________________
