Datasheet GAN063-650WSA (Nexperia) - 5
| 制造商 | Nexperia |
| 描述 | 650 V, 50 mΩ Gallium Nitride (GaN) FET |
| 页数 / 页 | 12 / 5 — Nexperia. GAN063-650WSA. 650 V, 50 mΩ Gal ium Nitride (GaN) FET. 10. … |
| 修订版 | 27112019 |
| 文件格式/大小 | PDF / 289 Kb |
| 文件语言 | 英语 |
Nexperia. GAN063-650WSA. 650 V, 50 mΩ Gal ium Nitride (GaN) FET. 10. Characteristics Table 7. Characteristics. Symbol. Parameter
该数据表的模型线
文件文字版本
link to page 7 link to page 7 link to page 7 link to page 7 link to page 7 link to page 8 link to page 8

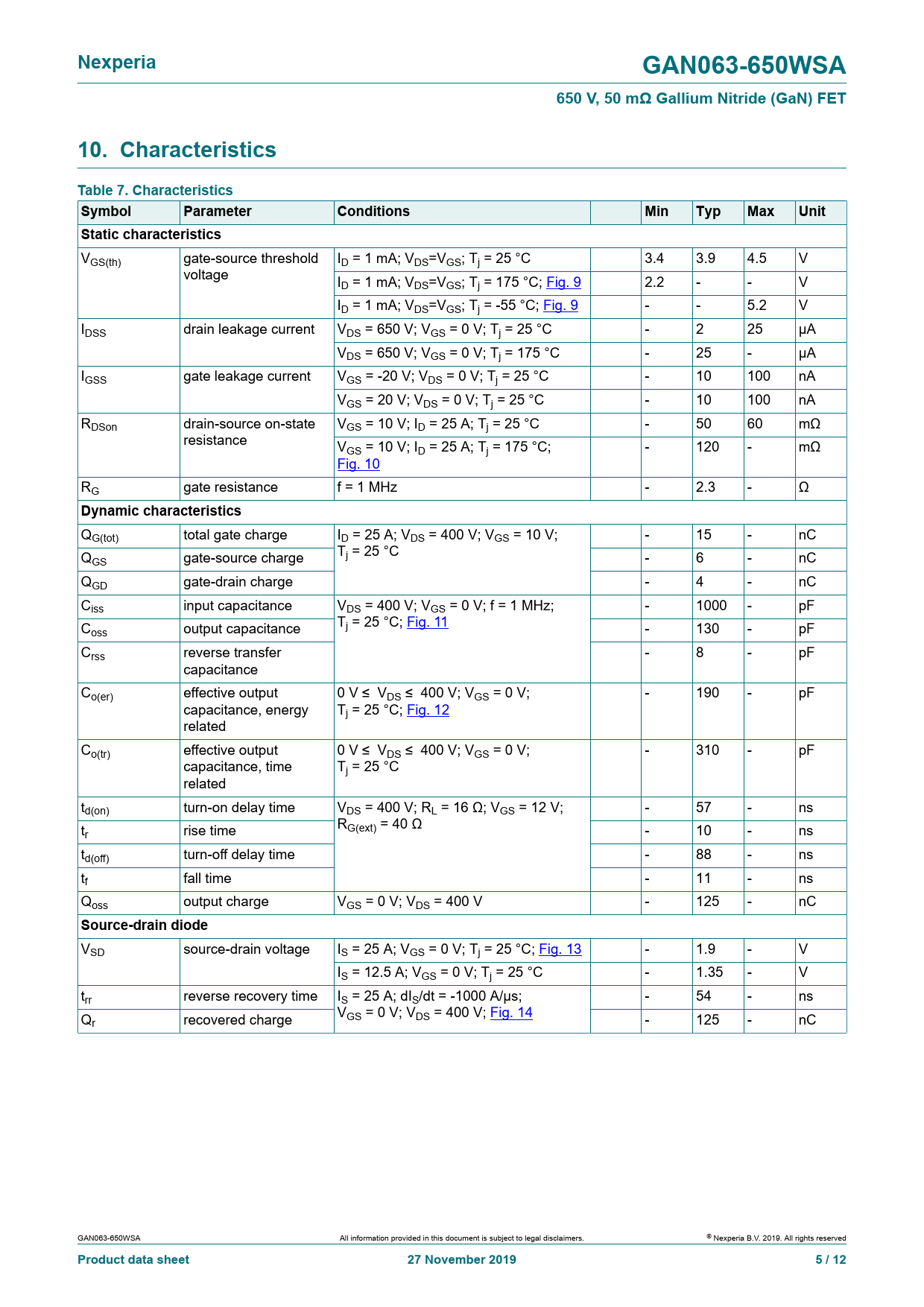

Nexperia GAN063-650WSA 650 V, 50 mΩ Gal ium Nitride (GaN) FET 10. Characteristics Table 7. Characteristics Symbol Parameter Conditions Min Typ Max Unit Static characteristics
VGS(th) gate-source threshold ID = 1 mA; VDS=VGS; Tj = 25 °C 3.4 3.9 4.5 V voltage ID = 1 mA; VDS=VGS; Tj = 175 °C; Fig. 9 2.2 - - V ID = 1 mA; VDS=VGS; Tj = -55 °C; Fig. 9 - - 5.2 V IDSS drain leakage current VDS = 650 V; VGS = 0 V; Tj = 25 °C - 2 25 µA VDS = 650 V; VGS = 0 V; Tj = 175 °C - 25 - µA IGSS gate leakage current VGS = -20 V; VDS = 0 V; Tj = 25 °C - 10 100 nA VGS = 20 V; VDS = 0 V; Tj = 25 °C - 10 100 nA RDSon drain-source on-state VGS = 10 V; ID = 25 A; Tj = 25 °C - 50 60 mΩ resistance VGS = 10 V; ID = 25 A; Tj = 175 °C; - 120 - mΩ Fig. 10 RG gate resistance f = 1 MHz - 2.3 - Ω
Dynamic characteristics
QG(tot) total gate charge ID = 25 A; VDS = 400 V; VGS = 10 V; - 15 - nC Q T GS gate-source charge j = 25 °C - 6 - nC QGD gate-drain charge - 4 - nC Ciss input capacitance VDS = 400 V; VGS = 0 V; f = 1 MHz; - 1000 - pF C T oss output capacitance j = 25 °C; Fig. 11 - 130 - pF Crss reverse transfer - 8 - pF capacitance Co(er) ef ective output 0 V ≤ VDS ≤ 400 V; VGS = 0 V; - 190 - pF capacitance, energy Tj = 25 °C; Fig. 12 related Co(tr) ef ective output 0 V ≤ VDS ≤ 400 V; VGS = 0 V; - 310 - pF capacitance, time Tj = 25 °C related td(on) turn-on delay time VDS = 400 V; RL = 16 Ω; VGS = 12 V; - 57 - ns t R r rise time G(ext) = 40 Ω - 10 - ns td(of ) turn-of delay time - 88 - ns tf fall time - 11 - ns Qoss output charge VGS = 0 V; VDS = 400 V - 125 - nC
Source-drain diode
VSD source-drain voltage IS = 25 A; VGS = 0 V; Tj = 25 °C; Fig. 13 - 1.9 - V IS = 12.5 A; VGS = 0 V; Tj = 25 °C - 1.35 - V trr reverse recovery time IS = 25 A; dIS/dt = -1000 A/µs; - 54 - ns Q V r recovered charge GS = 0 V; VDS = 400 V; Fig. 14 - 125 - nC GAN063-650WSA All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2019. Al rights reserved
Product data sheet 27 November 2019 5 / 12
