Datasheet 2ED2108 (4) S06F (J) (Infineon)

制造商Infineon
描述650 V half bridge gate driver with integrated bootstrap diode
页数 / 页24 / 1 — link. to. page. 24. 2ED2108. (4). S06F. (J). 2ED2108. (4). S06F. (J). …
修订版02_10
文件格式/大小PDF / 964 Kb
文件语言英语

link. to. page. 24. 2ED2108. (4). S06F. (J). 2ED2108. (4). S06F. (J). 650. V. half. bridge. gate. driver. with. integrated. bootstrap. diode. Features. Product

Datasheet 2ED2108 (4) S06F (J) Infineon, 修订版: 02_10

该数据表的模型线

文件文字版本

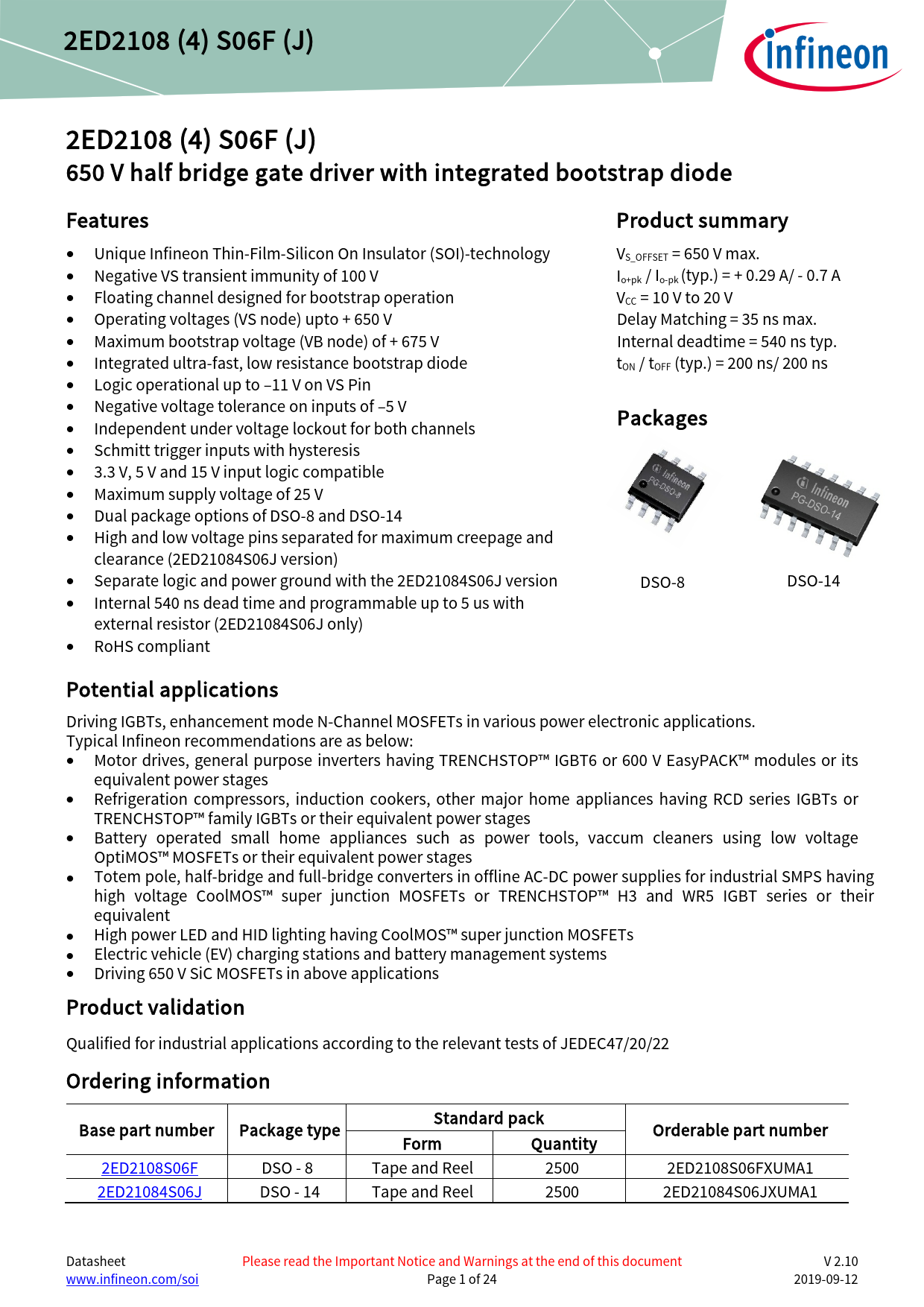

link to page 24 2ED2108 (4) S06F (J) 2ED2108 (4) S06F (J) 650 V half bridge gate driver with integrated bootstrap diode Features Product summary • Unique Infineon Thin-Film-Silicon On Insulator (SOI)-technology VS_OFFSET = 650 V max. • Negative VS transient immunity of 100 V Io+pk / Io-pk (typ.) = + 0.29 A/ - 0.7 A • Floating channel designed for bootstrap operation VCC = 10 V to 20 V • Operating voltages (VS node) upto + 650 V Delay Matching = 35 ns max. • Maximum bootstrap voltage (VB node) of + 675 V Internal deadtime = 540 ns typ. • Integrated ultra-fast, low resistance bootstrap diode tON / tOFF (typ.) = 200 ns/ 200 ns • Logic operational up to –11 V on VS Pin • Negative voltage tolerance on inputs of –5 V • Independent under voltage lockout for both channels Packages • Schmitt trigger inputs with hysteresis • 3.3 V, 5 V and 15 V input logic compatible • Maximum supply voltage of 25 V • Dual package options of DSO-8 and DSO-14 • High and low voltage pins separated for maximum creepage and clearance (2ED21084S06J version) • Separate logic and power ground with the 2ED21084S06J version DSO-8 DSO-14 • Internal 540 ns dead time and programmable up to 5 us with external resistor (2ED21084S06J only) • RoHS compliant Potential applications Driving IGBTs, enhancement mode N-Channel MOSFETs in various power electronic applications. Typical Infineon recommendations are as below: • Motor drives, general purpose inverters having TRENCHSTOP™ IGBT6 or 600 V EasyPACK™ modules or its equivalent power stages • Refrigeration compressors, induction cookers, other major home appliances having RCD series IGBTs or TRENCHSTOP™ family IGBTs or their equivalent power stages • Battery operated small home appliances such as power tools, vaccum cleaners using low voltage OptiMOS™ MOSFETs or their equivalent power stages • Totem pole, half-bridge and full-bridge converters in offline AC-DC power supplies for industrial SMPS having high voltage CoolMOS™ super junction MOSFETs or TRENCHSTOP™ H3 and WR5 IGBT series or their equivalent • High power LED and HID lighting having CoolMOS™ super junction MOSFETs • Electric vehicle (EV) charging stations and battery management systems • Driving 650 V SiC MOSFETs in above applications Product validation Qualified for industrial applications according to the relevant tests of JEDEC47/20/22 Ordering information Standard pack Base part number Package type Orderable part number Form Quantity 2ED2108S06F DSO - 8 Tape and Reel 2500 2ED2108S06FXUMA1 2ED21084S06J DSO - 14 Tape and Reel 2500 2ED21084S06JXUMA1 Datasheet Please read the Important Notice and Warnings at the end of this document V 2.10 www.infineon.com/soi Page 1 of 24 2019-09-12 Document Outline Features Product summary Potential applications Product validation Ordering information Description 1 Table of contents 2 Block diagram 3 Pin configuration and functionality 3.1 Pin configuration 3.2 Pin functionality 4 Electrical parameters 4.1 Absolute maximum ratings 4.2 Recommended operating conditions 4.3 Static electrical characteristics 4.4 Dynamic electrical characteristics 5 Application information and additional details 5.1 IGBT / MOSFET gate drive 5.2 Switching and timing relationships 5.3 Deadtime 5.4 Matched propagation delays 5.5 Input logic compatibility 5.6 Undervoltage lockout 5.7 Bootstrap diode 5.8 Calculating the bootstrap capacitance CBS 5.9 Tolerant to negative tranisents on input pins 5.10 Negative voltage transient tolerance of VS pin 5.11 NTSOA – Negative Transient Safe Operating Area 5.12 Higher headroom for input to output signal transmission with logic operation upto -11 V 5.13 Maximum switching frequency 5.14 PCB layout tips 6 Qualification information0F 7 Related products 8 Package details 9 Part marking information 10 Additional documentation and resources 10.1 Infineon online forum resources 11 Revision history
