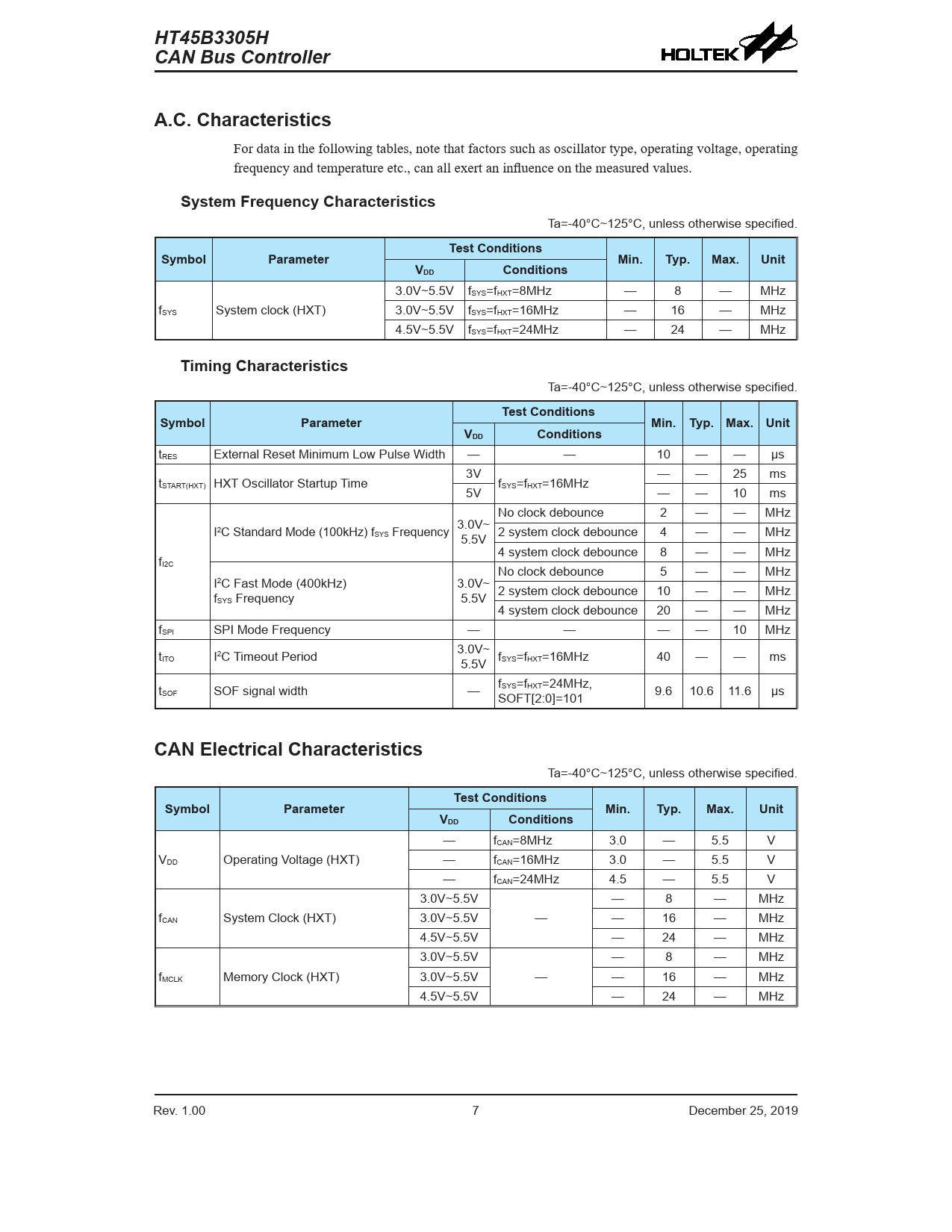

HT45B3305H. CAN Bus Controller. A.C. Characteristics. System Frequency Characteristics. Test Conditions. Symbol. Parameter. Min. Typ. Max
该数据表的模型线
文件文字版本
HT45B3305H HT45B3305H CAN Bus Controller CAN Bus Controller A.C. Characteristics
For data in the following tables, note that factors such as oscillator type, operating voltage, operating frequency and temperature etc., can all exert an influence on the measured values.
System Frequency Characteristics
Ta=-40°C~125°C, unless otherwise specified.
Test Conditions Symbol Parameter Min. Typ. Max. Unit VDD Conditions
3.0V~5.5V fSYS=fHXT=8MHz — 8 — MHz fSYS System clock (HXT) 3.0V~5.5V fSYS=fHXT=16MHz — 16 — MHz 4.5V~5.5V fSYS=fHXT=24MHz — 24 — MHz
Timing Characteristics
Ta=-40°C~125°C, unless otherwise specified.
Test Conditions Symbol Parameter Min. Typ. Max. Unit VDD Conditions
tRES External Reset Minimum Low Pulse Width — — 10 — — μs 3V — — 25 ms tSTART(HXT) HXT Oscillator Startup Time fSYS=fHXT=16MHz 5V — — 10 ms No clock debounce 2 — — MHz I2C Standard Mode (100kHz) fSYS Frequency 3.0V~ 5.5V 2 system clock debounce 4 — — MHz 4 system clock debounce 8 — — MHz fI2C No clock debounce 5 — — MHz I2C Fast Mode (400kHz) 3.0V~ f 2 system clock debounce 10 — — MHz SYS Frequency 5.5V 4 system clock debounce 20 — — MHz fSPI SPI Mode Frequency — — — — 10 MHz tITO I2C Timeout Period 3.0V~ 5.5V fSYS=fHXT=16MHz 40 — — ms tSOF SOF signal width — fSYS=fHXT=24MHz, SOFT[2:0]=101 9.6 10.6 11.6 μs
CAN Electrical Characteristics
Ta=-40°C~125°C, unless otherwise specified.
Test Conditions Symbol Parameter Min. Typ. Max. Unit VDD Conditions
