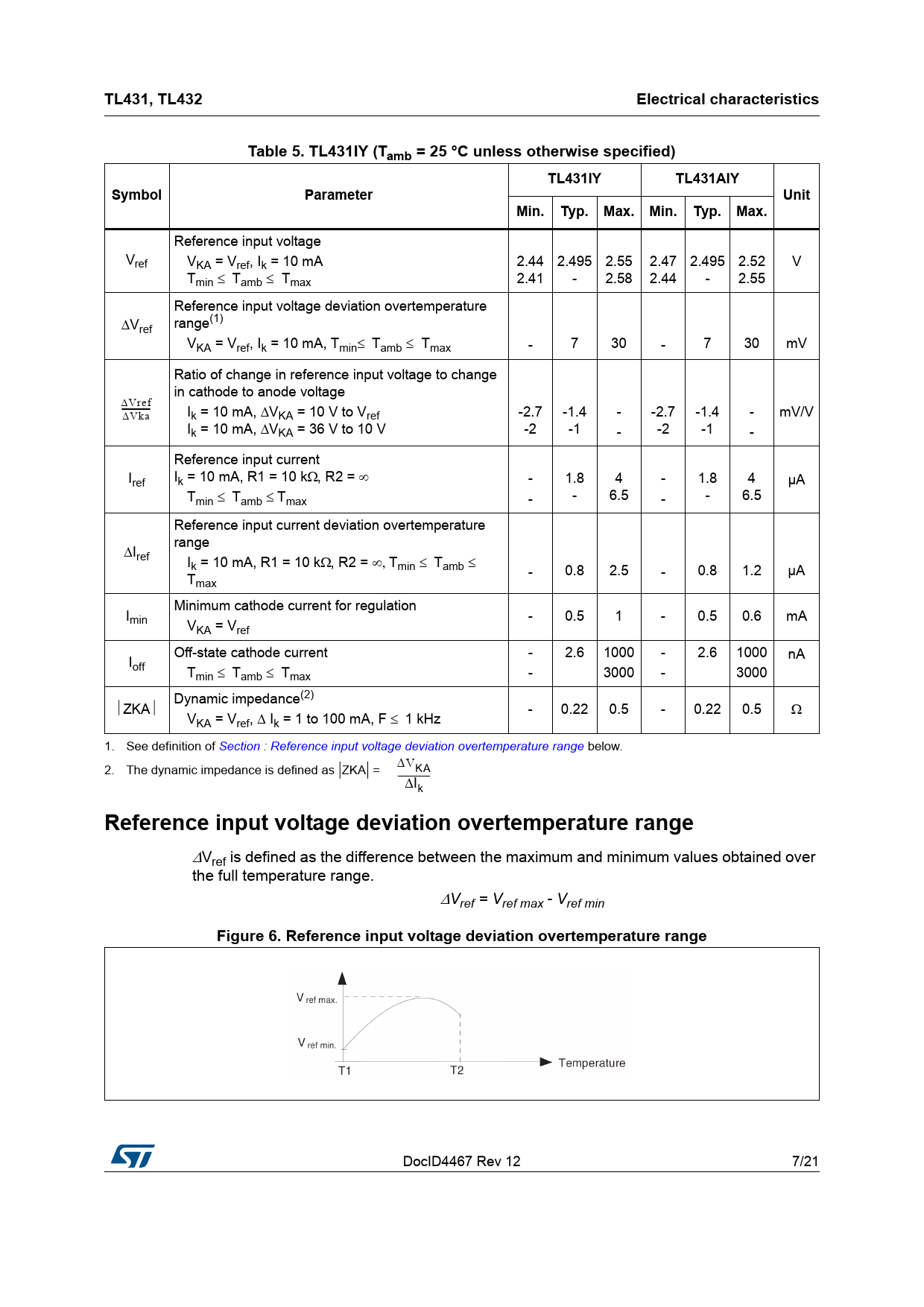

TL431, TL432 Electrical characteristics Table 5. TL431IY (Tamb = 25 °C unless otherwise specified) TL431IY TL431AIY Symbol Parameter Unit Min. Typ. Max. Min. Typ. Max.
Reference input voltage Vref VKA = Vref, Ik = 10 mA 2.44 2.495 2.55 2.47 2.495 2.52 V Tmin  Tamb  Tmax 2.41 - 2.58 2.44 - 2.55 Reference input voltage deviation overtemperature Vref range(1) VKA = Vref, Ik = 10 mA, Tmin Tamb  Tmax - 7 30 - 7 30 mV Ratio of change in reference input voltage to change in cathode to anode voltage Vref ------ I Vka k = 10 mA, VKA = 10 V to Vref -2.7 -1.4 - -2.7 -1.4 - mV/V Ik = 10 mA, VKA = 36 V to 10 V -2 -1 - -2 -1 - Reference input current Iref Ik = 10 mA, R1 = 10 k, R2 =  - 1.8 4 - 1.8 4 µA Tmin  Tamb  Tmax - - 6.5 - - 6.5 Reference input current deviation overtemperature range Iref Ik = 10 mA, R1 = 10 k, R2 = Tmin  Tamb  T - 0.8 2.5 - 0.8 1.2 µA max Minimum cathode current for regulation Imin - 0.5 1 - 0.5 0.6 mA VKA = Vref Off-state cathode current - 2.6 1000 - 2.6 1000 nA Ioff Tmin  Tamb  Tmax - 3000 - 3000 Dynamic impedance(2) ZKA - 0.22 0.5 - 0.22 0.5 VKA = Vref,  Ik = 1 to 100 mA, F  1 kHz 1. See definition of Section : Reference input voltage deviation overtemperature range below. V 2. The dynamic impedance is defined as ZKA= KA -  ------- Ik
Reference input voltage deviation overtemperature range
Vref is defined as the difference between the maximum and minimum values obtained over the full temperature range. Vref = Vref max - Vref min
Figure 6. Reference input voltage deviation overtemperature range
