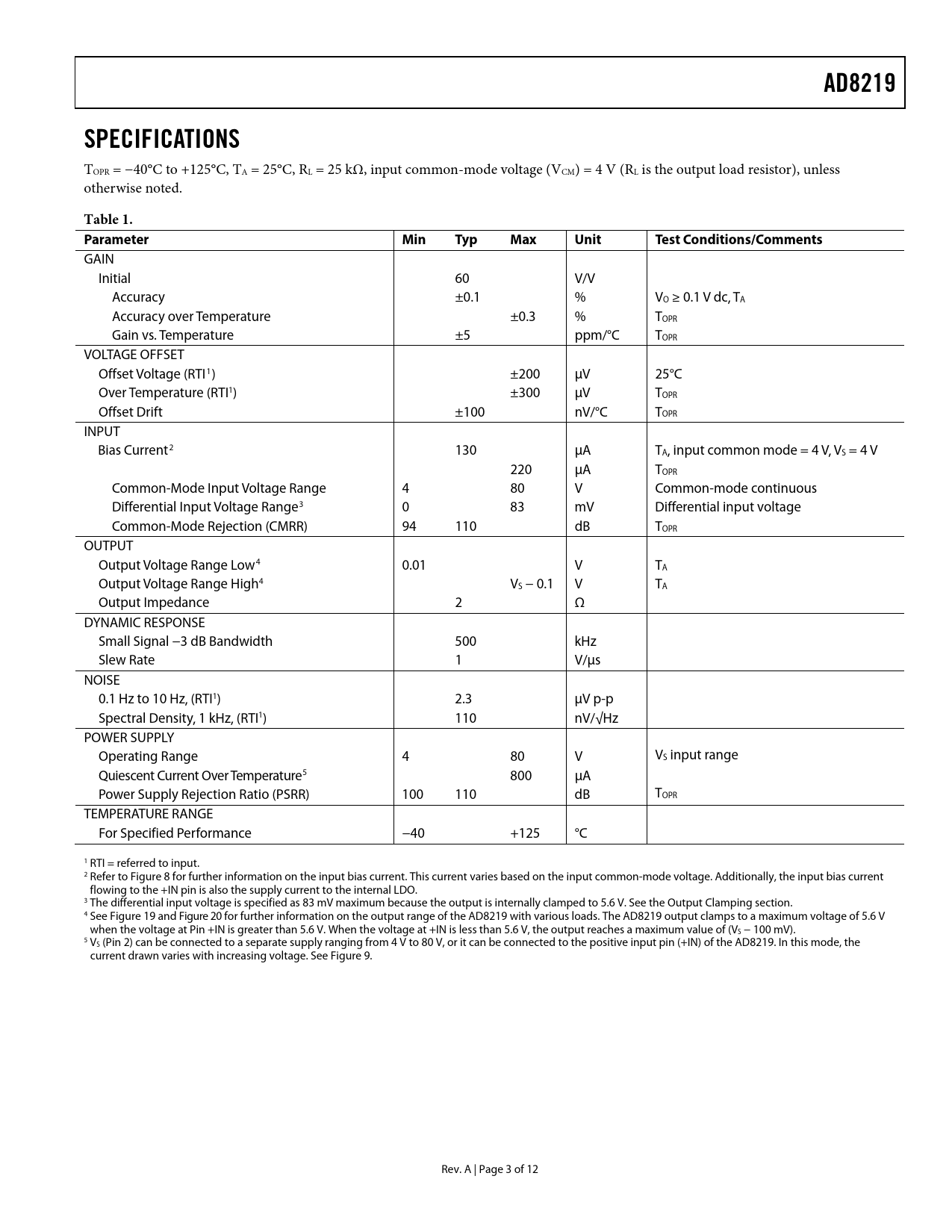

AD8219 SPECIFICATIONS
TOPR = −40°C to +125°C, TA = 25°C, RL = 25 kΩ, input common-mode voltage (VCM) = 4 V (RL is the output load resistor), unless otherwise noted.
Table 1. Parameter Min Typ Max Unit Test Conditions/Comments
GAIN Initial 60 V/V Accuracy ±0.1 % VO ≥ 0.1 V dc, TA Accuracy over Temperature ±0.3 % TOPR Gain vs. Temperature ±5 ppm/°C TOPR VOLTAGE OFFSET Offset Voltage (RTI1) ±200 μV 25°C Over Temperature (RTI1) ±300 μV TOPR Offset Drift ±100 nV/°C TOPR INPUT Bias Current2 130 μA TA, input common mode = 4 V, VS = 4 V 220 μA TOPR Common-Mode Input Voltage Range 4 80 V Common-mode continuous Differential Input Voltage Range3 0 83 mV Differential input voltage Common-Mode Rejection (CMRR) 94 110 dB TOPR OUTPUT Output Voltage Range Low4 0.01 V TA Output Voltage Range High4 V S − 0.1 V TA Output Impedance 2 Ω DYNAMIC RESPONSE Small Signal −3 dB Bandwidth 500 kHz Slew Rate 1 V/μs NOISE 0.1 Hz to 10 Hz, (RTI1) 2.3 μV p-p Spectral Density, 1 kHz, (RTI1) 110 nV/√Hz POWER SUPPLY Operating Range 4 80 V VS input range Quiescent Current Over Temperature5 800 μA Power Supply Rejection Ratio (PSRR) 100 110 dB TOPR TEMPERATURE RANGE For Specified Performance −40 +125 °C 1 RTI = referred to input. 2 Refer to Figure fo 8 r further information on the input bias current. This current varies based on the input common-mode voltage. Additionally, the input bias current flowing to the +IN pin is also the supply current to the internal LDO. 3 The differential input voltage is specified as 83 mV maximum because the output is internally clamped to 5.6 V. See the Output Cl s amping ection. 4 See Figur and e 19 Figure 2 0 for further information on the output range of the AD8219 with various loads. The AD8219 output clamps to a maximum voltage of 5.6 V when the voltage at Pin +IN is greater than 5.6 V. When the voltage at +IN is less than 5.6 V, the output reaches a maximum value of (VS − 100 mV). 5 VS (Pin 2) can be connected to a separate supply ranging from 4 V to 80 V, or it can be connected to the positive input pin (+IN) of the AD8219. In this mode, the current drawn varies with increasing voltage. See Figur . e 9 Rev. A | Page 3 of 12 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION AMPLIFIER CORE SUPPLY CONNECTIONS OUTPUT CLAMPING OUTPUT LINEARITY APPLICATIONS INFORMATION HIGH-SIDE CURRENT SENSING MOTOR CONTROL CURRENT SENSING OUTLINE DIMENSIONS ORDERING GUIDE
