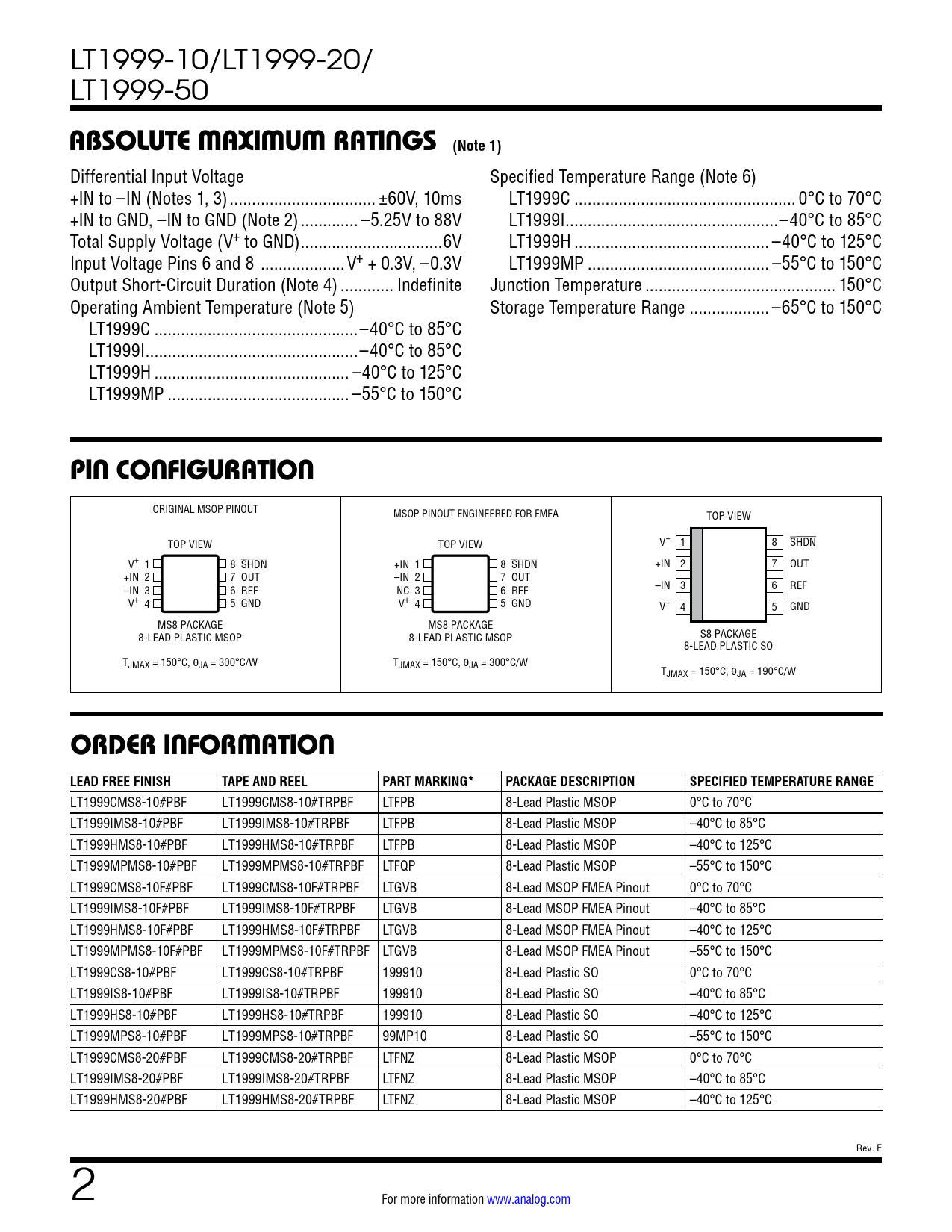

Datasheet LT1999-10, LT1999-20, LT1999-50 (Analog Devices) - 2

LT1999-10/LT1999-20/ LT1999-50
ABSOLUTE MAXIMUM RATINGS (Note 1)
Differential Input Voltage Specified Temperature Range (Note 6) +IN to –IN (Notes 1, 3) ... ±60V, 10ms LT1999C .. 0°C to 70°C +IN to GND, –IN to GND (Note 2) ... –5.25V to 88V LT1999I ..–40°C to 85°C Total Supply Voltage (V+ to GND) ..6V LT1999H .. –40°C to 125°C Input Voltage Pins 6 and 8 ...V+ + 0.3V, –0.3V LT1999MP ... –55°C to 150°C Output Short-Circuit Duration (Note 4) .. Indefinite Junction Temperature ... 150°C Operating Ambient Temperature (Note 5) Storage Temperature Range .. –65°C to 150°C LT1999C ..–40°C to 85°C LT1999I ..–40°C to 85°C LT1999H .. –40°C to 125°C LT1999MP ... –55°C to 150°C
PIN CONFIGURATION
ORIGINAL MSOP PINOUT MSOP PINOUT ENGINEERED FOR FMEA TOP VIEW TOP VIEW TOP VIEW V+ 1 8 SHDN V+ 1 8 SHDN +IN 1 8 SHDN +IN 2 7 OUT +IN 2 7 OUT –IN 2 7 OUT –IN 3 6 REF NC 3 6 REF –IN 3 6 REF V+ 4 5 GND V+ 4 5 GND V+ 4 5 GND MS8 PACKAGE MS8 PACKAGE 8-LEAD PLASTIC MSOP 8-LEAD PLASTIC MSOP S8 PACKAGE 8-LEAD PLASTIC SO TJMAX = 150°C, θJA = 300°C/W TJMAX = 150°C, θJA = 300°C/W TJMAX = 150°C, θJA = 190°C/W
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT1999CMS8-10#PBF LT1999CMS8-10#TRPBF LTFPB 8-Lead Plastic MSOP 0°C to 70°C LT1999IMS8-10#PBF LT1999IMS8-10#TRPBF LTFPB 8-Lead Plastic MSOP –40°C to 85°C LT1999HMS8-10#PBF LT1999HMS8-10#TRPBF LTFPB 8-Lead Plastic MSOP –40°C to 125°C LT1999MPMS8-10#PBF LT1999MPMS8-10#TRPBF LTFQP 8-Lead Plastic MSOP –55°C to 150°C LT1999CMS8-10F#PBF LT1999CMS8-10F#TRPBF LTGVB 8-Lead MSOP FMEA Pinout 0°C to 70°C LT1999IMS8-10F#PBF LT1999IMS8-10F#TRPBF LTGVB 8-Lead MSOP FMEA Pinout –40°C to 85°C LT1999HMS8-10F#PBF LT1999HMS8-10F#TRPBF LTGVB 8-Lead MSOP FMEA Pinout –40°C to 125°C LT1999MPMS8-10F#PBF LT1999MPMS8-10F#TRPBF LTGVB 8-Lead MSOP FMEA Pinout –55°C to 150°C LT1999CS8-10#PBF LT1999CS8-10#TRPBF 199910 8-Lead Plastic SO 0°C to 70°C LT1999IS8-10#PBF LT1999IS8-10#TRPBF 199910 8-Lead Plastic SO –40°C to 85°C LT1999HS8-10#PBF LT1999HS8-10#TRPBF 199910 8-Lead Plastic SO –40°C to 125°C LT1999MPS8-10#PBF LT1999MPS8-10#TRPBF 99MP10 8-Lead Plastic SO –55°C to 150°C LT1999CMS8-20#PBF LT1999CMS8-20#TRPBF LTFNZ 8-Lead Plastic MSOP 0°C to 70°C LT1999IMS8-20#PBF LT1999IMS8-20#TRPBF LTFNZ 8-Lead Plastic MSOP –40°C to 85°C LT1999HMS8-20#PBF LT1999HMS8-20#TRPBF LTFNZ 8-Lead Plastic MSOP –40°C to 125°C Rev. E 2 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Test Circuit Applications Information Theory of Operation Typical Applications Package Description Revision History Typical Application Related Parts
