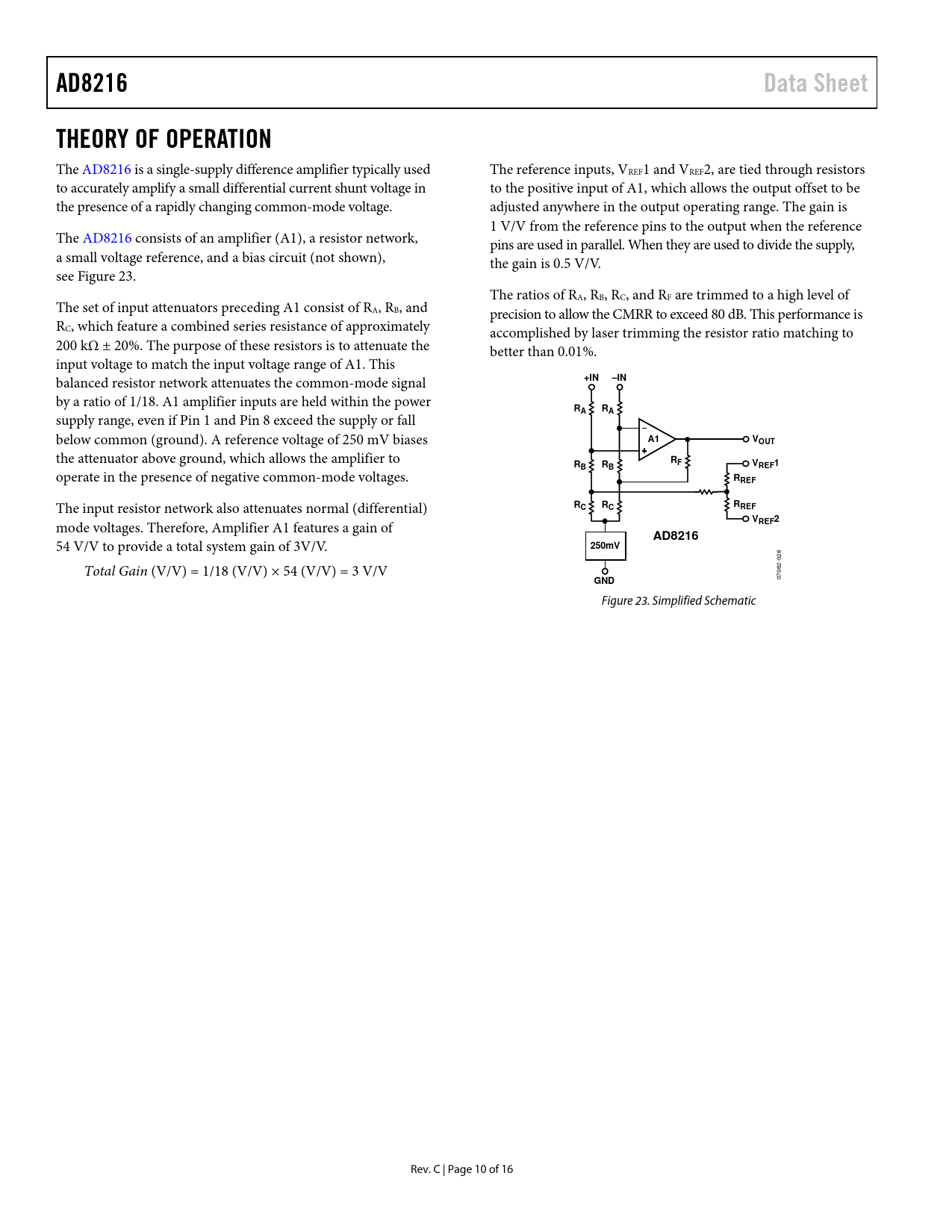

AD8216 Data Sheet THEORY OF OPERATION
The AD8216 is a single-supply difference amplifier typically used The reference inputs, VREF1 and VREF2, are tied through resistors to accurately amplify a smal differential current shunt voltage in to the positive input of A1, which allows the output offset to be the presence of a rapidly changing common-mode voltage. adjusted anywhere in the output operating range. The gain is 1 V/V from the reference pins to the output when the reference The AD8216 consists of an amplifier (A1), a resistor network, pins are used in parallel. When they are used to divide the supply, a small voltage reference, and a bias circuit (not shown), the gain is 0.5 V/V. see Figure 23. The ratios of RA, RB, RC, and RF are trimmed to a high level of The set of input attenuators preceding A1 consist of RA, RB, and precision to allow the CMRR to exceed 80 dB. This performance is RC, which feature a combined series resistance of approximately accomplished by laser trimming the resistor ratio matching to 200 kΩ ± 20%. The purpose of these resistors is to attenuate the better than 0.01%. input voltage to match the input voltage range of A1. This balanced resistor network attenuates the common-mode signal
+IN –IN
by a ratio of 1/18. A1 amplifier inputs are held within the power
RA RA
supply range, even if Pin 1 and Pin 8 exceed the supply or fall below common (ground). A reference voltage of 250 mV biases
A1 VOUT
the attenuator above ground, which allows the amplifier to
R R F V B RB REF1
operate in the presence of negative common-mode voltages.
RREF
The input resistor network also attenuates normal (differential)
R R C RC REF
mode voltages. Therefore, Amplifier A1 features a gain of
VREF2 AD8216
54 V/V to provide a total system gain of 3V/V.
250mV
028 Total Gain (V/V) = 1/18 (V/V) × 54 (V/V) = 3 V/V
GND
