Datasheet AD8214 (Analog Devices) - 4
| 制造商 | Analog Devices |
| 描述 | Fast Response, High Voltage, Current Shunt Comparator |
| 页数 / 页 | 16 / 4 — AD8214. Data Sheet. ABSOLUTE MAXIMUM RATINGS. Table 2. ESD CAUTION. … |
| 修订版 | A |
| 文件格式/大小 | PDF / 247 Kb |
| 文件语言 | 英语 |
AD8214. Data Sheet. ABSOLUTE MAXIMUM RATINGS. Table 2. ESD CAUTION. Parameter. Rating
该数据表的模型线
文件文字版本

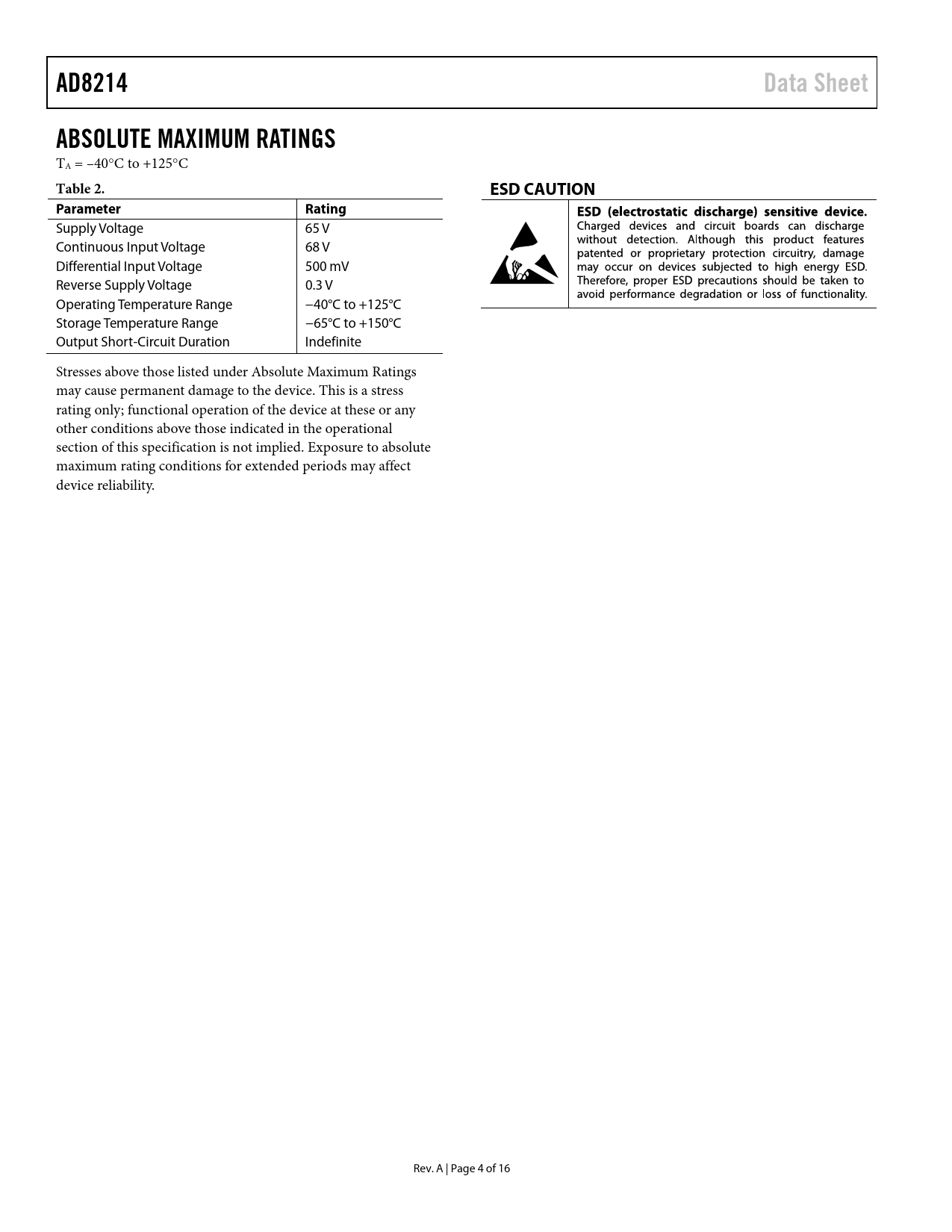

AD8214 Data Sheet ABSOLUTE MAXIMUM RATINGS
TA = –40°C to +125°C
Table 2. ESD CAUTION Parameter Rating
Supply Voltage 65 V Continuous Input Voltage 68 V Differential Input Voltage 500 mV Reverse Supply Voltage 0.3 V Operating Temperature Range −40°C to +125°C Storage Temperature Range −65°C to +150°C Output Short-Circuit Duration Indefinite Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. A | Page 4 of 16 Document Outline Features Applications Functional Block Diagram General Description Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Theory of Operation Comparator Offset and Hysteresis Setting the Input Threshold Voltage Input-Referred Dynamic Error Applications Typical Setup and Calculations High Side Overcurrent Detection Outline Dimensions Ordering Guide Automotive Products
