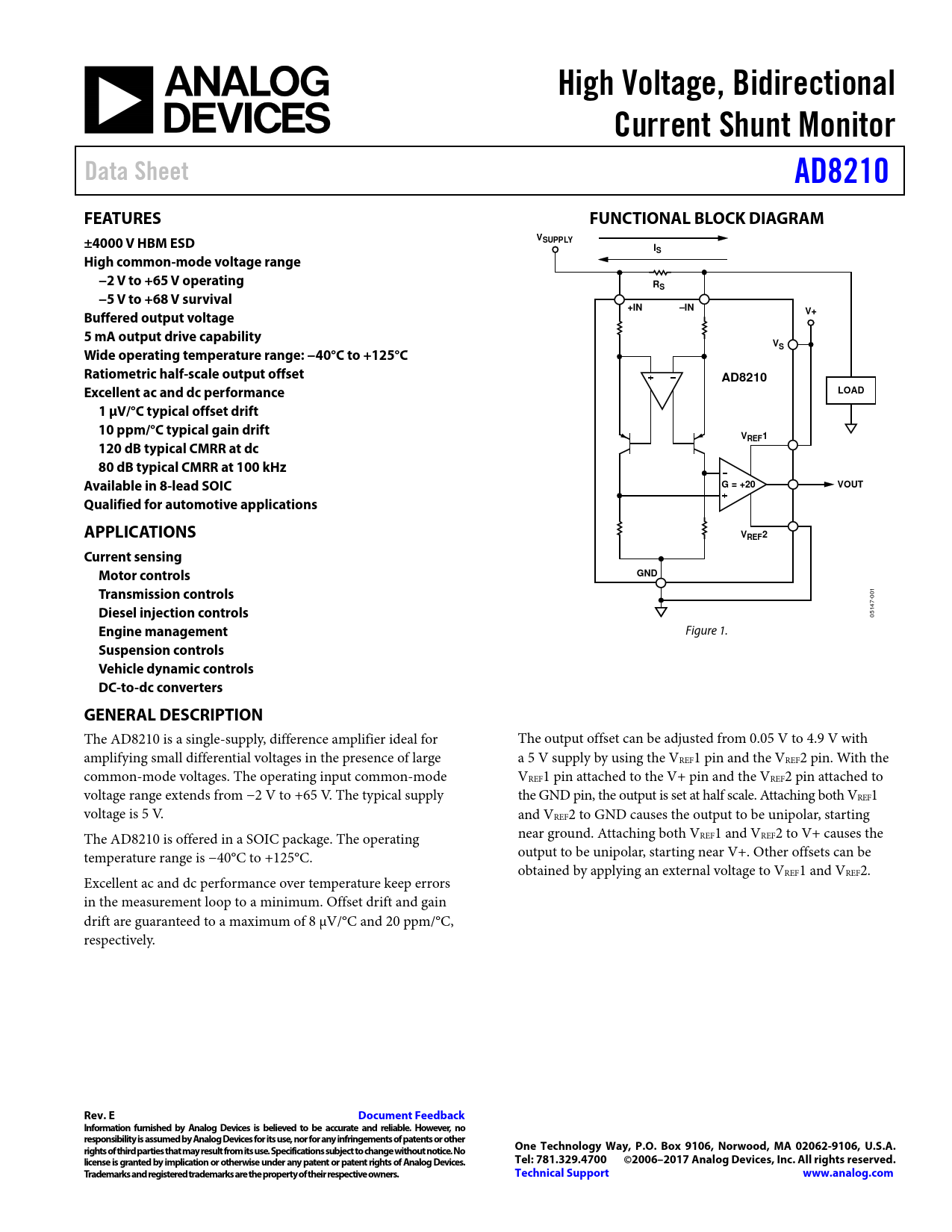

High Voltage, Bidirectional Current Shunt Monitor Data Sheet AD8210 FEATURES FUNCTIONAL BLOCK DIAGRAM ±4000 V HBM ESD VSUPPLY IS High common-mode voltage range −2 V to +65 V operating RS −5 V to +68 V survival +IN –IN Buffered output voltage V+ 5 mA output drive capability VS Wide operating temperature range: −40°C to +125°C Ratiometric half-scale output offset AD8210 Excellent ac and dc performance LOAD 1 µV/°C typical offset drift 10 ppm/°C typical gain drift VREF1 120 dB typical CMRR at dc 80 dB typical CMRR at 100 kHz Available in 8-lead SOIC G = +20 VOUT Qualified for automotive applications APPLICATIONS VREF2 Current sensing Motor controls GND Transmission controls
001
Diesel injection controls
05147-
Engine management
Figure 1.
Suspension controls Vehicle dynamic controls DC-to-dc converters GENERAL DESCRIPTION
The AD8210 is a single-supply, difference amplifier ideal for The output offset can be adjusted from 0.05 V to 4.9 V with amplifying small differential voltages in the presence of large a 5 V supply by using the VREF1 pin and the VREF2 pin. With the common-mode voltages. The operating input common-mode VREF1 pin attached to the V+ pin and the VREF2 pin attached to voltage range extends from −2 V to +65 V. The typical supply the GND pin, the output is set at half scale. Attaching both VREF1 voltage is 5 V. and VREF2 to GND causes the output to be unipolar, starting The AD8210 is offered in a SOIC package. The operating near ground. Attaching both VREF1 and VREF2 to V+ causes the temperature range is −40°C to +125°C. output to be unipolar, starting near V+. Other offsets can be obtained by applying an external voltage to VREF1 and VREF2. Excellent ac and dc performance over temperature keep errors in the measurement loop to a minimum. Offset drift and gain drift are guaranteed to a maximum of 8 µV/°C and 20 ppm/°C, respectively.
