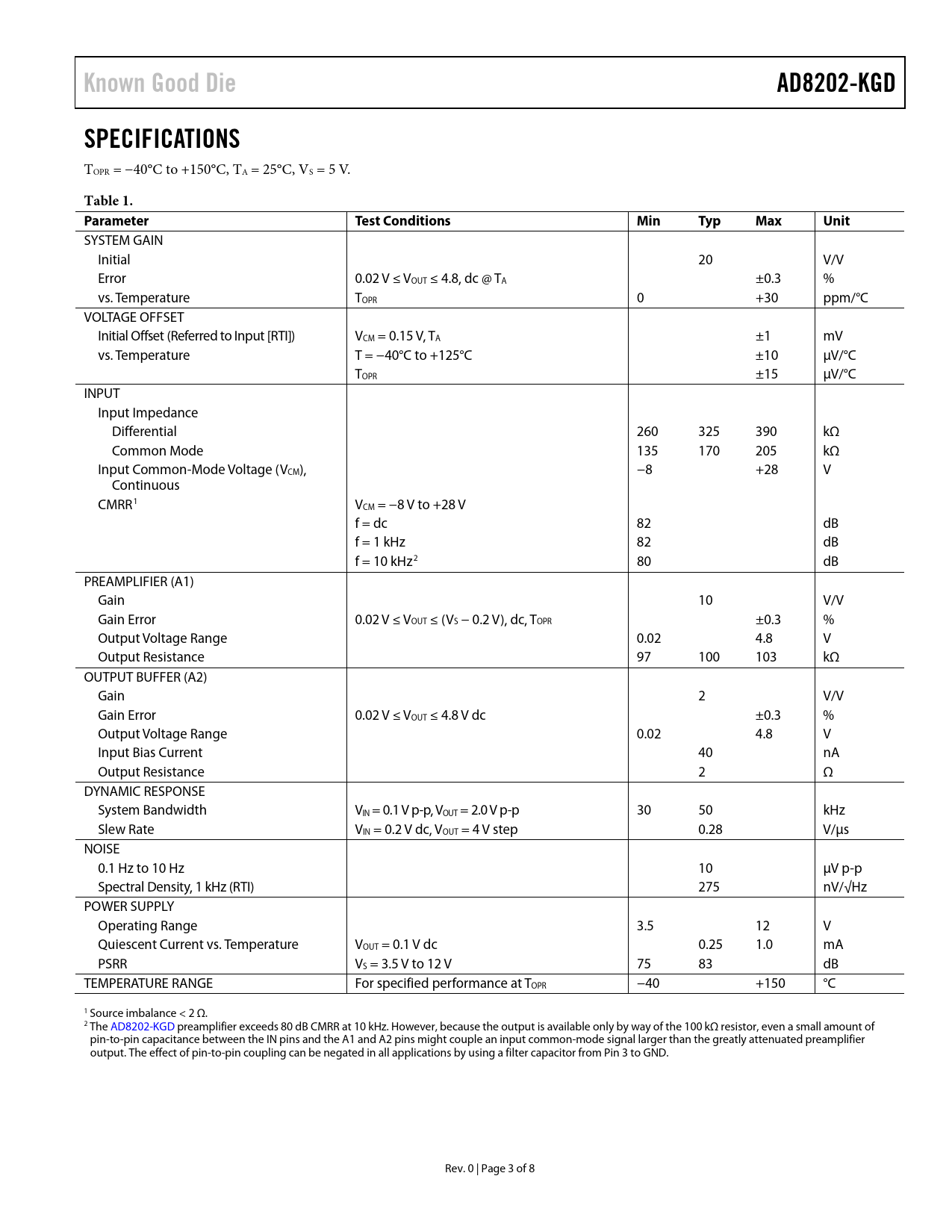

Known Good Die AD8202-KGD SPECIFICATIONS
TOPR = −40°C to +150°C, TA = 25°C, VS = 5 V.
Table 1. Parameter Test Conditions Min Typ Max Unit
SYSTEM GAIN Initial 20 V/V Error 0.02 V ≤ VOUT ≤ 4.8, dc @ TA ±0.3 % vs. Temperature TOPR 0 +30 ppm/°C VOLTAGE OFFSET Initial Offset (Referred to Input [RTI]) VCM = 0.15 V, TA ±1 mV vs. Temperature T = −40°C to +125°C ±10 µV/°C TOPR ±15 µV/°C INPUT Input Impedance Differential 260 325 390 kΩ Common Mode 135 170 205 kΩ Input Common-Mode Voltage (VCM), −8 +28 V Continuous CMRR1 VCM = −8 V to +28 V f = dc 82 dB f = 1 kHz 82 dB f = 10 kHz2 80 dB PREAMPLIFIER (A1) Gain 10 V/V Gain Error 0.02 V ≤ VOUT ≤ (VS − 0.2 V), dc, TOPR ±0.3 % Output Voltage Range 0.02 4.8 V Output Resistance 97 100 103 kΩ OUTPUT BUFFER (A2) Gain 2 V/V Gain Error 0.02 V ≤ VOUT ≤ 4.8 V dc ±0.3 % Output Voltage Range 0.02 4.8 V Input Bias Current 40 nA Output Resistance 2 Ω DYNAMIC RESPONSE System Bandwidth VIN = 0.1 V p-p, VOUT = 2.0 V p-p 30 50 kHz Slew Rate VIN = 0.2 V dc, VOUT = 4 V step 0.28 V/µs NOISE 0.1 Hz to 10 Hz 10 µV p-p Spectral Density, 1 kHz (RTI) 275 nV/√Hz POWER SUPPLY Operating Range 3.5 12 V Quiescent Current vs. Temperature VOUT = 0.1 V dc 0.25 1.0 mA PSRR VS = 3.5 V to 12 V 75 83 dB TEMPERATURE RANGE For specified performance at TOPR −40 +150 °C 1 Source imbalance < 2 Ω. 2 The AD8202-KGD preamplifier exceeds 80 dB CMRR at 10 kHz. However, because the output is available only by way of the 100 kΩ resistor, even a small amount of pin-to-pin capacitance between the IN pins and the A1 and A2 pins might couple an input common-mode signal larger than the greatly attenuated preamplifier output. The effect of pin-to-pin coupling can be negated in all applications by using a filter capacitor from Pin 3 to GND. Rev. 0 | Page 3 of 8 Document Outline Features Applications Functional Block Diagram General Description Table of Contents Revision History Specifications Absolute Maximum Ratings ESD Caution Pad Configuration and Function Descriptions Outline Dimensions Die Specifications and Assembly Recommendations Ordering Guide Automotive Products
