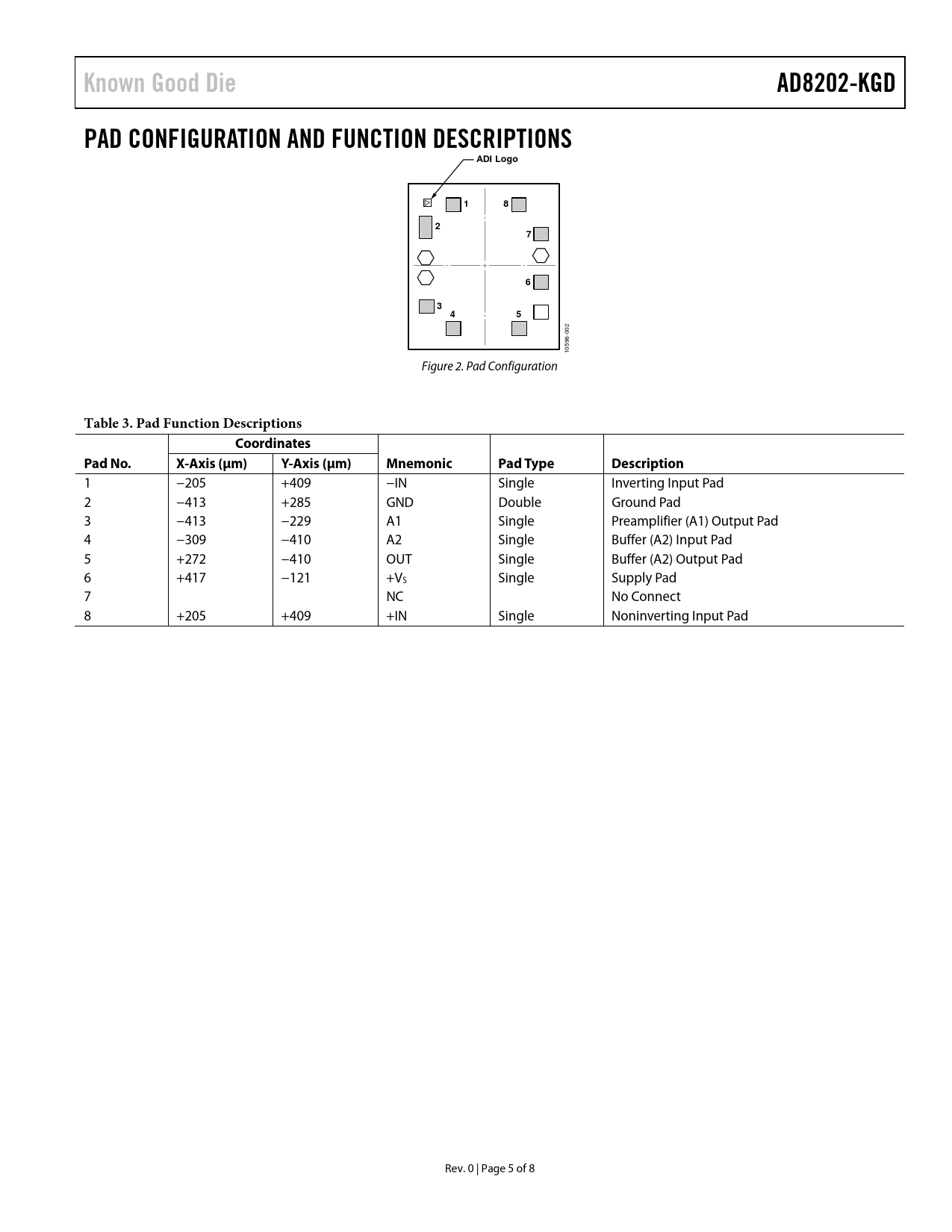

Known Good DieAD8202-KGDPAD CONFIGURATION AND FUNCTION DESCRIPTIONSADI Logo182763 45 002 10596- Figure 2. Pad Configuration Table 3. Pad Function DescriptionsCoordinatesPad No.X-Axis (µm)Y-Axis (µm)MnemonicPad TypeDescription 1 −205 +409 −IN Single Inverting Input Pad 2 −413 +285 GND Double Ground Pad 3 −413 −229 A1 Single Preamplifier (A1) Output Pad 4 −309 −410 A2 Single Buffer (A2) Input Pad 5 +272 −410 OUT Single Buffer (A2) Output Pad 6 +417 −121 +VS Single Supply Pad 7 NC No Connect 8 +205 +409 +IN Single Noninverting Input Pad Rev. 0 | Page 5 of 8 Document Outline Features Applications Functional Block Diagram General Description Table of Contents Revision History Specifications Absolute Maximum Ratings ESD Caution Pad Configuration and Function Descriptions Outline Dimensions Die Specifications and Assembly Recommendations Ordering Guide Automotive Products
