Datasheet ZPY3V9 - ZPY100 (Vishay)
| 制造商 | Vishay |
| 描述 | Zener Diodes |
| 页数 / 页 | 5 / 1 — ZPY3V9 to ZPY100. Zener Diodes. FEATURES. DESIGN SUPPORT TOOLS AVAILABLE. … |
| 文件格式/大小 | PDF / 108 Kb |
| 文件语言 | 英语 |
ZPY3V9 to ZPY100. Zener Diodes. FEATURES. DESIGN SUPPORT TOOLS AVAILABLE. D 3. 3 D. PRIMARY CHARACTERISTICS. PARAMETER. VALUE. UNIT
该数据表的模型线
文件文字版本

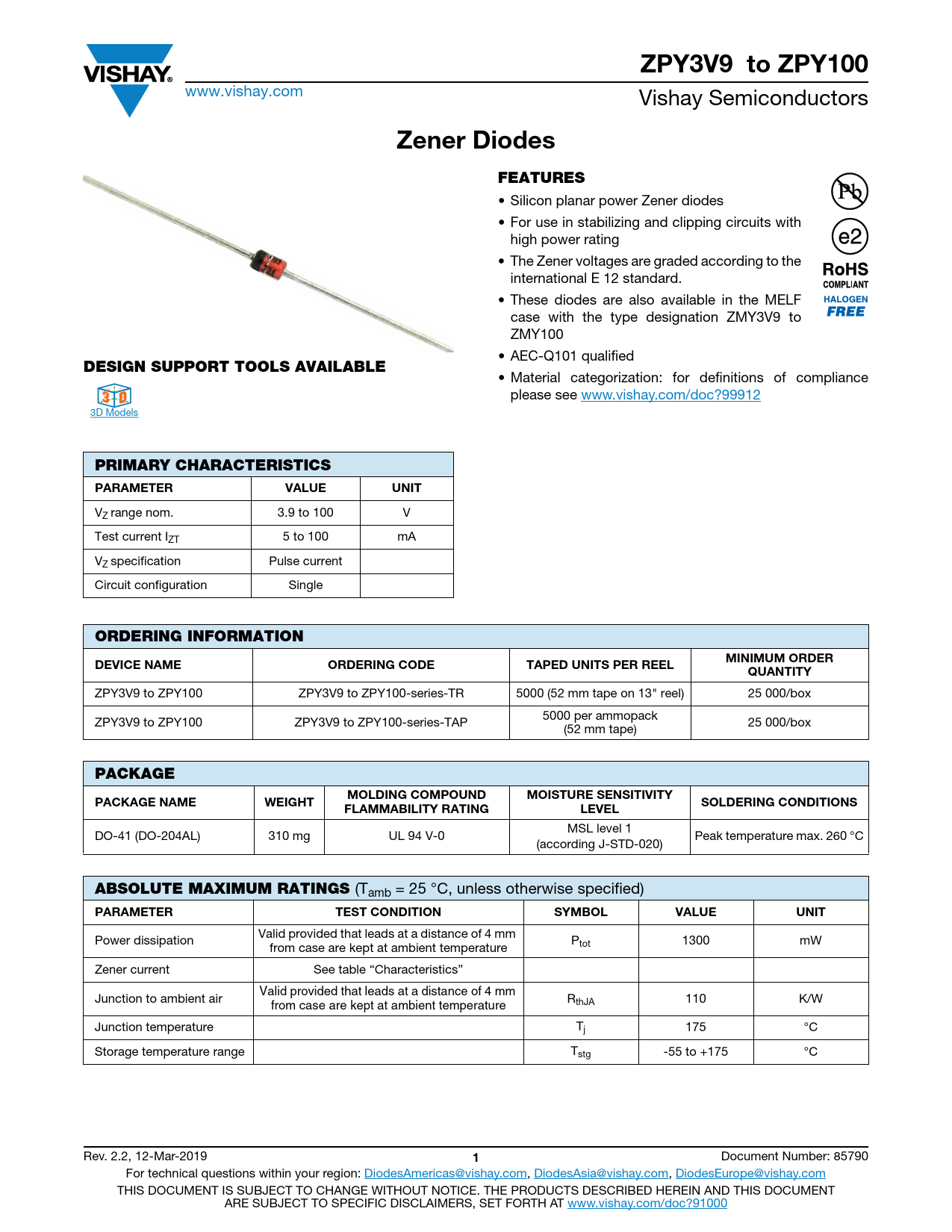

ZPY3V9 to ZPY100
www.vishay.com Vishay Semiconductors
Zener Diodes FEATURES
• Silicon planar power Zener diodes • For use in stabilizing and clipping circuits with high power rating • The Zener voltages are graded according to the international E 12 standard. • These diodes are also available in the MELF case with the type designation ZMY3V9 to ZMY100 • AEC-Q101 qualified
DESIGN SUPPORT TOOLS AVAILABLE
• Material categorization: for definitions of compliance
D 3
please see www.vishay.com/doc?99912
3 D
3D Models
PRIMARY CHARACTERISTICS PARAMETER VALUE UNIT
VZ range nom. 3.9 to 100 V Test current IZT 5 to 100 mA VZ specification Pulse current Circuit configuration Single
ORDERING INFORMATION MINIMUM ORDER DEVICE NAME ORDERING CODE TAPED UNITS PER REEL QUANTITY
ZPY3V9 to ZPY100 ZPY3V9 to ZPY100-series-TR 5000 (52 mm tape on 13" reel) 25 000/box 5000 per ammopack ZPY3V9 to ZPY100 ZPY3V9 to ZPY100-series-TAP 25 000/box (52 mm tape)
PACKAGE MOLDING COMPOUND MOISTURE SENSITIVITY PACKAGE NAME WEIGHT SOLDERING CONDITIONS FLAMMABILITY RATING LEVEL
MSL level 1 DO-41 (DO-204AL) 310 mg UL 94 V-0 Peak temperature max. 260 °C (according J-STD-020)
ABSOLUTE MAXIMUM RATINGS
(Tamb = 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION SYMBOL VALUE UNIT
Valid provided that leads at a distance of 4 mm Power dissipation P from case are kept at ambient temperature tot 1300 mW Zener current See table “Characteristics” Valid provided that leads at a distance of 4 mm Junction to ambient air R from case are kept at ambient temperature thJA 110 K/W Junction temperature Tj 175 °C Storage temperature range Tstg -55 to +175 °C Rev. 2.2, 12-Mar-2019
1
Document Number: 85790 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
