Datasheet MMBT4401 (Diodes) - 6
| 制造商 | Diodes |
| 描述 | 40V NPN SMALL SIGNAL TRANSISTOR IN SOT23 |
| 页数 / 页 | 7 / 6 — MMBT4401. Package Outline Dimensions. SOT23. Dim Min Max Typ. All … |
| 文件格式/大小 | PDF / 264 Kb |
| 文件语言 | 英语 |

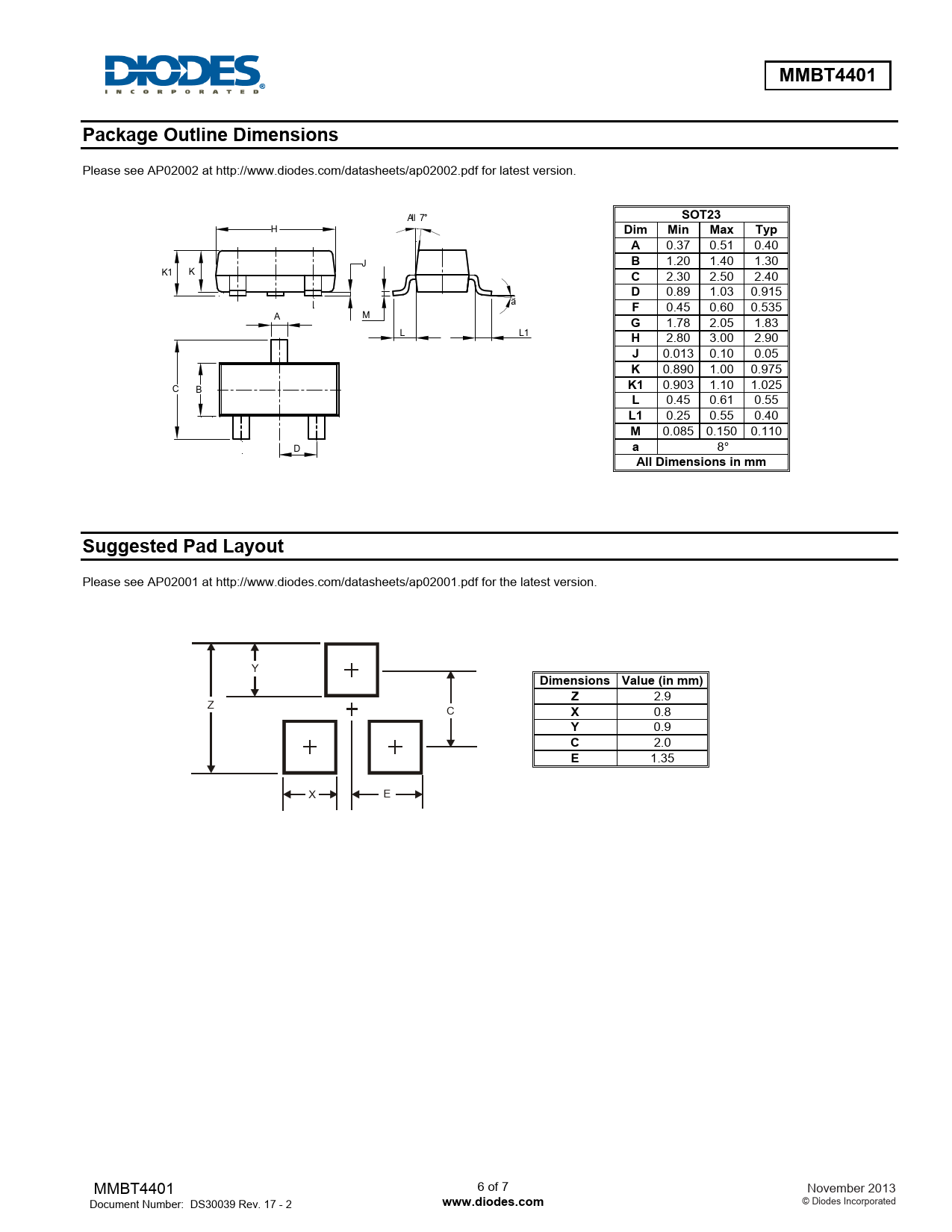

MMBT4401. Package Outline Dimensions. SOT23. Dim Min Max Typ. All Dimensions in mm. Suggested Pad Layout. Dimensions Value (in mm)
该数据表的模型线
文件文字版本
MMBT4401 Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version. A l 7 °
SOT23
H
Dim Min Max Typ A
0.37 0.51 0.40 J
B
1.20 1.40 1.30 K 1 K
C
2.30 2.50 2.40 a
D
0.89 1.03 0.915 A M
F
0.45 0.60 0.535 L L 1
G
1.78 2.05 1.83
H
2.80 3.00 2.90
J
0.013 0.10 0.05
K
0.890 1.00 0.975 C B
K1
0.903 1.10 1.025
L
0.45 0.61 0.55
L1
0.25 0.55 0.40
M
0.085 0.150 0.110 D
a
8°
All Dimensions in mm Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version. Y
Dimensions Value (in mm) Z
2.9 Z C
X
0.8
Y
0.9
C
2.0
E
1.35 X E MMBT4401 6 of 7 November 2013 Document Number: DS30039 Rev. 17 - 2
www.diodes.com
© Diodes Incorporated
