Datasheet 241 (Signal Transformer)
| 制造商 | Signal Transformer |
| 描述 | Two-4-One Power Transformers. Split Bobbin Construction Providing Superior Isolation |
| 页数 / 页 | 3 / 1 — Split Bobbin Construction Providing Superior Isolation. General … |
| 文件格式/大小 | PDF / 1.0 Mb |
| 文件语言 | 英语 |
Split Bobbin Construction Providing Superior Isolation. General Specifications. Agency Certifications. RoHS. belfuse.com/signal
该数据表的模型线
- 241-3-10 241-3-12 241-3-120 241-3-16 241-3-20 241-3-24 241-3-28 241-3-36 241-3-48 241-3-56 241-4-10 241-4-12 241-4-120 241-4-16 241-4-20 241-4-24 241-4-28 241-4-36 241-4-48 241-4-56 241-5-10 241-5-12 241-5-120 241-5-16 241-5-20 241-5-24 241-5-28 241-5-36 241-5-48 241-5-56 241-6-10 241-6-12 241-6-120 241-6-16 241-6-20 241-6-24 241-6-28 241-6-36 241-6-48 241-6-56 241-7-10 241-7-12 241-7-120 241-7-16 241-7-20 241-7-24 241-7-28 241-7-36 241-7-48 241-7-56 241-8-10 241-8-12 241-8-120 241-8-16 241-8-20 241-8-24 241-8-28 241-8-36 241-8-48 241-8-56 DP-241-4-10 DP-241-4-12 DP-241-4-120 DP-241-4-16 DP-241-4-20 DP-241-4-24 DP-241-4-28 DP-241-4-36 DP-241-4-48 DP-241-4-56 DP-241-5-10 DP-241-5-12 DP-241-5-120 DP-241-5-16 DP-241-5-20 DP-241-5-24 DP-241-5-28 DP-241-5-36 DP-241-5-48 DP-241-5-56 DP-241-6-10 DP-241-6-12 DP-241-6-120 DP-241-6-16 DP-241-6-20 DP-241-6-24 DP-241-6-28 DP-241-6-36 DP-241-6-48 DP-241-6-56 DP-241-7-10 DP-241-7-12 DP-241-7-120 DP-241-7-16 DP-241-7-20 DP-241-7-24 DP-241-7-28 DP-241-7-36 DP-241-7-4 DP-241-7-56 DP-241-8-10 DP-241-8-12 DP-241-8-120 DP-241-8-16 DP-241-8-20 DP-241-8-24 DP-241-8-28 DP-241-8-36 DP-241-8-48 DP-241-8-56
文件文字版本

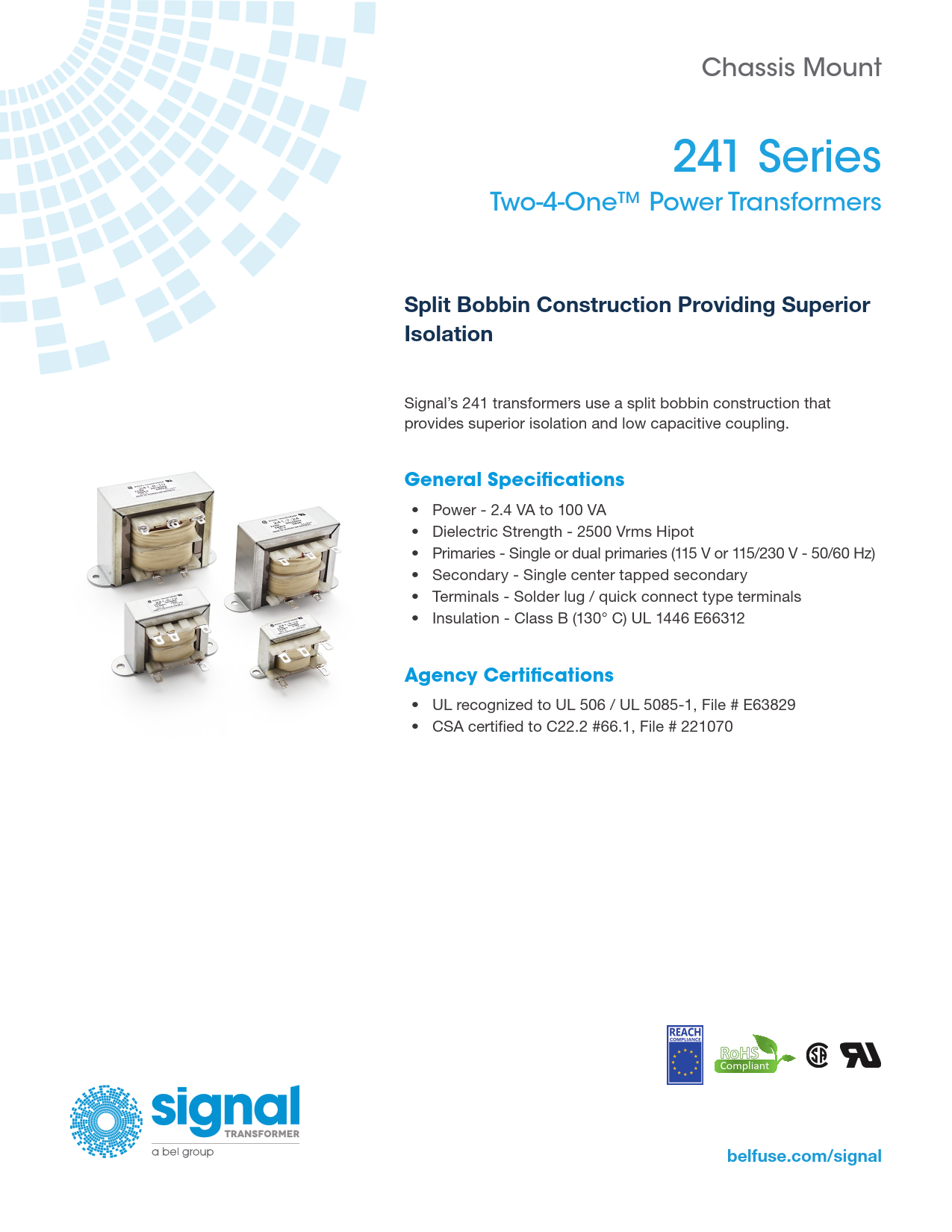

Chassis Mount 241 Series Two-4-One™ Power Transformers
Split Bobbin Construction Providing Superior Isolation
Signal’s 241 transformers use a split bobbin construction that provides superior isolation and low capacitive coupling.
General Specifications
• Power - 2.4 VA to 100 VA • Dielectric Strength - 2500 Vrms Hipot • Primaries - Single or dual primaries (115 V or 115/230 V - 50/60 Hz) • Secondary - Single center tapped secondary • Terminals - Solder lug / quick connect type terminals • Insulation - Class B (130° C) UL 1446 E66312
Agency Certifications
• UL recognized to UL 506 / UL 5085-1, File # E63829 • CSA certified to C22.2 #66.1, File # 221070
RoHS
Compliant
