| 描述 | Automotive Grade Real-time Clock |
| 页数 / 页 | 19 / 9 — PT7C4563BQ. Registers. 1. Allocation of Registers. Caution Points:. … |
| 文件格式/大小 | PDF / 1.0 Mb |
| 文件语言 | 英语 |
PT7C4563BQ. Registers. 1. Allocation of Registers. Caution Points:. www.diodes.com
该数据表的模型线
文件文字版本

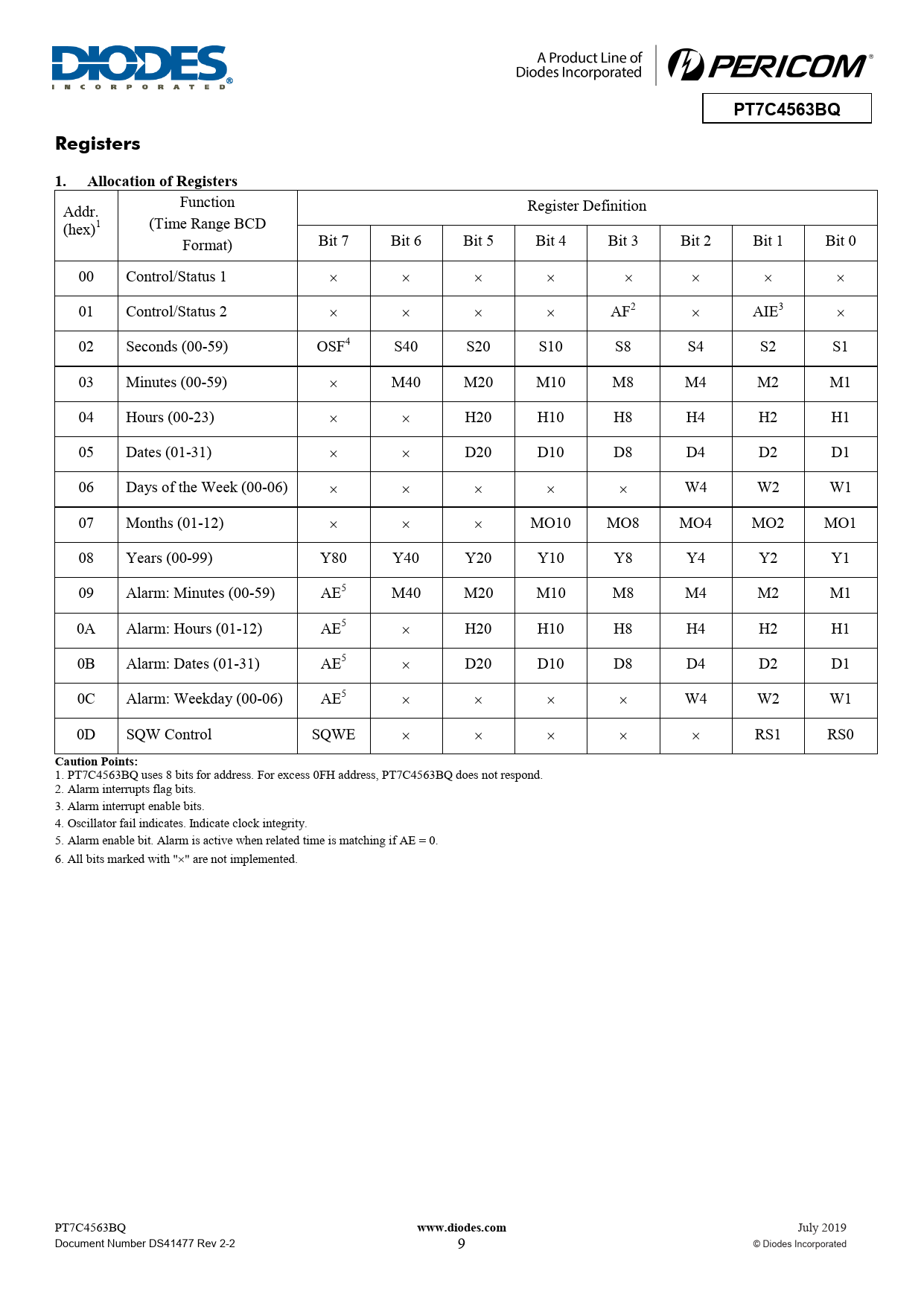

PT7C4563BQ Registers 1. Allocation of Registers
Addr. Function Register Definition (hex)1 (Time Range BCD Format) Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 00 Control/Status 1 × × × × × × × × 01 Control/Status 2 × × × × AF2 × AIE3 × 02 Seconds (00-59) OSF4 S40 S20 S10 S8 S4 S2 S1 03 Minutes (00-59) × M40 M20 M10 M8 M4 M2 M1 04 Hours (00-23) × × H20 H10 H8 H4 H2 H1 05 Dates (01-31) × × D20 D10 D8 D4 D2 D1 06 Days of the Week (00-06) × × × × × W4 W2 W1 07 Months (01-12) × × × MO10 MO8 MO4 MO2 MO1 08 Years (00-99) Y80 Y40 Y20 Y10 Y8 Y4 Y2 Y1 09 Alarm: Minutes (00-59) AE5 M40 M20 M10 M8 M4 M2 M1 0A Alarm: Hours (01-12) AE5 × H20 H10 H8 H4 H2 H1 0B Alarm: Dates (01-31) AE5 × D20 D10 D8 D4 D2 D1 0C Alarm: Weekday (00-06) AE5 × × × × W4 W2 W1 0D SQW Control SQWE × × × × × RS1 RS0
Caution Points:
1. PT7C4563BQ uses 8 bits for address. For excess 0FH address, PT7C4563BQ does not respond. 2. Alarm interrupts flag bits. 3. Alarm interrupt enable bits. 4. Oscillator fail indicates. Indicate clock integrity. 5. Alarm enable bit. Alarm is active when related time is matching if AE = 0. 6. All bits marked with "×" are not implemented. PT7C4563BQ
