Datasheet APR348 (Diodes) - 3
| 制造商 | Diodes |
| 描述 | Secondary Side Synchronous Rectification Controller |
| 页数 / 页 | 9 / 3 — APR348. Absolute Maximum Ratings. Symbol. Parameter. Rating. Unit. C U. D … |
| 文件格式/大小 | PDF / 523 Kb |
| 文件语言 | 英语 |
APR348. Absolute Maximum Ratings. Symbol. Parameter. Rating. Unit. C U. D O. R P. W E. Recommended Operating Conditions. Min. Max. www.diodes.com
该数据表的模型线
文件文字版本

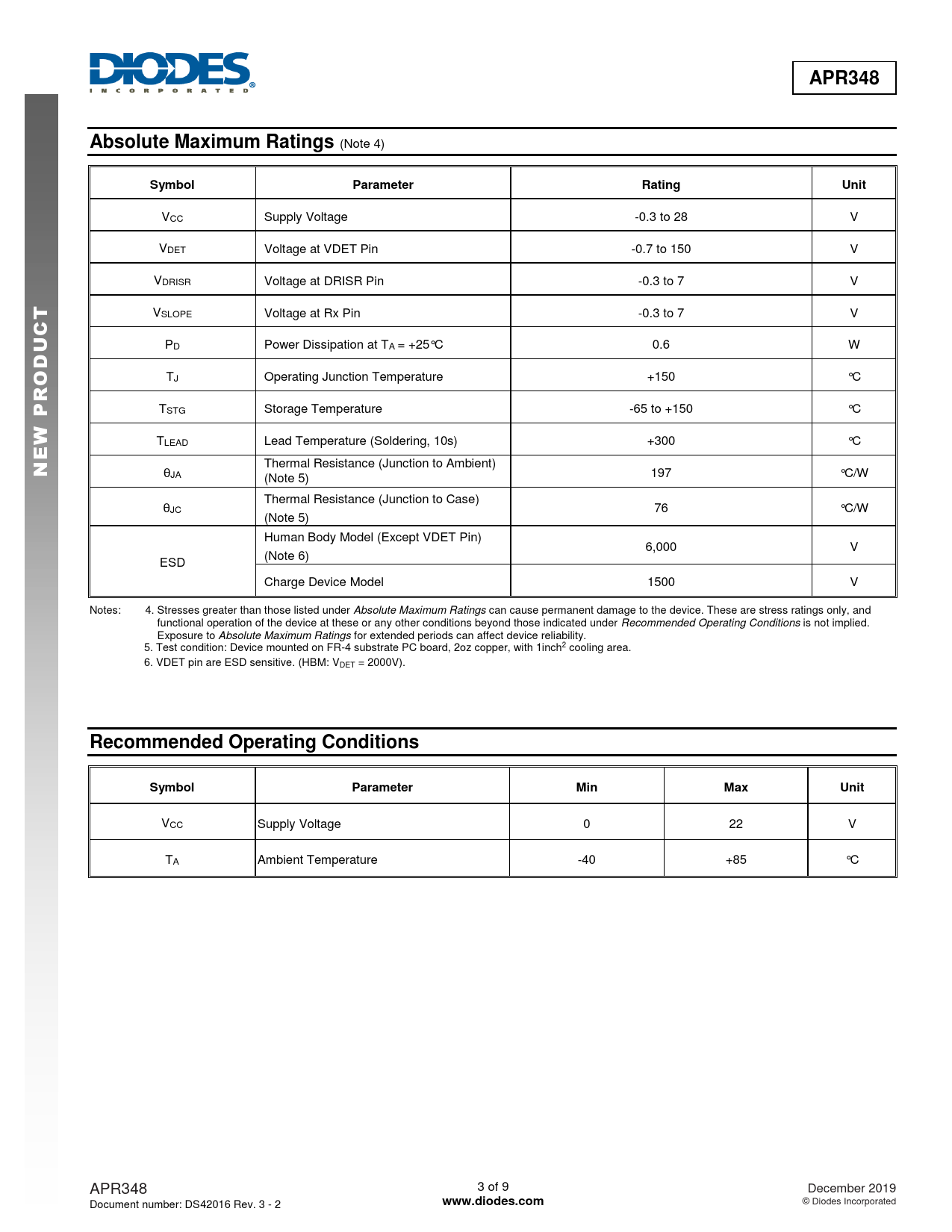

APR348 Absolute Maximum Ratings
(Note 4)
Symbol Parameter Rating Unit
VCC Supply Voltage -0.3 to 28 V VDET Voltage at VDET Pin -0.7 to 150 V VDRISR Voltage at DRISR Pin -0.3 to 7 V
T
VSLOPE Voltage at Rx Pin -0.3 to 7 V
C U
PD Power Dissipation at TA = +25°C 0.6 W
D O
TJ Operating Junction Temperature +150 °C
R P
TSTG Storage Temperature -65 to +150 °C
W E
TLEAD Lead Temperature (Soldering, 10s) +300 °C
N
Thermal Resistance (Junction to Ambient) θJA (Note 5) 197 °C/W Thermal Resistance (Junction to Case) θJC 76 °C/W (Note 5) Human Body Model (Except VDET Pin) 6,000 V (Note 6) ESD Charge Device Model 1500 V Notes: 4. Stresses greater than those listed under Absolute Maximum Ratings can cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to Absolute Maximum Ratings for extended periods can affect device reliability. 5. Test condition: Device mounted on FR-4 substrate PC board, 2oz copper, with 1inch2 cooling area. 6. VDET pin are ESD sensitive. (HBM: VDET = 2000V).
Recommended Operating Conditions Symbol Parameter Min Max Unit
VCC Supply Voltage 0 22 V TA Ambient Temperature -40 +85 °C APR348 3 of 9 December 2019 Document number: DS42016 Rev. 3 - 2
www.diodes.com
© Diodes Incorporated
