Datasheet LPSA 300 (Vishay)
| 制造商 | Vishay |
| 描述 | Power Resistor for Mounting Onto a Heatsink Thick Film Technology |
| 页数 / 页 | 6 / 1 — LPSA 300. Power Resistor for Mounting Onto a Heatsink. Thick Film … |
| 文件格式/大小 | PDF / 114 Kb |
| 文件语言 | 英语 |
LPSA 300. Power Resistor for Mounting Onto a Heatsink. Thick Film Technology. FEATURES. AEC-Q200 qualified. ADDITIONAL RESOURCES
该数据表的模型线
文件文字版本

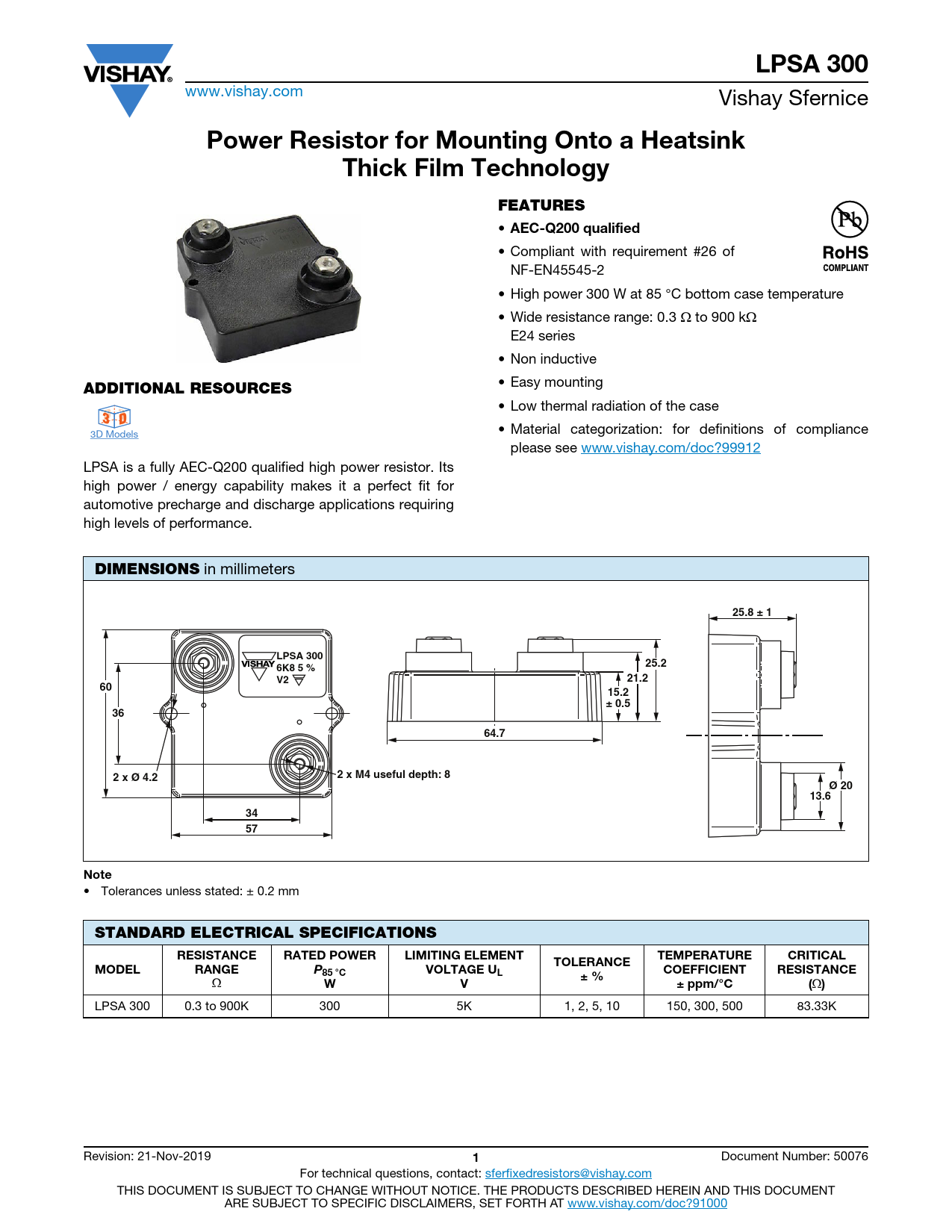

LPSA 300
www.vishay.com Vishay Sfernice
Power Resistor for Mounting Onto a Heatsink Thick Film Technology FEATURES
•
AEC-Q200 qualified
• Compliant with requirement #26 of NF-EN45545-2 • High power 300 W at 85 °C bottom case temperature • Wide resistance range: 0.3 to 900 k E24 series • Non inductive
ADDITIONAL RESOURCES
• Easy mounting • Low thermal radiation of the case
D 3 3 D
• Material categorization: for definitions of compliance 3D Models please see www.vishay.com/doc?99912 LPSA is a fully AEC-Q200 qualified high power resistor. Its high power / energy capability makes it a perfect fit for automotive precharge and discharge applications requiring high levels of performance.
DIMENSIONS
in millimeters
25.8 ± 1 LPSA 300 6K8 5 % 25.2 V2 21.2 60 15.2 ± 0.5 36 64.7 2 x M4 useful depth: 8 2 x Ø 4.2 Ø 20 13.6 34 57 Note
• Tolerances unless stated: ± 0.2 mm
STANDARD ELECTRICAL SPECIFICATIONS RESISTANCE RATED POWER LIMITING ELEMENT TEMPERATURE CRITICAL TOLERANCE MODEL RANGE P 85 °C VOLTAGE UL COEFFICIENT RESISTANCE ± % W V ± ppm/°C ( )
LPSA 300 0.3 to 900K 300 5K 1, 2, 5, 10 150, 300, 500 83.33K Revision: 21-Nov-2019
1
Document Number: 50076 For technical questions, contact: sferfixedresistors@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
