Datasheet KW CULNM1.TG - OSLON Boost HL (OSRAM)
| 制造商 | OSRAM |
| 描述 | OSLON Boost HL LED utilizes the high current capability of the latest chip generation in a special package for good thermal behaviour |
| 页数 / 页 | 25 / 1 — Produktdatenblatt. |. Version. 1.1. www.osram-os.com. KW. CULNM1.TG. KW. … |
| 文件格式/大小 | PDF / 1.4 Mb |
| 文件语言 | 英语 |
Produktdatenblatt. |. Version. 1.1. www.osram-os.com. KW. CULNM1.TG. KW. CULNM1.TG. OSLON®. Boost. HL. OSLON. Boost. HL. utilizes. the. high. current
该数据表的模型线
文件文字版本

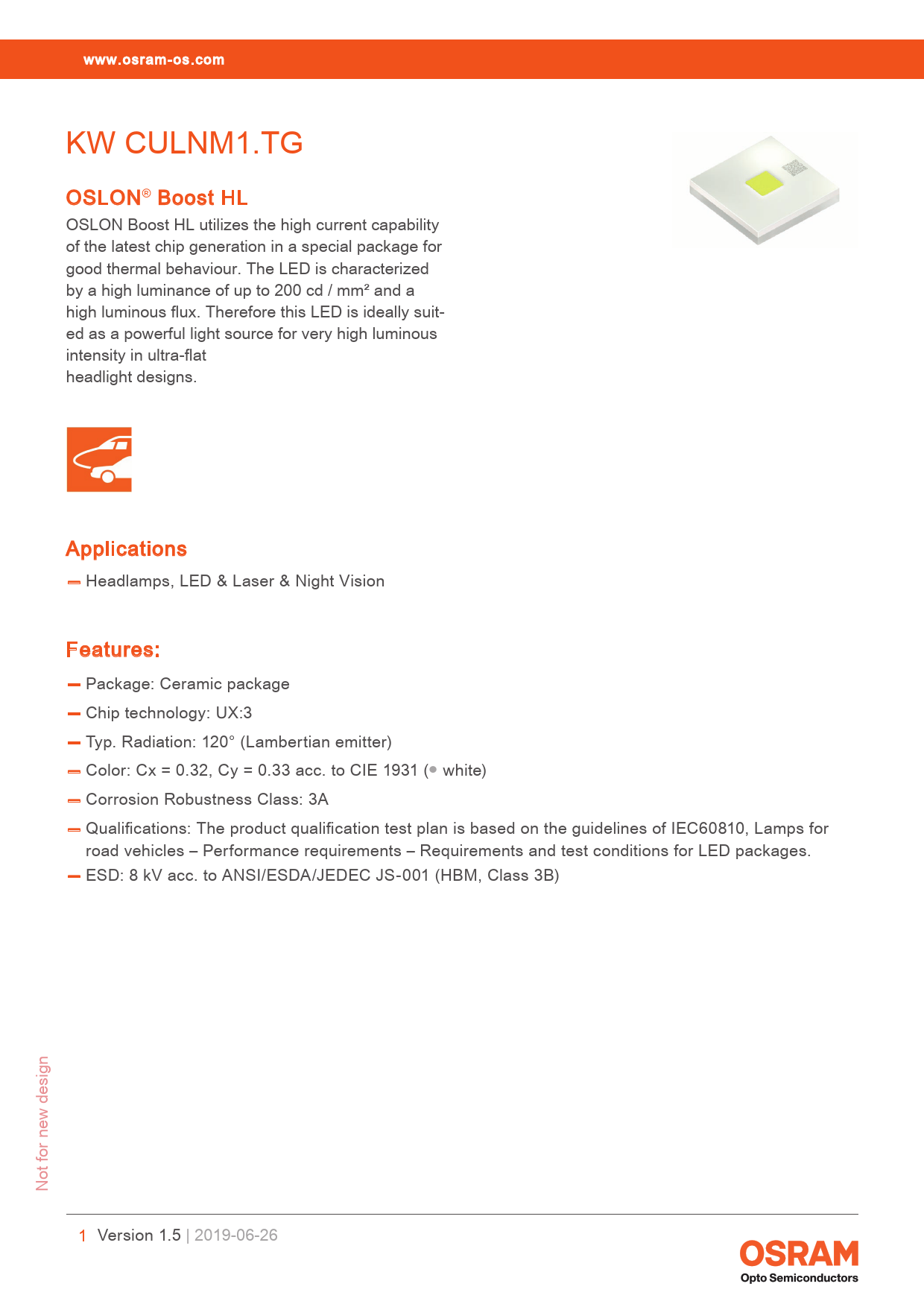

Produktdatenblatt | Version 1.1 www.osram-os.com KW CULNM1.TG KW CULNM1.TG OSLON® Boost HL OSLON Boost HL utilizes the high current capability of the latest chip generation in a special package for good thermal behaviour. The LED is characterized by a high luminance of up to 200 cd / mm² and a high luminous flux. Therefore this LED is ideally suit- ed as a powerful light source for very high luminous intensity in ultra-flat headlight designs. Applications
—
Headlamps, LED & Laser & Night Vision Features:
—
Package: Ceramic package
—
Chip technology: UX:3
—
Typ. Radiation: 120° (Lambertian emitter)
—
Color: Cx = 0.32, Cy = 0.33 acc. to CIE 1931 (● white)
—
Corrosion Robustness Class: 3A
—
Qualifications: The product qualification test plan is based on the guidelines of IEC60810, Lamps for road vehicles – Performance requirements – Requirements and test conditions for LED packages.
—
ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B) Not for new design 1 Version 1.5 | 2019-06-26
—
Headlamps, LED & Laser & Night Vision Features:
—
Package: Ceramic package
—
Chip technology: UX:3
—
Typ. Radiation: 120° (Lambertian emitter)
—
Color: Cx = 0.32, Cy = 0.33 acc. to CIE 1931 (● white)
—
Corrosion Robustness Class: 3A
—
Qualifications: The product qualification test plan is based on the guidelines of IEC60810, Lamps for road vehicles – Performance requirements – Requirements and test conditions for LED packages.
—
ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B) Not for new design 1 Version 1.5 | 2019-06-26
