Datasheet AK9703AJ (Asahi Kasei Microdevices) - 6

制造商Asahi Kasei Microdevices
描述IR LED for NDIR Gas Sensing
页数 / 页11 / 6 — [AK9703AJ]. Table. 9.3. Electrical. Characteristics. (Reference). Unless. …
文件格式/大小PDF / 703 Kb
文件语言英语

[AK9703AJ]. Table. 9.3. Electrical. Characteristics. (Reference). Unless. otherwise. specified,. Ta. =. 25C. Parameter. Symbol. Min. Typ. Max. Unit. Note

[AK9703AJ] Table 9.3 Electrical Characteristics (Reference) Unless otherwise specified, Ta = 25C Parameter Symbol Min Typ Max Unit Note

该数据表的模型线

文件文字版本

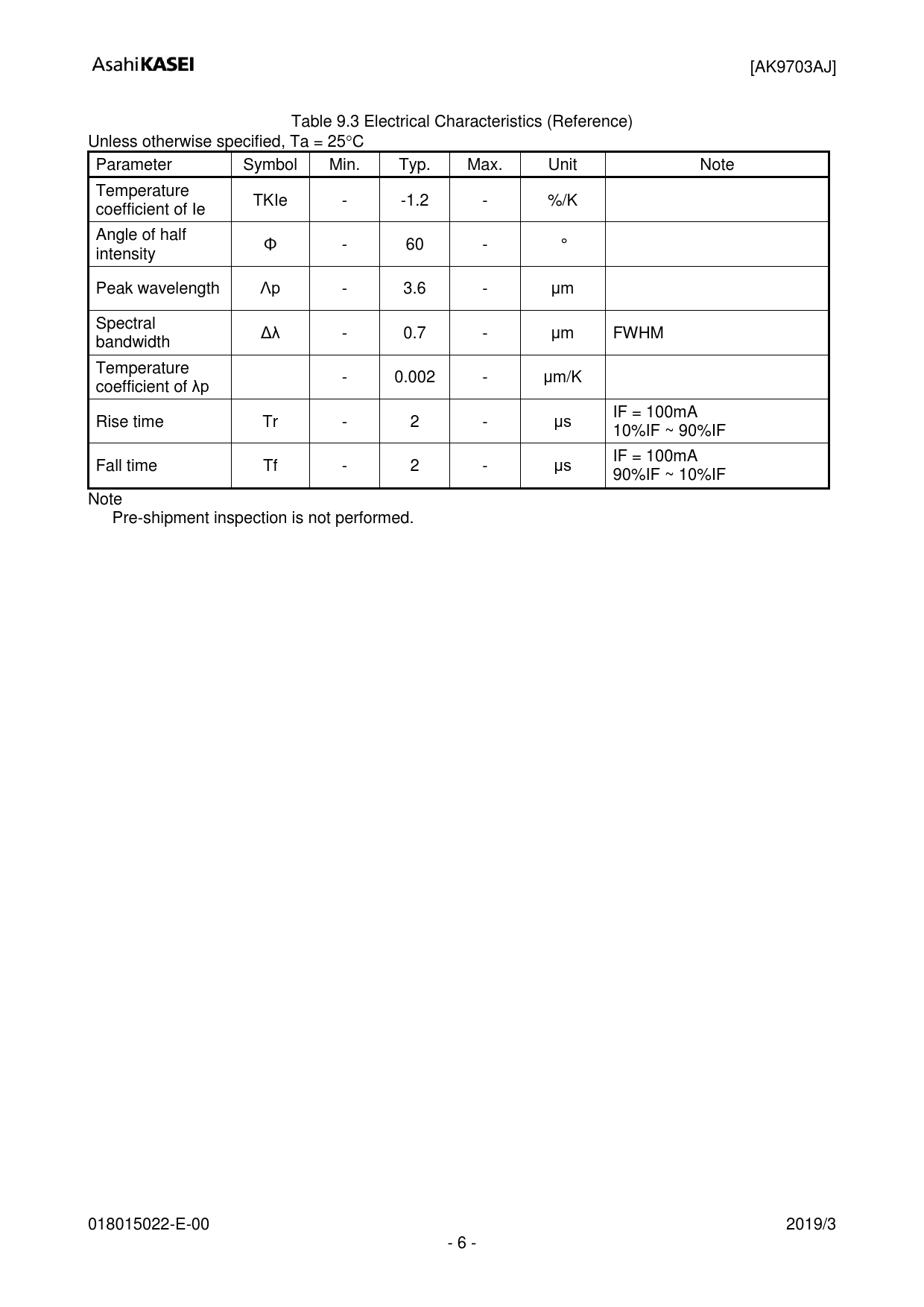

[AK9703AJ] Table 9.3 Electrical Characteristics (Reference) Unless otherwise specified, Ta = 25C Parameter Symbol Min. Typ. Max. Unit Note Temperature TKIe - -1.2 - %/K coefficient of Ie Angle of half Φ - 60 - ° intensity Peak wavelength Λp - 3.6 - μm Spectral Δλ - 0.7 - μm FWHM bandwidth Temperature - 0.002 - μm/K coefficient of λp IF = 100mA Rise time Tr - 2 - μs 10%IF ~ 90%IF IF = 100mA Fall time Tf - 2 - μs 90%IF ~ 10%IF Note Pre-shipment inspection is not performed. 018015022-E-00 2019/3 - 6 -
