Datasheet AK9703AJ (Asahi Kasei Microdevices) - 8
| 制造商 | Asahi Kasei Microdevices |
| 描述 | IR LED for NDIR Gas Sensing |
| 页数 / 页 | 11 / 8 — 11. Package. 11.1. Outline Dimensions. 11.2. Pad Dimensions |
| 文件格式/大小 | PDF / 703 Kb |
| 文件语言 | 英语 |
11. Package. 11.1. Outline Dimensions. 11.2. Pad Dimensions
该数据表的模型线
文件文字版本
[AK9703AJ]

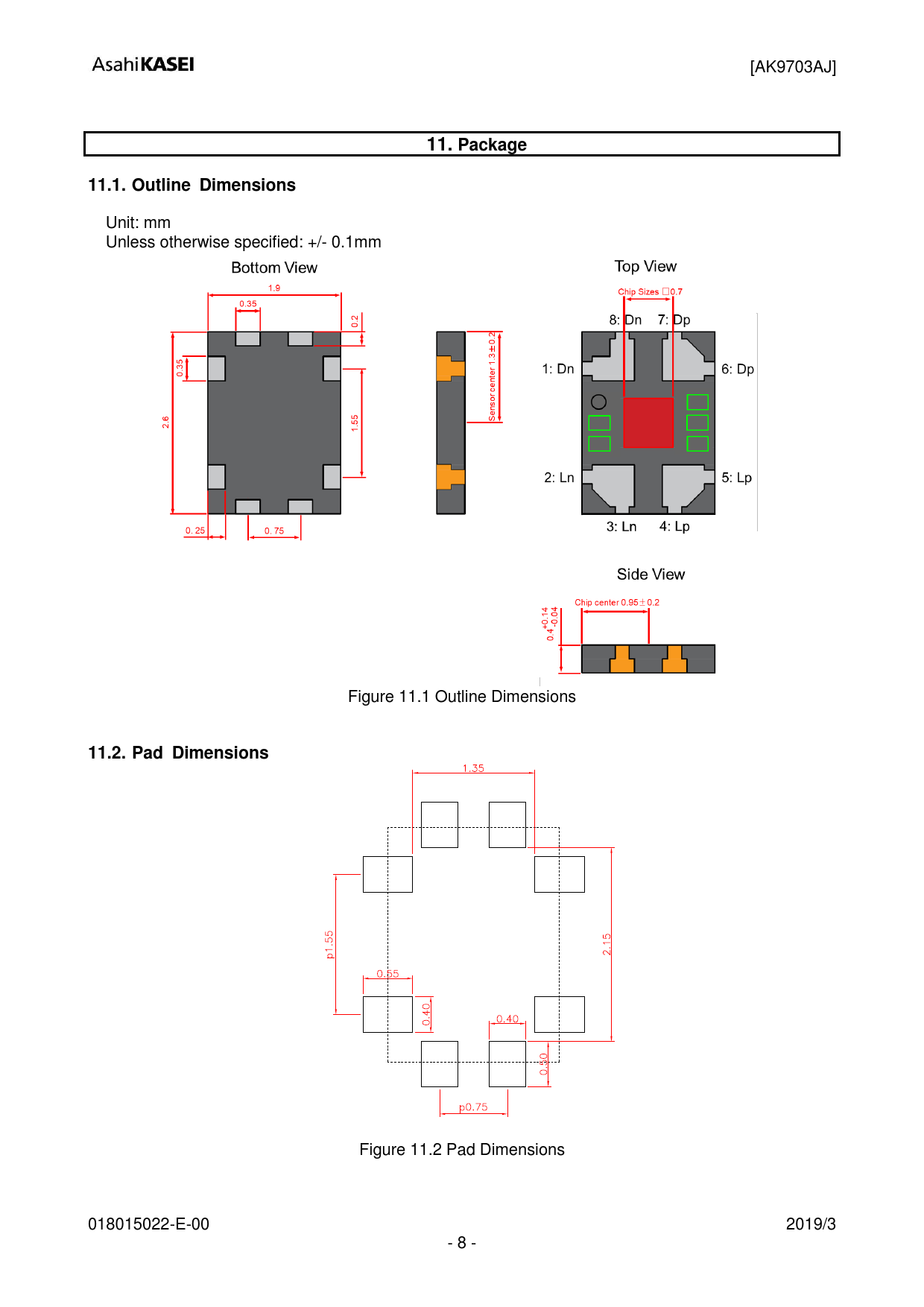

11. Package 11.1. Outline Dimensions
Unit: mm Unless otherwise specified: +/- 0.1mm Figure 11.1 Outline Dimensions
11.2. Pad Dimensions
Figure 11.2 Pad Dimensions 018015022-E-00 2019/3 - 8 -
11. Package 11.1. Outline Dimensions
Unit: mm Unless otherwise specified: +/- 0.1mm Figure 11.1 Outline Dimensions
11.2. Pad Dimensions
Figure 11.2 Pad Dimensions 018015022-E-00 2019/3 - 8 -
