FDA901. Package information. 4.1. LQFP64 (10x10x1.4 mm exp. pad up) package information
该数据表的模型线
文件文字版本
FDA901 Package information 4 Package information
In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK® packages, depending on their level of environmental compliance. ECOPACK® specifications, grade definitions and product status are available at: www.st.com. ECOPACK® is an ST trademark.

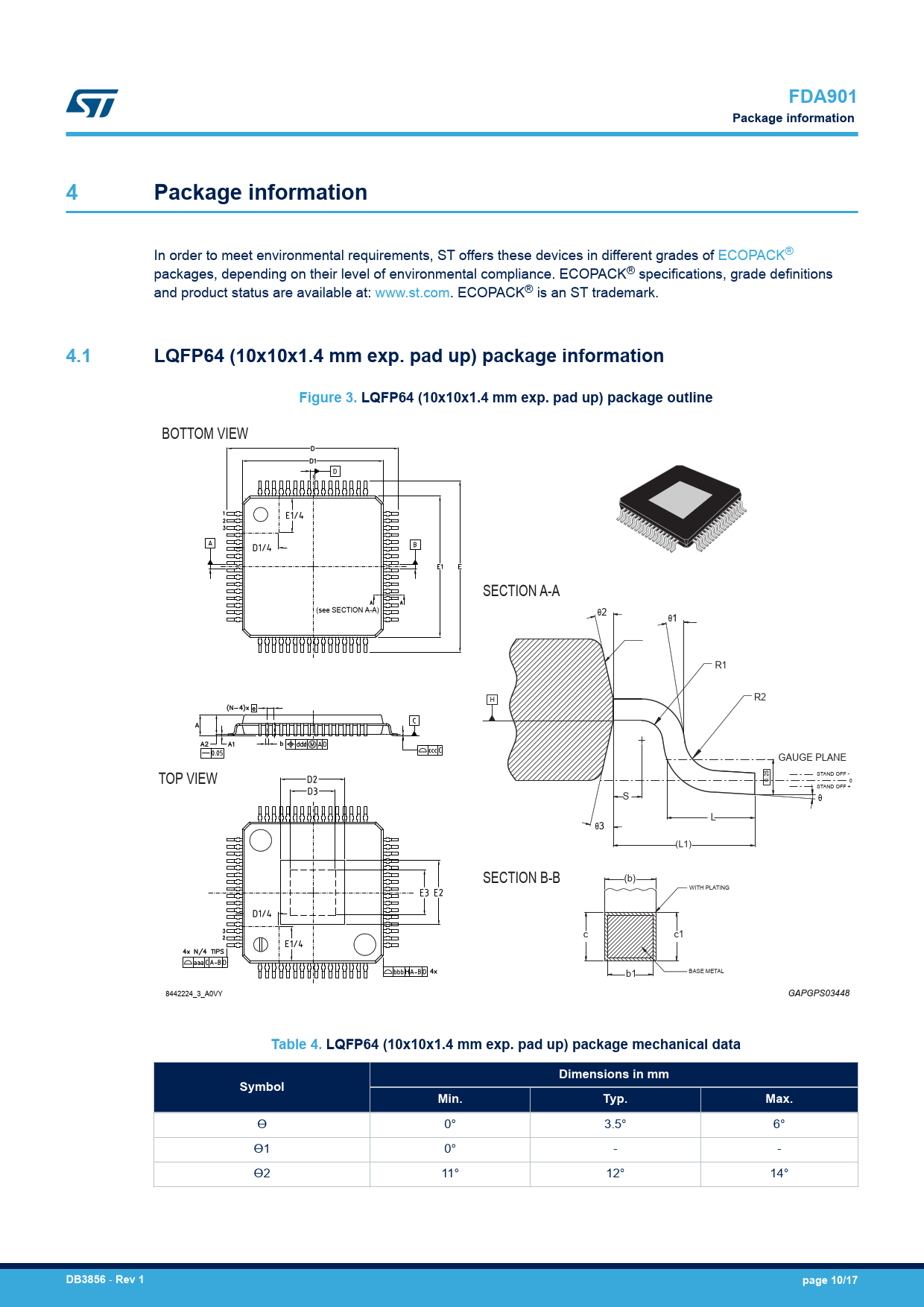

4.1 LQFP64 (10x10x1.4 mm exp. pad up) package information Figure 3. LQFP64 (10x10x1.4 mm exp. pad up) package outline
BOTTOM VIEW SECTION A-A (see SECTION A-A) θ2 θ1 R1 H R2 GAUGE PLANE TOP VIEW STAND OFF - 0.25 0 STAND OFF + S θ L θ3 (L1) SECTION B-B (b) WITH PLATING c c1 b1 BASE METAL 8442224_3_A0VY GAPGPS03448
Table 4. LQFP64 (10x10x1.4 mm exp. pad up) package mechanical data Dimensions in mm Symbol Min. Typ. Max.
Ө 0° 3.5° 6° Ө1 0° - - Ө2 11° 12° 14°
DB3856
-
Rev 1 page 10/17
