Datasheet AD1939 (Analog Devices) - 6
| 制造商 | Analog Devices |
| 描述 | 4 ADC/8 DAC with PLL, 192 kHz, 24-Bit Codec |
| 页数 / 页 | 32 / 6 — AD1939. Data Sheet. DIGITAL FILTERS Table 6. Parameter. Mode. Factor. … |
| 修订版 | E |
| 文件格式/大小 | PDF / 490 Kb |
| 文件语言 | 英语 |

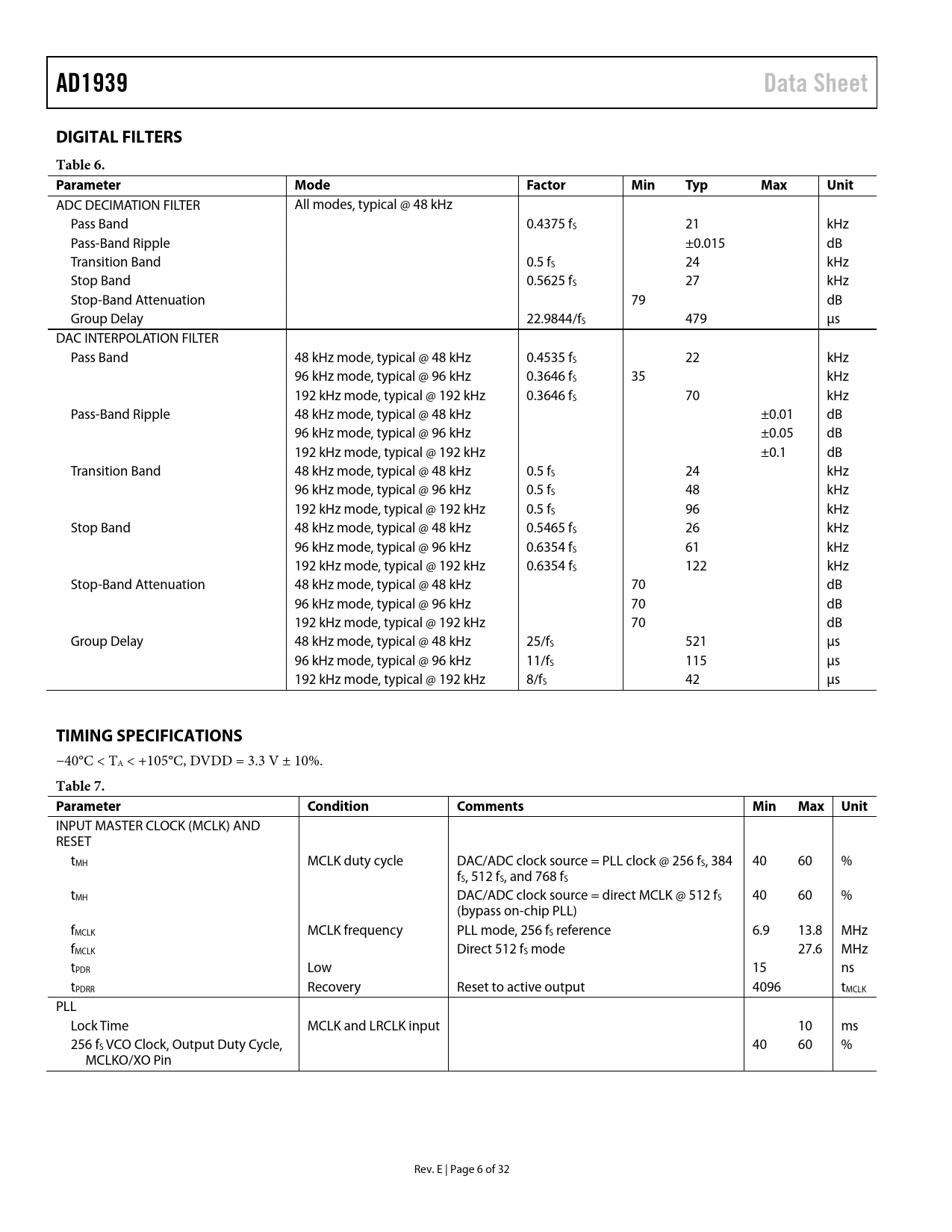

AD1939. Data Sheet. DIGITAL FILTERS Table 6. Parameter. Mode. Factor. Min. Typ. Max. Unit. TIMING SPECIFICATIONS. Table 7. Parameter
该数据表的模型线
文件文字版本
AD1939 Data Sheet DIGITAL FILTERS Table 6. Parameter Mode Factor Min Typ Max Unit
ADC DECIMATION FILTER All modes, typical @ 48 kHz Pass Band 0.4375 fS 21 kHz Pass-Band Ripple ±0.015 dB Transition Band 0.5 fS 24 kHz Stop Band 0.5625 fS 27 kHz Stop-Band Attenuation 79 dB Group Delay 22.9844/fS 479 µs DAC INTERPOLATION FILTER Pass Band 48 kHz mode, typical @ 48 kHz 0.4535 fS 22 kHz 96 kHz mode, typical @ 96 kHz 0.3646 fS 35 kHz 192 kHz mode, typical @ 192 kHz 0.3646 fS 70 kHz Pass-Band Ripple 48 kHz mode, typical @ 48 kHz ±0.01 dB 96 kHz mode, typical @ 96 kHz ±0.05 dB 192 kHz mode, typical @ 192 kHz ±0.1 dB Transition Band 48 kHz mode, typical @ 48 kHz 0.5 fS 24 kHz 96 kHz mode, typical @ 96 kHz 0.5 fS 48 kHz 192 kHz mode, typical @ 192 kHz 0.5 fS 96 kHz Stop Band 48 kHz mode, typical @ 48 kHz 0.5465 fS 26 kHz 96 kHz mode, typical @ 96 kHz 0.6354 fS 61 kHz 192 kHz mode, typical @ 192 kHz 0.6354 fS 122 kHz Stop-Band Attenuation 48 kHz mode, typical @ 48 kHz 70 dB 96 kHz mode, typical @ 96 kHz 70 dB 192 kHz mode, typical @ 192 kHz 70 dB Group Delay 48 kHz mode, typical @ 48 kHz 25/fS 521 µs 96 kHz mode, typical @ 96 kHz 11/fS 115 µs 192 kHz mode, typical @ 192 kHz 8/fS 42 µs
TIMING SPECIFICATIONS
−40°C < TA < +105°C, DVDD = 3.3 V ± 10%.
Table 7. Parameter Condition Comments Min Max Unit
