PI6CB33201. Maximum Ratings. Note:. Operating Conditions. Symbol. Parameters. Conditions. Min. Typ. Max. Units
该数据表的模型线
文件文字版本
A product Line of Diodes Incorporated

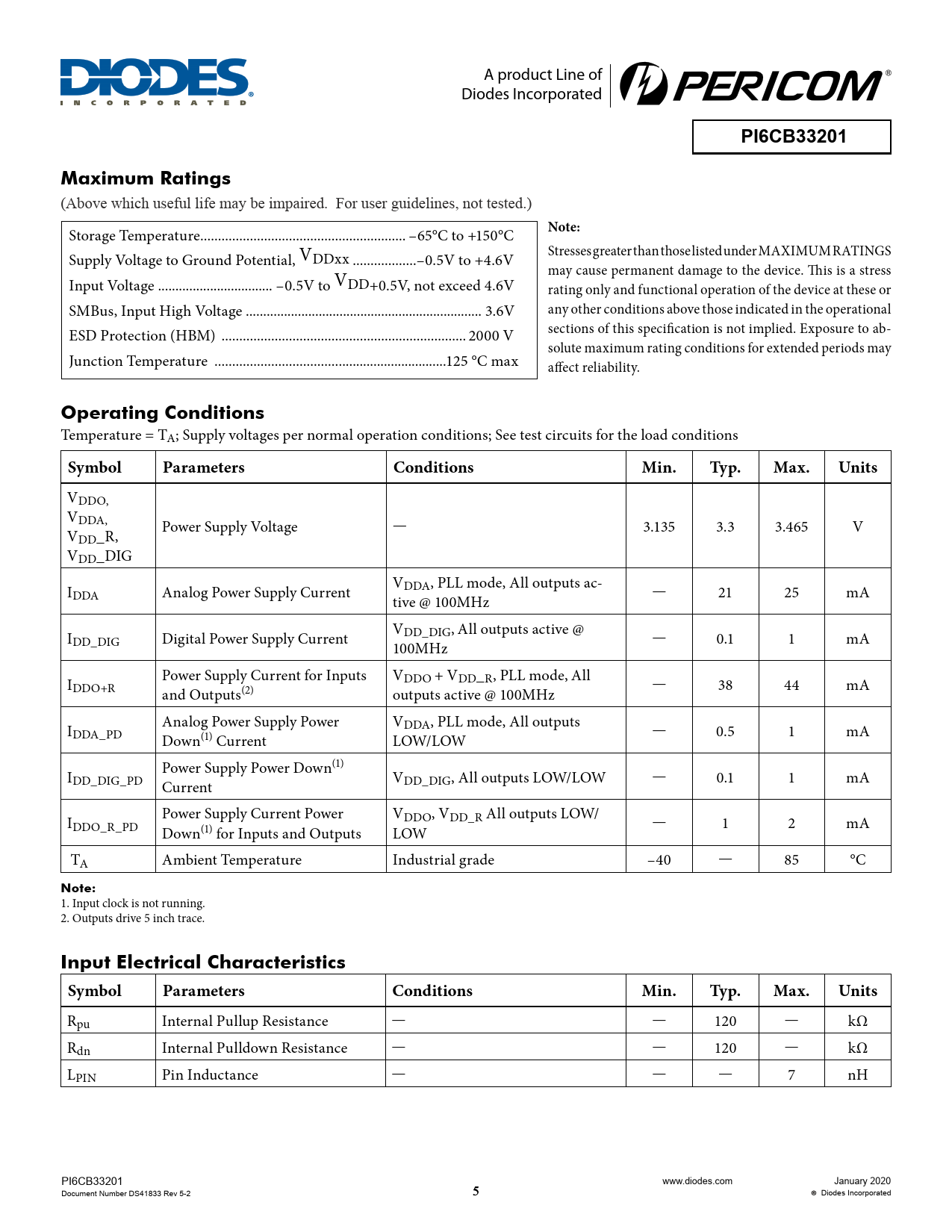

PI6CB33201 Maximum Ratings
(Above which useful life may be impaired. For user guidelines, not tested.) Storage Temperature .. –65°C to +150°C
Note:
Supply Voltage to Ground Potential, VDDxx ..–0.5V to +4.6V Stresses greater than those listed under MAXIMUM RATINGS may cause permanent damage to the device. This is a stress Input Voltage ... –0.5V to VDD+0.5V, not exceed 4.6V rating only and functional operation of the device at these or SMBus, Input High Voltage .. 3.6V any other conditions above those indicated in the operational ESD Protection (HBM) ... 2000 V sections of this specification is not implied. Exposure to ab- solute maximum rating conditions for extended periods may Junction Temperature ..125 °C max affect reliability.
Operating Conditions
Temperature = TA; Supply voltages per normal operation conditions; See test circuits for the load conditions
Symbol Parameters Conditions Min. Typ. Max. Units
VDDO, VDDA, V Power Supply Voltage — 3.135 3.3 3.465 V DD_R, VDD_DIG IDDA Analog Power Supply Current VDDA, PLL mode, All outputs ac- tive @ 100MHz — 21 25 mA IDD_DIG Digital Power Supply Current VDD_DIG, All outputs active @ 100MHz — 0.1 1 mA I Power Supply Current for Inputs VDDO + VDD_R, PLL mode, All DDO+R and Outputs(2) outputs active @ 100MHz — 38 44 mA I Analog Power Supply Power VDDA, PLL mode, All outputs DDA_PD Down(1) Current LOW/LOW — 0.5 1 mA I Power Supply Power Down(1) DD_DIG_PD Current VDD_DIG, All outputs LOW/LOW — 0.1 1 mA I Power Supply Current Power VDDO, VDD_R All outputs LOW/ DDO_R_PD Down(1) for Inputs and Outputs LOW — 1 2 mA TA Ambient Temperature Industrial grade –40 — 85 °C
Note:
1. Input clock is not running. 2. Outputs drive 5 inch trace.
Input Electrical Characteristics Symbol Parameters Conditions Min. Typ. Max. Units
Rpu Internal Pullup Resistance — — 120 — kΩ Rdn Internal Pulldown Resistance — — 120 — kΩ LPIN Pin Inductance — — — 7 nH PI6CB33201 www.diodes.com January 2020 Document Number DS41833 Rev 5-2 5 Diodes Incorporated
