| 描述 | 20-Output PCIe G4 Clock Buffer With On-Chip Termination |
| 页数 / 页 | 21 / 2 — PI6CB332000. Pin Configuration. Pin Description. Pin Number Pin Name. … |
| 文件格式/大小 | PDF / 1.5 Mb |
| 文件语言 | 英语 |
PI6CB332000. Pin Configuration. Pin Description. Pin Number Pin Name. Type. Description
该数据表的模型线
文件文字版本
A product Line of Diodes Incorporated

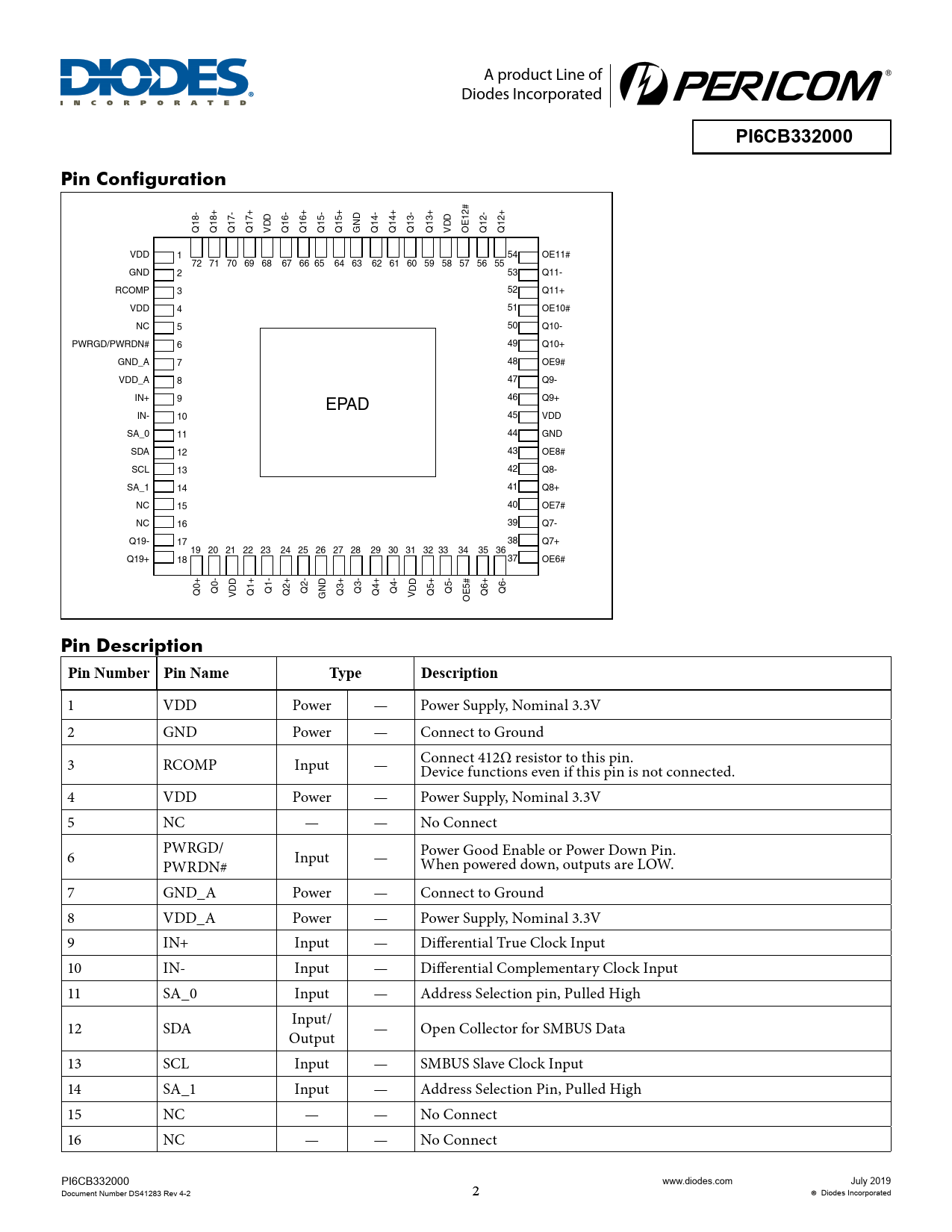

PI6CB332000 Pin Configuration
Q18- Q18+ Q17- Q17+ VDD Q16- Q16+ Q15- Q15+ GND Q14- Q14+ Q13- Q13+ VDD OE12# Q12- Q12+ VDD 1 54 OE11# 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 GND 2 53 Q11- RCOMP 3 52 Q11+ VDD 4 51 OE10# NC 5 50 Q10- PWRGD/PWRDN# 6 49 Q10+ GND_A 7 48 OE9# VDD_A 8 47 Q9- IN+ 9 EPAD 46 Q9+ IN- 10 45 VDD SA_0 11 44 GND SDA 12 43 OE8# SCL 13 42 Q8- SA_1 14 41 Q8+ NC 15 40 OE7# NC 16 39 Q7- Q19- 17 38 Q7+ 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 Q19+ 18 37 OE6# Q0+ Q0- DD VDD Q1+ Q1- Q2+ Q2- GND Q3+ Q3- Q4+ Q4- V Q5+ Q5- Q6+ Q6- OE5#
Pin Description Pin Number Pin Name Type Description
1 VDD Power — Power Supply, Nominal 3.3V 2 GND Power — Connect to Ground 3 RCOMP Input — Connect 412Ω resistor to this pin. Device functions even if this pin is not connected. 4 VDD Power — Power Supply, Nominal 3.3V 5 NC — — No Connect 6 PWRGD/ PWRDN# Input — Power Good Enable or Power Down Pin. When powered down, outputs are LOW. 7 GND_A Power — Connect to Ground 8 VDD_A Power — Power Supply, Nominal 3.3V 9 IN+ Input — Differential True Clock Input 10 IN- Input — Differential Complementary Clock Input 11 SA_0 Input — Address Selection pin, Pulled High 12 SDA Input/ Output — Open Collector for SMBUS Data 13 SCL Input — SMBUS Slave Clock Input 14 SA_1 Input — Address Selection Pin, Pulled High 15 NC — — No Connect 16 NC — — No Connect PI6CB332000 www.diodes.com July 2019 Document Number DS41283 Rev 4-2 2 Diodes Incorporated
PI6CB332000 Pin Configuration
Q18- Q18+ Q17- Q17+ VDD Q16- Q16+ Q15- Q15+ GND Q14- Q14+ Q13- Q13+ VDD OE12# Q12- Q12+ VDD 1 54 OE11# 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 GND 2 53 Q11- RCOMP 3 52 Q11+ VDD 4 51 OE10# NC 5 50 Q10- PWRGD/PWRDN# 6 49 Q10+ GND_A 7 48 OE9# VDD_A 8 47 Q9- IN+ 9 EPAD 46 Q9+ IN- 10 45 VDD SA_0 11 44 GND SDA 12 43 OE8# SCL 13 42 Q8- SA_1 14 41 Q8+ NC 15 40 OE7# NC 16 39 Q7- Q19- 17 38 Q7+ 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 Q19+ 18 37 OE6# Q0+ Q0- DD VDD Q1+ Q1- Q2+ Q2- GND Q3+ Q3- Q4+ Q4- V Q5+ Q5- Q6+ Q6- OE5#
Pin Description Pin Number Pin Name Type Description
1 VDD Power — Power Supply, Nominal 3.3V 2 GND Power — Connect to Ground 3 RCOMP Input — Connect 412Ω resistor to this pin. Device functions even if this pin is not connected. 4 VDD Power — Power Supply, Nominal 3.3V 5 NC — — No Connect 6 PWRGD/ PWRDN# Input — Power Good Enable or Power Down Pin. When powered down, outputs are LOW. 7 GND_A Power — Connect to Ground 8 VDD_A Power — Power Supply, Nominal 3.3V 9 IN+ Input — Differential True Clock Input 10 IN- Input — Differential Complementary Clock Input 11 SA_0 Input — Address Selection pin, Pulled High 12 SDA Input/ Output — Open Collector for SMBUS Data 13 SCL Input — SMBUS Slave Clock Input 14 SA_1 Input — Address Selection Pin, Pulled High 15 NC — — No Connect 16 NC — — No Connect PI6CB332000 www.diodes.com July 2019 Document Number DS41283 Rev 4-2 2 Diodes Incorporated
