FEATURES. DESCRIPTION. High Efficiency: 8mΩ NMOS, 31mΩ PMOS. Programmable Frequency to 3MHz. Tiny Inductor and Capacitors

Datasheet LTC3308A Analog Devices

该数据表的模型线

文件文字版本

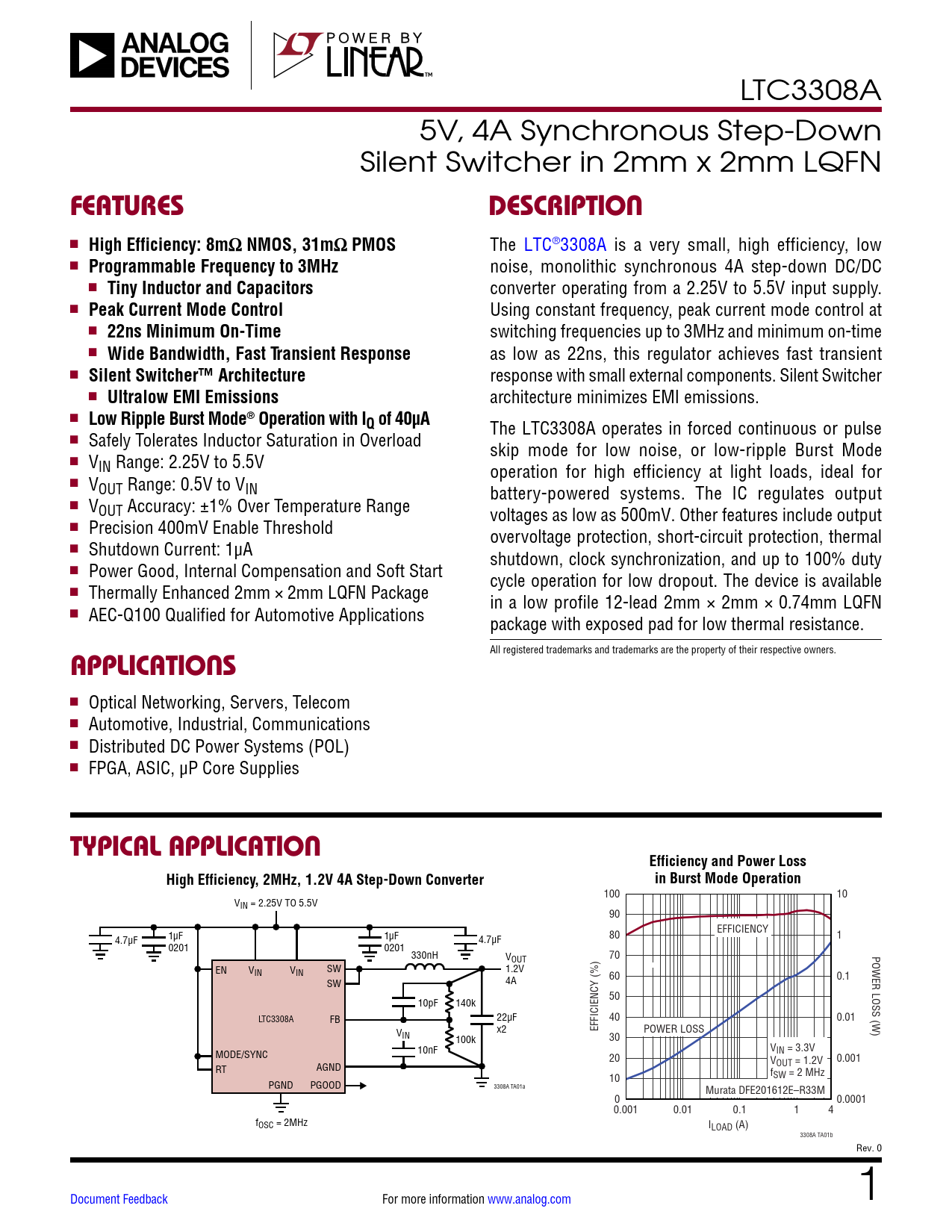

LTC3308A 5V, 4A Synchronous Step-Down Silent Switcher in 2mm x 2mm LQFN
FEATURES DESCRIPTION
n
High Efficiency: 8mΩ NMOS, 31mΩ PMOS
The LTC®3308A is a very small, high efficiency, low n
Programmable Frequency to 3MHz
noise, monolithic synchronous 4A step-down DC/DC n
Tiny Inductor and Capacitors
converter operating from a 2.25V to 5.5V input supply. n
Peak Current Mode Control
Using constant frequency, peak current mode control at n
22ns Minimum On-Time
switching frequencies up to 3MHz and minimum on-time n
Wide Bandwidth, Fast Transient Response
as low as 22ns, this regulator achieves fast transient n
Silent Switcher™ Architecture
response with small external components. Silent Switcher n
Ultralow EMI Emissions
architecture minimizes EMI emissions. n
Low Ripple Burst Mode® Operation with IQ of 40µA
The LTC3308A operates in forced continuous or pulse n Safely Tolerates Inductor Saturation in Overload skip mode for low noise, or low-ripple Burst Mode n VIN Range: 2.25V to 5.5V operation for high efficiency at light loads, ideal for n VOUT Range: 0.5V to VIN battery-powered systems. The IC regulates output n VOUT Accuracy: ±1% Over Temperature Range voltages as low as 500mV. Other features include output n Precision 400mV Enable Threshold overvoltage protection, short-circuit protection, thermal n Shutdown Current: 1µA shutdown, clock synchronization, and up to 100% duty n Power Good, Internal Compensation and Soft Start cycle operation for low dropout. The device is available n Thermally Enhanced 2mm × 2mm LQFN Package in a low profile 12-lead 2mm × 2mm × 0.74mm LQFN n AEC-Q100 Qualified for Automotive Applications package with exposed pad for low thermal resistance.
APPLICATIONS
All registered trademarks and trademarks are the property of their respective owners. n Optical Networking, Servers, Telecom n Automotive, Industrial, Communications n Distributed DC Power Systems (POL) n FPGA, ASIC, µP Core Supplies
TYPICAL APPLICATION Efficiency and Power Loss Efficiency and Power Loss High Efficiency, 2MHz, 1.2V 4A Step-Down Converter in Burst Mode Operation in Burst Mode Operation
