Datasheet LT3048 (Analog Devices) - 4
| 制造商 | Analog Devices |
| 描述 | Low Noise Bias Generator in 2mm × 2mm DFN |
| 页数 / 页 | 16 / 4 — ELECTRICAL. CHARACTERISTICS The. denotes the specifications which apply … |
| 修订版 | B |
| 文件格式/大小 | PDF / 1.6 Mb |
| 文件语言 | 英语 |
ELECTRICAL. CHARACTERISTICS The. denotes the specifications which apply over the full operating
该数据表的模型线
- LT3048EDC#TRMPBF LT3048EDC#TRPBF LT3048EDC-12#TRMPBF LT3048EDC-12#TRPBF LT3048EDC-15#TRMPBF LT3048EDC-15#TRPBF LT3048EDC-3.3#TRMPBF LT3048EDC-3.3#TRPBF LT3048EDC-5#TRMPBF LT3048EDC-5#TRPBF LT3048IDC#TRMPBF LT3048IDC#TRPBF LT3048IDC-12#TRMPBF LT3048IDC-12#TRPBF LT3048IDC-15#TRMPBF LT3048IDC-15#TRPBF LT3048IDC-3.3#TRMPBF LT3048IDC-3.3#TRPBF LT3048IDC-5#TRMPBF LT3048IDC-5#TRPBF
文件文字版本

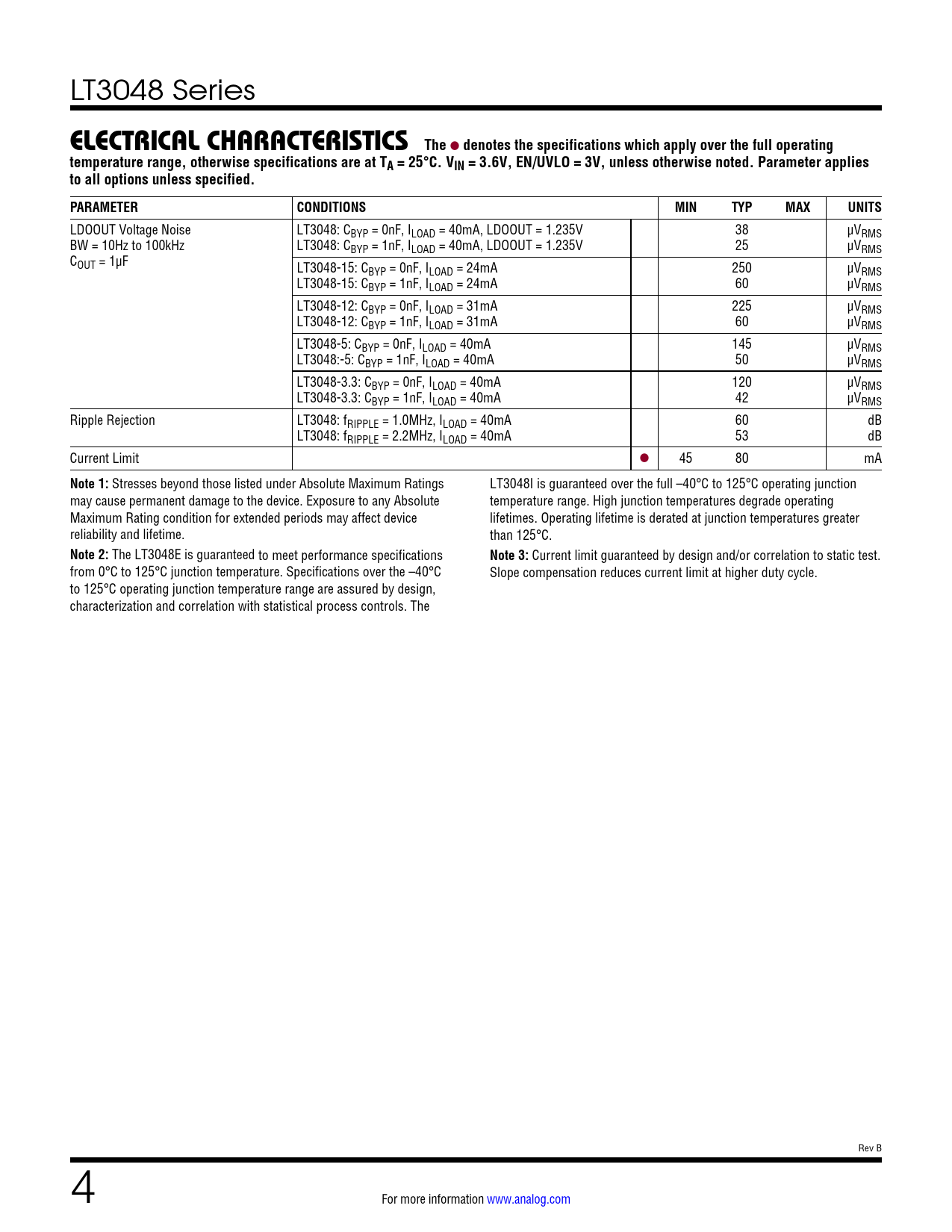

LT3048 Series
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. VIN = 3.6V, EN/UVLO = 3V, unless otherwise noted. Parameter applies to all options unless specified. PARAMETER CONDITIONS MIN TYP MAX UNITS
LDOOUT Voltage Noise LT3048: CBYP = 0nF, ILOAD = 40mA, LDOOUT = 1.235V 38 µVRMS BW = 10Hz to 100kHz LT3048: CBYP = 1nF, ILOAD = 40mA, LDOOUT = 1.235V 25 µVRMS COUT = 1µF LT3048-15: CBYP = 0nF, ILOAD = 24mA 250 µVRMS LT3048-15: CBYP = 1nF, ILOAD = 24mA 60 µVRMS LT3048-12: CBYP = 0nF, ILOAD = 31mA 225 µVRMS LT3048-12: CBYP = 1nF, ILOAD = 31mA 60 µVRMS LT3048-5: CBYP = 0nF, ILOAD = 40mA 145 µVRMS LT3048:-5: CBYP = 1nF, ILOAD = 40mA 50 µVRMS LT3048-3.3: CBYP = 0nF, ILOAD = 40mA 120 µVRMS LT3048-3.3: CBYP = 1nF, ILOAD = 40mA 42 µVRMS Ripple Rejection LT3048: fRIPPLE = 1.0MHz, ILOAD = 40mA 60 dB LT3048: fRIPPLE = 2.2MHz, ILOAD = 40mA 53 dB Current Limit l 45 80 mA
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings LT3048I is guaranteed over the full –40°C to 125°C operating junction may cause permanent damage to the device. Exposure to any Absolute temperature range. High junction temperatures degrade operating Maximum Rating condition for extended periods may affect device lifetimes. Operating lifetime is derated at junction temperatures greater reliability and lifetime. than 125°C.
Note 2:
The LT3048E is guaranteed to meet performance specifications
Note 3:
Current limit guaranteed by design and/or correlation to static test. from 0°C to 125°C junction temperature. Specifications over the –40°C Slope compensation reduces current limit at higher duty cycle. to 125°C operating junction temperature range are assured by design, characterization and correlation with statistical process controls. The Rev B 4 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions LT3048 LT3048-xx LT3048 Block Diagrams Operation Applications Information Package Description Revision History Related Parts
