Datasheet AD7314 (Analog Devices) - 3
| 制造商 | Analog Devices |
| 描述 | Low Voltage, 10-Bit Digital Temperature Sensor in 8-Lead MSOP |
| 页数 / 页 | 8 / 3 — AD7314. SCLK. SDO. SDI. ABSOLUTE MAXIMUM RATINGS1. 200. IOL. OUTPUT. … |
| 修订版 | A |
| 文件格式/大小 | PDF / 174 Kb |
| 文件语言 | 英语 |
AD7314. SCLK. SDO. SDI. ABSOLUTE MAXIMUM RATINGS1. 200. IOL. OUTPUT. 1.6V. PIN. 50pF. ORDERING GUIDE. Temperature. Package. Model. Range. Error
该数据表的模型线
文件文字版本

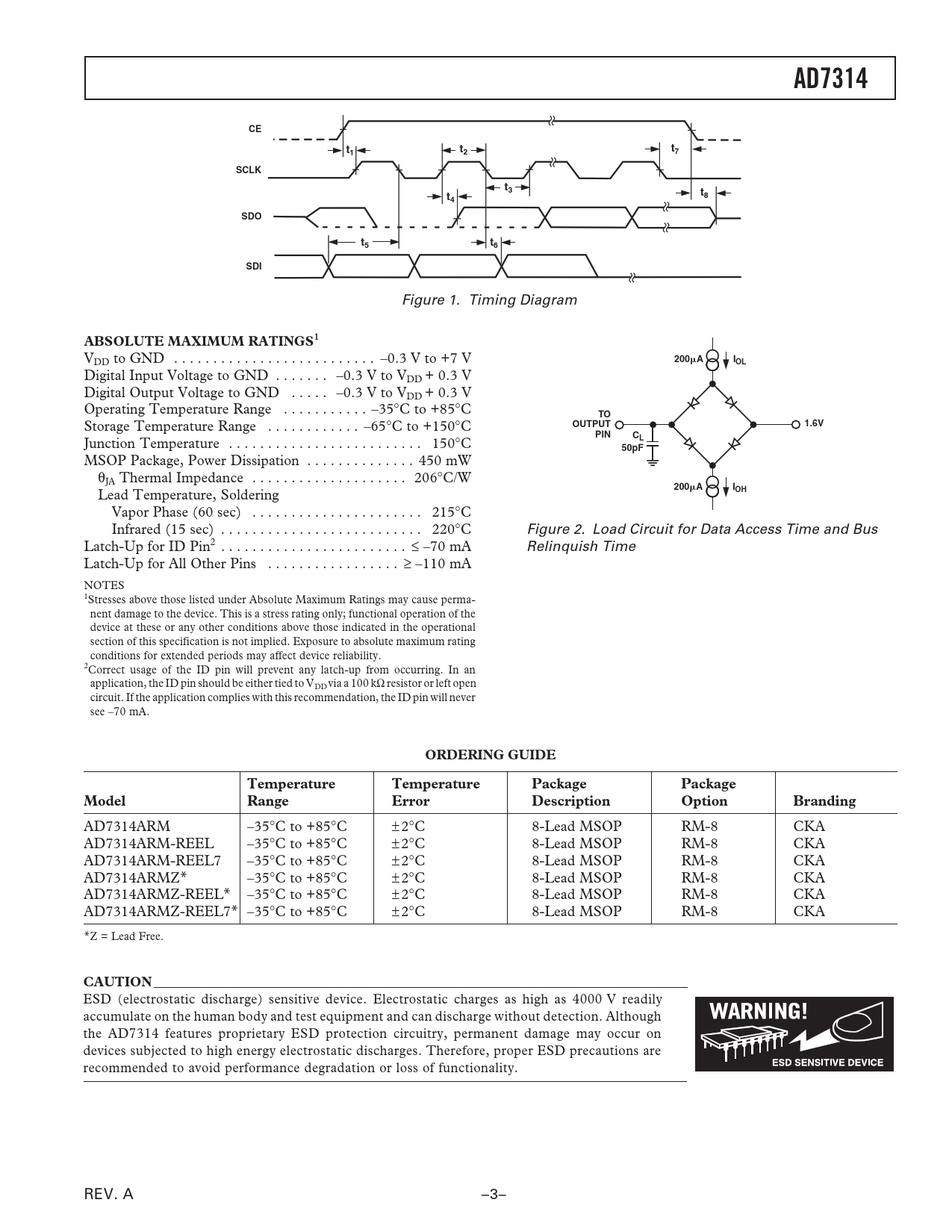

AD7314 CE t t 1 t2 7 SCLK t3 t t8 4 SDO t t 5 6 SDI
Figure 1. Timing Diagram
ABSOLUTE MAXIMUM RATINGS1
VDD to GND . –0.3 V to +7 V
200
A IOL
Digital Input Voltage to GND . –0.3 V to VDD + 0.3 V Digital Output Voltage to GND . –0.3 V to VDD + 0.3 V Operating Temperature Range . –35°C to +85°C
TO
Storage Temperature Range . –65°C to +150°C
OUTPUT 1.6V PIN C
Junction Temperature . 150°C
L 50pF
MSOP Package, Power Dissipation . 450 mW θJA Thermal Impedance . 206°C/W
200
A I
Lead Temperature, Soldering
OH
Vapor Phase (60 sec) . 215°C Infrared (15 sec) . 220°C Figure 2. Load Circuit for Data Access Time and Bus Latch-Up for ID Pin2 . ≤ –70 mA Relinquish Time Latch-Up for All Other Pins . ≥ –110 mA NOTES 1Stresses above those listed under Absolute Maximum Ratings may cause perma- nent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. 2Correct usage of the ID pin will prevent any latch-up from occurring. In an application, the ID pin should be either tied to VDD via a 100 kΩ resistor or left open circuit. If the application complies with this recommendation, the ID pin will never see –70 mA.
ORDERING GUIDE Temperature Temperature Package Package Model Range Error Description Option Branding
AD7314ARM –35°C to +85°C ±2°C 8-Lead MSOP RM-8 CKA AD7314ARM-REEL –35°C to +85°C ±2°C 8-Lead MSOP RM-8 CKA AD7314ARM-REEL7 –35°C to +85°C ±2°C 8-Lead MSOP RM-8 CKA AD7314ARMZ* –35°C to +85°C ±2°C 8-Lead MSOP RM-8 CKA AD7314ARMZ-REEL* –35°C to +85°C ±2°C 8-Lead MSOP RM-8 CKA AD7314ARMZ-REEL7* –35°C to +85°C ±2°C 8-Lead MSOP RM-8 CKA *Z = Lead Free.
CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection. Although the AD7314 features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance degradation or loss of functionality. REV. A –3– Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS SPECIFICATIONS TIMING CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS ORDERING GUIDE PIN CONFIGURATION PIN FUNCTION DESCRIPTIONS CIRCUIT INFORMATION CONVERTER DETAILS Temperature Value Register Serial Interface Read Operation Write Operation MICROCONTROLLER INTERFACING MOUNTING THE AD7314 SUPPLY DECOUPLING TYPICAL TEMPERATURE ERROR GRAPHS OUTLINE DIMENSIONS Revision History
