Datasheet LTC6995-1, LTC6995-2 (Analog Devices) - 2
| 制造商 | Analog Devices |
| 描述 | TimerBlox: Long Timer, Low Frequency Oscillator |
| 页数 / 页 | 28 / 2 — ABSOLUTE MAXIMUM RATINGS (Note 1). PIN CONFIGURATION. ORDER INFORMATION … |
| 修订版 | B |
| 文件格式/大小 | PDF / 1.7 Mb |
| 文件语言 | 英语 |
ABSOLUTE MAXIMUM RATINGS (Note 1). PIN CONFIGURATION. ORDER INFORMATION Lead Free Finish TAPE AND REEL (MINI). TAPE AND REEL
该数据表的模型线
- LTC6995CDCB-1#TRMPBF LTC6995CDCB-1#TRPBF LTC6995CDCB-2#TRMPBF LTC6995CDCB-2#TRPBF LTC6995CS6-1#TRMPBF LTC6995CS6-1#TRPBF LTC6995CS6-2#TRMPBF LTC6995CS6-2#TRPBF LTC6995HDCB-1#TRMPBF LTC6995HDCB-1#TRPBF LTC6995HDCB-2#TRMPBF LTC6995HDCB-2#TRPBF LTC6995HS6-1#TRMPBF LTC6995HS6-1#TRPBF LTC6995HS6-1#WTRMPBF LTC6995HS6-1#WTRPBF LTC6995HS6-2#TRMPBF LTC6995HS6-2#TRPBF LTC6995HS6-2#WTRMPBF LTC6995HS6-2#WTRPBF LTC6995IDCB-1#TRMPBF LTC6995IDCB-1#TRPBF LTC6995IDCB-2#TRMPBF LTC6995IDCB-2#TRPBF LTC6995IS6-1#TRMPBF LTC6995IS6-1#TRPBF LTC6995IS6-1#WTRMPBF LTC6995IS6-1#WTRPBF LTC6995IS6-2#TRMPBF LTC6995IS6-2#TRPBF LTC6995IS6-2#WTRMPBF LTC6995IS6-2#WTRPBF LTC6995MPS6-1#TRMPBF LTC6995MPS6-1#TRPBF LTC6995MPS6-2#TRMPBF LTC6995MPS6-2#TRPBF
文件文字版本

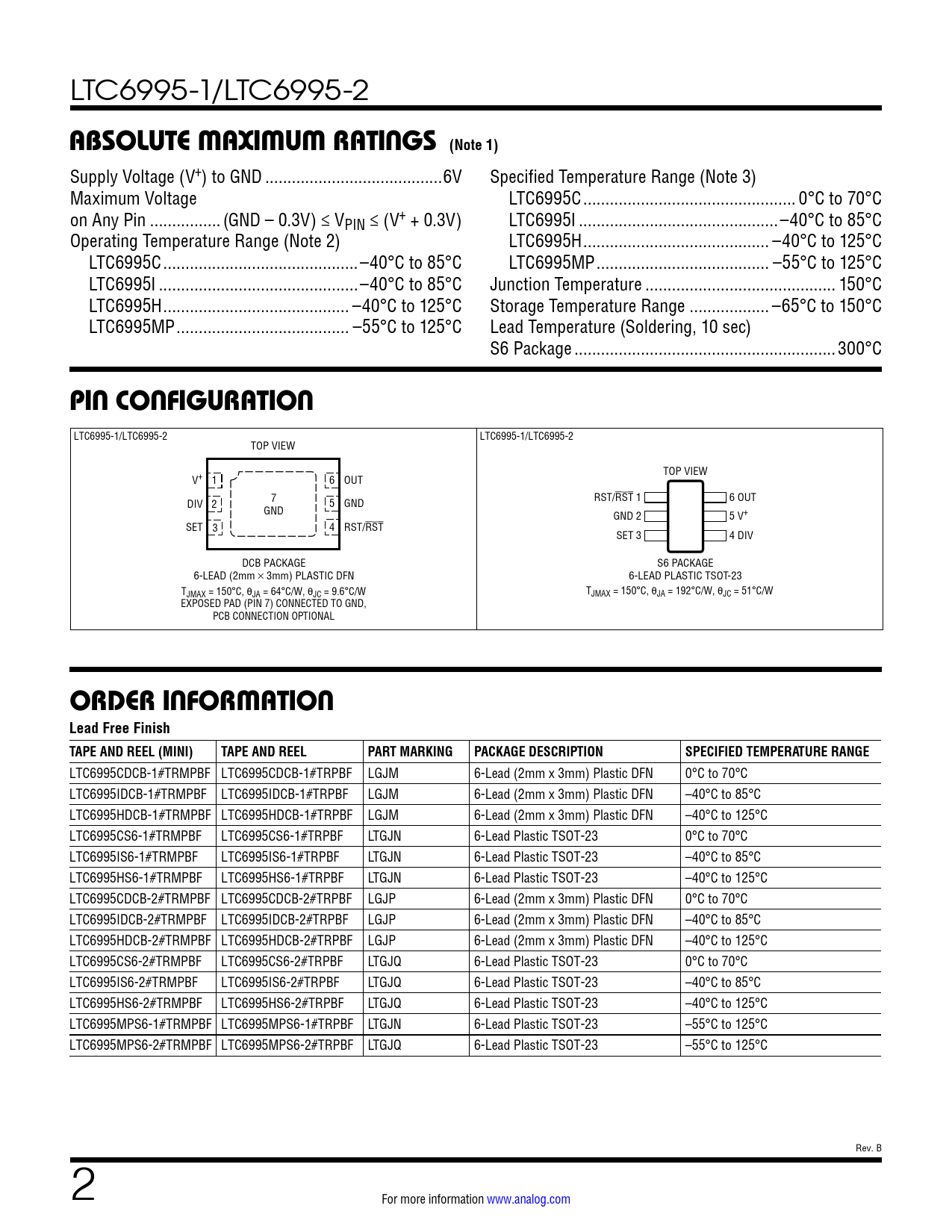

LTC6995-1/LTC6995-2
ABSOLUTE MAXIMUM RATINGS (Note 1)
Supply Voltage (V+) to GND ..6V Specified Temperature Range (Note 3) Maximum Voltage LTC6995C .. 0°C to 70°C on Any Pin .. (GND – 0.3V) ≤ VPIN ≤ (V+ + 0.3V) LTC6995I ...–40°C to 85°C Operating Temperature Range (Note 2) LTC6995H .. –40°C to 125°C LTC6995C ..–40°C to 85°C LTC6995MP ... –55°C to 125°C LTC6995I ...–40°C to 85°C Junction Temperature ... 150°C LTC6995H .. –40°C to 125°C Storage Temperature Range .. –65°C to 150°C LTC6995MP ... –55°C to 125°C Lead Temperature (Soldering, 10 sec) S6 Package ...300°C
PIN CONFIGURATION
LTC6995-1/LTC6995-2 LTC6995-1/LTC6995-2 TOP VIEW TOP VIEW V+ 1 6 OUT DIV 7 RST/RST 1 6 OUT 2 5 GND GND GND 2 5 V+ SET 3 4 RST/RST SET 3 4 DIV DCB PACKAGE S6 PACKAGE 6-LEAD (2mm × 3mm) PLASTIC DFN 6-LEAD PLASTIC TSOT-23 TJMAX = 150°C, θJA = 64°C/W, θJC = 9.6°C/W TJMAX = 150°C, θJA = 192°C/W, θJC = 51°C/W EXPOSED PAD (PIN 7) CONNECTED TO GND, PCB CONNECTION OPTIONAL
ORDER INFORMATION Lead Free Finish TAPE AND REEL (MINI) TAPE AND REEL PART MARKING PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LTC6995CDCB-1#TRMPBF LTC6995CDCB-1#TRPBF LGJM 6-Lead (2mm x 3mm) Plastic DFN 0°C to 70°C LTC6995IDCB-1#TRMPBF LTC6995IDCB-1#TRPBF LGJM 6-Lead (2mm x 3mm) Plastic DFN –40°C to 85°C LTC6995HDCB-1#TRMPBF LTC6995HDCB-1#TRPBF LGJM 6-Lead (2mm x 3mm) Plastic DFN –40°C to 125°C LTC6995CS6-1#TRMPBF LTC6995CS6-1#TRPBF LTGJN 6-Lead Plastic TSOT-23 0°C to 70°C LTC6995IS6-1#TRMPBF LTC6995IS6-1#TRPBF LTGJN 6-Lead Plastic TSOT-23 –40°C to 85°C LTC6995HS6-1#TRMPBF LTC6995HS6-1#TRPBF LTGJN 6-Lead Plastic TSOT-23 –40°C to 125°C LTC6995CDCB-2#TRMPBF LTC6995CDCB-2#TRPBF LGJP 6-Lead (2mm x 3mm) Plastic DFN 0°C to 70°C LTC6995IDCB-2#TRMPBF LTC6995IDCB-2#TRPBF LGJP 6-Lead (2mm x 3mm) Plastic DFN –40°C to 85°C LTC6995HDCB-2#TRMPBF LTC6995HDCB-2#TRPBF LGJP 6-Lead (2mm x 3mm) Plastic DFN –40°C to 125°C LTC6995CS6-2#TRMPBF LTC6995CS6-2#TRPBF LTGJQ 6-Lead Plastic TSOT-23 0°C to 70°C LTC6995IS6-2#TRMPBF LTC6995IS6-2#TRPBF LTGJQ 6-Lead Plastic TSOT-23 –40°C to 85°C LTC6995HS6-2#TRMPBF LTC6995HS6-2#TRPBF LTGJQ 6-Lead Plastic TSOT-23 –40°C to 125°C LTC6995MPS6-1#TRMPBF LTC6995MPS6-1#TRPBF LTGJN 6-Lead Plastic TSOT-23 –55°C to 125°C LTC6995MPS6-2#TRMPBF LTC6995MPS6-2#TRPBF LTGJQ 6-Lead Plastic TSOT-23 –55°C to 125°C Rev. B 2 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Package Description Revision History Typical Application Related Parts
ABSOLUTE MAXIMUM RATINGS (Note 1)
Supply Voltage (V+) to GND ..6V Specified Temperature Range (Note 3) Maximum Voltage LTC6995C .. 0°C to 70°C on Any Pin .. (GND – 0.3V) ≤ VPIN ≤ (V+ + 0.3V) LTC6995I ...–40°C to 85°C Operating Temperature Range (Note 2) LTC6995H .. –40°C to 125°C LTC6995C ..–40°C to 85°C LTC6995MP ... –55°C to 125°C LTC6995I ...–40°C to 85°C Junction Temperature ... 150°C LTC6995H .. –40°C to 125°C Storage Temperature Range .. –65°C to 150°C LTC6995MP ... –55°C to 125°C Lead Temperature (Soldering, 10 sec) S6 Package ...300°C
PIN CONFIGURATION
LTC6995-1/LTC6995-2 LTC6995-1/LTC6995-2 TOP VIEW TOP VIEW V+ 1 6 OUT DIV 7 RST/RST 1 6 OUT 2 5 GND GND GND 2 5 V+ SET 3 4 RST/RST SET 3 4 DIV DCB PACKAGE S6 PACKAGE 6-LEAD (2mm × 3mm) PLASTIC DFN 6-LEAD PLASTIC TSOT-23 TJMAX = 150°C, θJA = 64°C/W, θJC = 9.6°C/W TJMAX = 150°C, θJA = 192°C/W, θJC = 51°C/W EXPOSED PAD (PIN 7) CONNECTED TO GND, PCB CONNECTION OPTIONAL
ORDER INFORMATION Lead Free Finish TAPE AND REEL (MINI) TAPE AND REEL PART MARKING PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LTC6995CDCB-1#TRMPBF LTC6995CDCB-1#TRPBF LGJM 6-Lead (2mm x 3mm) Plastic DFN 0°C to 70°C LTC6995IDCB-1#TRMPBF LTC6995IDCB-1#TRPBF LGJM 6-Lead (2mm x 3mm) Plastic DFN –40°C to 85°C LTC6995HDCB-1#TRMPBF LTC6995HDCB-1#TRPBF LGJM 6-Lead (2mm x 3mm) Plastic DFN –40°C to 125°C LTC6995CS6-1#TRMPBF LTC6995CS6-1#TRPBF LTGJN 6-Lead Plastic TSOT-23 0°C to 70°C LTC6995IS6-1#TRMPBF LTC6995IS6-1#TRPBF LTGJN 6-Lead Plastic TSOT-23 –40°C to 85°C LTC6995HS6-1#TRMPBF LTC6995HS6-1#TRPBF LTGJN 6-Lead Plastic TSOT-23 –40°C to 125°C LTC6995CDCB-2#TRMPBF LTC6995CDCB-2#TRPBF LGJP 6-Lead (2mm x 3mm) Plastic DFN 0°C to 70°C LTC6995IDCB-2#TRMPBF LTC6995IDCB-2#TRPBF LGJP 6-Lead (2mm x 3mm) Plastic DFN –40°C to 85°C LTC6995HDCB-2#TRMPBF LTC6995HDCB-2#TRPBF LGJP 6-Lead (2mm x 3mm) Plastic DFN –40°C to 125°C LTC6995CS6-2#TRMPBF LTC6995CS6-2#TRPBF LTGJQ 6-Lead Plastic TSOT-23 0°C to 70°C LTC6995IS6-2#TRMPBF LTC6995IS6-2#TRPBF LTGJQ 6-Lead Plastic TSOT-23 –40°C to 85°C LTC6995HS6-2#TRMPBF LTC6995HS6-2#TRPBF LTGJQ 6-Lead Plastic TSOT-23 –40°C to 125°C LTC6995MPS6-1#TRMPBF LTC6995MPS6-1#TRPBF LTGJN 6-Lead Plastic TSOT-23 –55°C to 125°C LTC6995MPS6-2#TRMPBF LTC6995MPS6-2#TRPBF LTGJQ 6-Lead Plastic TSOT-23 –55°C to 125°C Rev. B 2 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Package Description Revision History Typical Application Related Parts
