Datasheet LTC6993-1, LTC6993-2, LTC6993-3, LTC6993-4 (Analog Devices) - 2
| 制造商 | Analog Devices |
| 描述 | TimerBlox: Monostable Pulse Generator (One Shot) |
| 页数 / 页 | 28 / 2 — ABSOLUTE MAXIMUM RATINGS (Note 1). PIN CONFIGURATION. ORDER INFORMATION. … |
| 修订版 | E |
| 文件格式/大小 | PDF / 1.1 Mb |
| 文件语言 | 英语 |
ABSOLUTE MAXIMUM RATINGS (Note 1). PIN CONFIGURATION. ORDER INFORMATION. Lead Free Finish. TAPE AND REEL (MINI). TAPE AND REEL
该数据表的模型线
- LTC6993CDCB-1#TRMPBF LTC6993CDCB-1#TRPBF LTC6993CDCB-2#TRMPBF LTC6993CDCB-2#TRPBF LTC6993CDCB-3#TRMPBF LTC6993CDCB-3#TRPBF LTC6993CDCB-4#TRMPBF LTC6993CDCB-4#TRPBF LTC6993CS6-1#TRMPBF LTC6993CS6-1#TRPBF LTC6993CS6-2#TRMPBF LTC6993CS6-2#TRPBF LTC6993CS6-3#TRMPBF LTC6993CS6-3#TRPBF LTC6993CS6-4#TRMPBF LTC6993CS6-4#TRPBF LTC6993HDCB-1#TRMPBF LTC6993HDCB-1#TRPBF LTC6993HDCB-2#TRMPBF LTC6993HDCB-2#TRPBF LTC6993HDCB-3#TRMPBF LTC6993HDCB-3#TRPBF LTC6993HDCB-4#TRMPBF LTC6993HDCB-4#TRPBF LTC6993HS6-1#TRMPBF LTC6993HS6-1#TRPBF LTC6993HS6-1#WTRMPBF LTC6993HS6-1#WTRPBF LTC6993HS6-2#TRMPBF LTC6993HS6-2#TRPBF LTC6993HS6-2#WTRMPBF LTC6993HS6-2#WTRPBF LTC6993HS6-3#TRMPBF LTC6993HS6-3#TRPBF LTC6993HS6-3#WTRMPBF LTC6993HS6-3#WTRPBF LTC6993HS6-4#TRMPBF LTC6993HS6-4#TRPBF LTC6993HS6-4#WTRMPBF LTC6993HS6-4#WTRPBF LTC6993IDCB-1#TRMPBF LTC6993IDCB-1#TRPBF LTC6993IDCB-2#TRMPBF LTC6993IDCB-2#TRPBF LTC6993IDCB-3#TRMPBF LTC6993IDCB-3#TRPBF LTC6993IDCB-4#TRMPBF LTC6993IDCB-4#TRPBF LTC6993IS6-1#TRMPBF LTC6993IS6-1#TRPBF LTC6993IS6-1#WTRMPBF LTC6993IS6-1#WTRPBF LTC6993IS6-2#TRMPBF LTC6993IS6-2#TRPBF LTC6993IS6-2#WTRMPBF LTC6993IS6-2#WTRPBF LTC6993IS6-3#TRMPBF LTC6993IS6-3#TRPBF LTC6993IS6-3#WTRMPBF LTC6993IS6-3#WTRPBF LTC6993IS6-4#TRMPBF LTC6993IS6-4#TRPBF LTC6993IS6-4#WTRMPBF LTC6993IS6-4#WTRPBF LTC6993MPS6-1#TRMPBF LTC6993MPS6-1#TRPBF LTC6993MPS6-2#TRMPBF LTC6993MPS6-2#TRPBF LTC6993MPS6-3#TRMPBF LTC6993MPS6-3#TRPBF LTC6993MPS6-4#TRMPBF LTC6993MPS6-4#TRPBF
文件文字版本

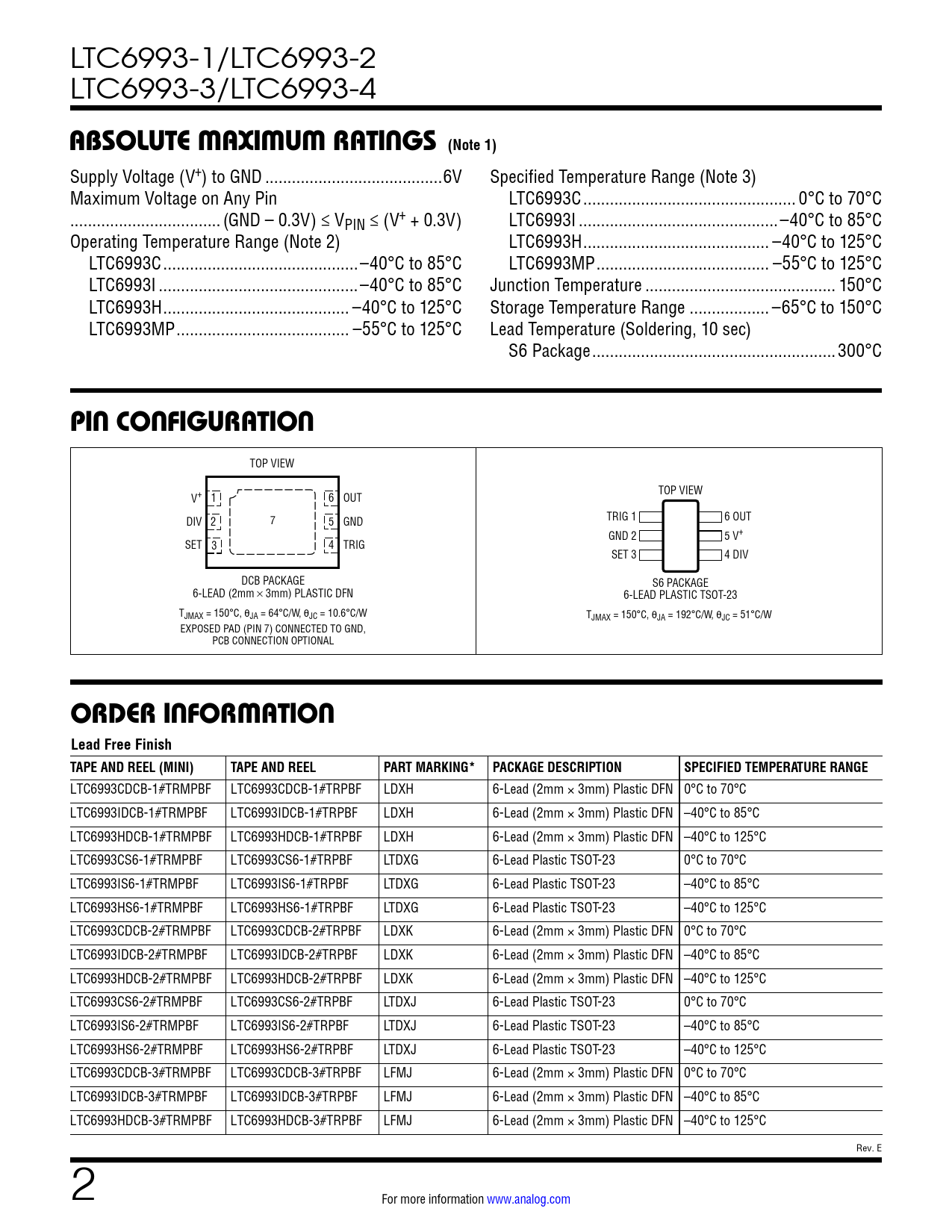

LTC6993-1/LTC6993-2 LTC6993-3/LTC6993-4
ABSOLUTE MAXIMUM RATINGS (Note 1)
Supply Voltage (V+) to GND ..6V Specified Temperature Range (Note 3) Maximum Voltage on Any Pin LTC6993C .. 0°C to 70°C .. (GND – 0.3V) ≤ VPIN ≤ (V+ + 0.3V) LTC6993I ...–40°C to 85°C Operating Temperature Range (Note 2) LTC6993H .. –40°C to 125°C LTC6993C ..–40°C to 85°C LTC6993MP ... –55°C to 125°C LTC6993I ...–40°C to 85°C Junction Temperature ... 150°C LTC6993H .. –40°C to 125°C Storage Temperature Range .. –65°C to 150°C LTC6993MP ... –55°C to 125°C Lead Temperature (Soldering, 10 sec) S6 Package ...300°C
PIN CONFIGURATION
TOP VIEW TOP VIEW V+ 1 6 OUT DIV 2 7 5 GND TRIG 1 6 OUT GND 2 5 V+ SET 3 4 TRIG SET 3 4 DIV DCB PACKAGE S6 PACKAGE 6-LEAD (2mm × 3mm) PLASTIC DFN 6-LEAD PLASTIC TSOT-23 TJMAX = 150°C, θJA = 64°C/W, θJC = 10.6°C/W TJMAX = 150°C, θJA = 192°C/W, θJC = 51°C/W EXPOSED PAD (PIN 7) CONNECTED TO GND, PCB CONNECTION OPTIONAL
ORDER INFORMATION Lead Free Finish TAPE AND REEL (MINI) TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LTC6993CDCB-1#TRMPBF LTC6993CDCB-1#TRPBF LDXH 6-Lead (2mm × 3mm) Plastic DFN 0°C to 70°C LTC6993IDCB-1#TRMPBF LTC6993IDCB-1#TRPBF LDXH 6-Lead (2mm × 3mm) Plastic DFN –40°C to 85°C LTC6993HDCB-1#TRMPBF LTC6993HDCB-1#TRPBF LDXH 6-Lead (2mm × 3mm) Plastic DFN –40°C to 125°C LTC6993CS6-1#TRMPBF LTC6993CS6-1#TRPBF LTDXG 6-Lead Plastic TSOT-23 0°C to 70°C LTC6993IS6-1#TRMPBF LTC6993IS6-1#TRPBF LTDXG 6-Lead Plastic TSOT-23 –40°C to 85°C LTC6993HS6-1#TRMPBF LTC6993HS6-1#TRPBF LTDXG 6-Lead Plastic TSOT-23 –40°C to 125°C LTC6993CDCB-2#TRMPBF LTC6993CDCB-2#TRPBF LDXK 6-Lead (2mm × 3mm) Plastic DFN 0°C to 70°C LTC6993IDCB-2#TRMPBF LTC6993IDCB-2#TRPBF LDXK 6-Lead (2mm × 3mm) Plastic DFN –40°C to 85°C LTC6993HDCB-2#TRMPBF LTC6993HDCB-2#TRPBF LDXK 6-Lead (2mm × 3mm) Plastic DFN –40°C to 125°C LTC6993CS6-2#TRMPBF LTC6993CS6-2#TRPBF LTDXJ 6-Lead Plastic TSOT-23 0°C to 70°C LTC6993IS6-2#TRMPBF LTC6993IS6-2#TRPBF LTDXJ 6-Lead Plastic TSOT-23 –40°C to 85°C LTC6993HS6-2#TRMPBF LTC6993HS6-2#TRPBF LTDXJ 6-Lead Plastic TSOT-23 –40°C to 125°C LTC6993CDCB-3#TRMPBF LTC6993CDCB-3#TRPBF LFMJ 6-Lead (2mm × 3mm) Plastic DFN 0°C to 70°C LTC6993IDCB-3#TRMPBF LTC6993IDCB-3#TRPBF LFMJ 6-Lead (2mm × 3mm) Plastic DFN –40°C to 85°C LTC6993HDCB-3#TRMPBF LTC6993HDCB-3#TRPBF LFMJ 6-Lead (2mm × 3mm) Plastic DFN –40°C to 125°C Rev. E 2 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
