Datasheet LTC6992-1, LTC6992-2, LTC6992-3, LTC6992-4 (Analog Devices) - 4

制造商Analog Devices
描述TimerBlox: Voltage-Controlled Pulse Width Modulator (PWM)
页数 / 页34 / 4 — ELECTRICAL CHARACTERISTICS The. denotes the specifications which apply …
文件格式/大小PDF / 1.4 Mb
文件语言英语

ELECTRICAL CHARACTERISTICS The. denotes the specifications which apply over the full operating

ELECTRICAL CHARACTERISTICS The denotes the specifications which apply over the full operating

该数据表的模型线

文件文字版本

LTC6992-1/LTC6992-2/ LTC6992-3/LTC6992-4
ELECTRICAL CHARACTERISTICS The
l

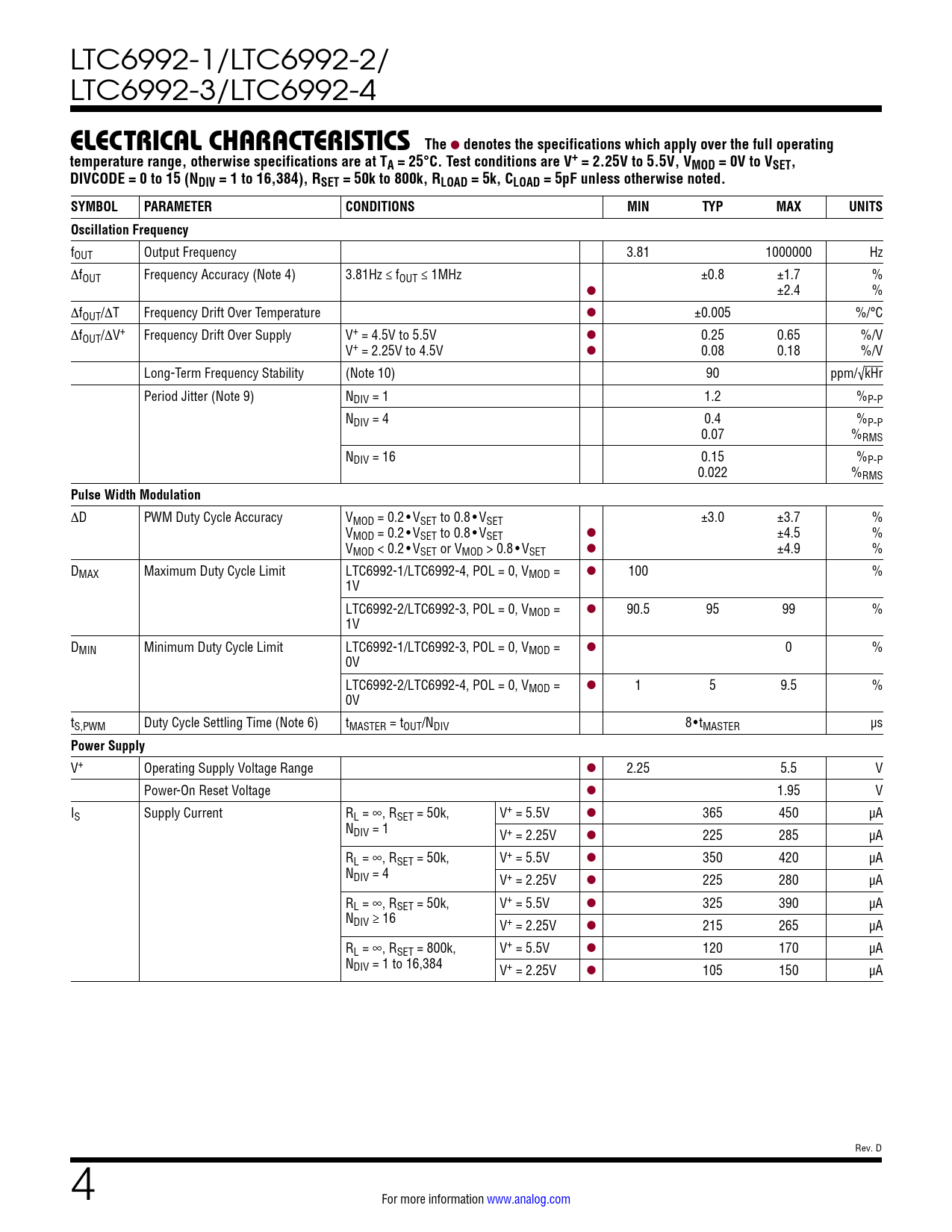

denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. Test conditions are V+ = 2.25V to 5.5V, VMOD = 0V to VSET, DIVCODE = 0 to 15 (NDIV = 1 to 16,384), RSET = 50k to 800k, RLOAD = 5k, CLOAD = 5pF unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS Oscillation Frequency
fOUT Output Frequency 3.81 1000000 Hz ∆fOUT Frequency Accuracy (Note 4) 3.81Hz ≤ fOUT ≤ 1MHz ±0.8 ±1.7 % l ±2.4 % ∆fOUT/∆T Frequency Drift Over Temperature l ±0.005 %/°C ∆fOUT/∆V+ Frequency Drift Over Supply V+ = 4.5V to 5.5V l 0.25 0.65 %/V V+ = 2.25V to 4.5V l 0.08 0.18 %/V Long-Term Frequency Stability (Note 10) 90 ppm/√kHr Period Jitter (Note 9) NDIV = 1 1.2 %P-P NDIV = 4 0.4 %P-P 0.07 %RMS NDIV = 16 0.15 %P-P 0.022 %RMS
Pulse Width Modulation
∆D PWM Duty Cycle Accuracy VMOD = 0.2 • VSET to 0.8 • VSET ±3.0 ±3.7 % VMOD = 0.2 • VSET to 0.8 • VSET l ±4.5 % VMOD < 0.2 • VSET or VMOD > 0.8 • VSET l ±4.9 % DMAX Maximum Duty Cycle Limit LTC6992-1/LTC6992-4, POL = 0, VMOD = l 100 % 1V LTC6992-2/LTC6992-3, POL = 0, VMOD = l 90.5 95 99 % 1V DMIN Minimum Duty Cycle Limit LTC6992-1/LTC6992-3, POL = 0, VMOD = l 0 % 0V LTC6992-2/LTC6992-4, POL = 0, VMOD = l 1 5 9.5 % 0V tS,PWM Duty Cycle Settling Time (Note 6) tMASTER = tOUT/NDIV 8•tMASTER µs
