Datasheet CMS11 (Toshiba) - 2
| 制造商 | Toshiba |
| 描述 | Schottky Barrier Rectifier |
| 页数 / 页 | 5 / 2 — Marking. Standard Soldering Pad. Handling Precaution |
| 文件格式/大小 | PDF / 177 Kb |
| 文件语言 | 英语 |
Marking. Standard Soldering Pad. Handling Precaution
该数据表的模型线
文件文字版本

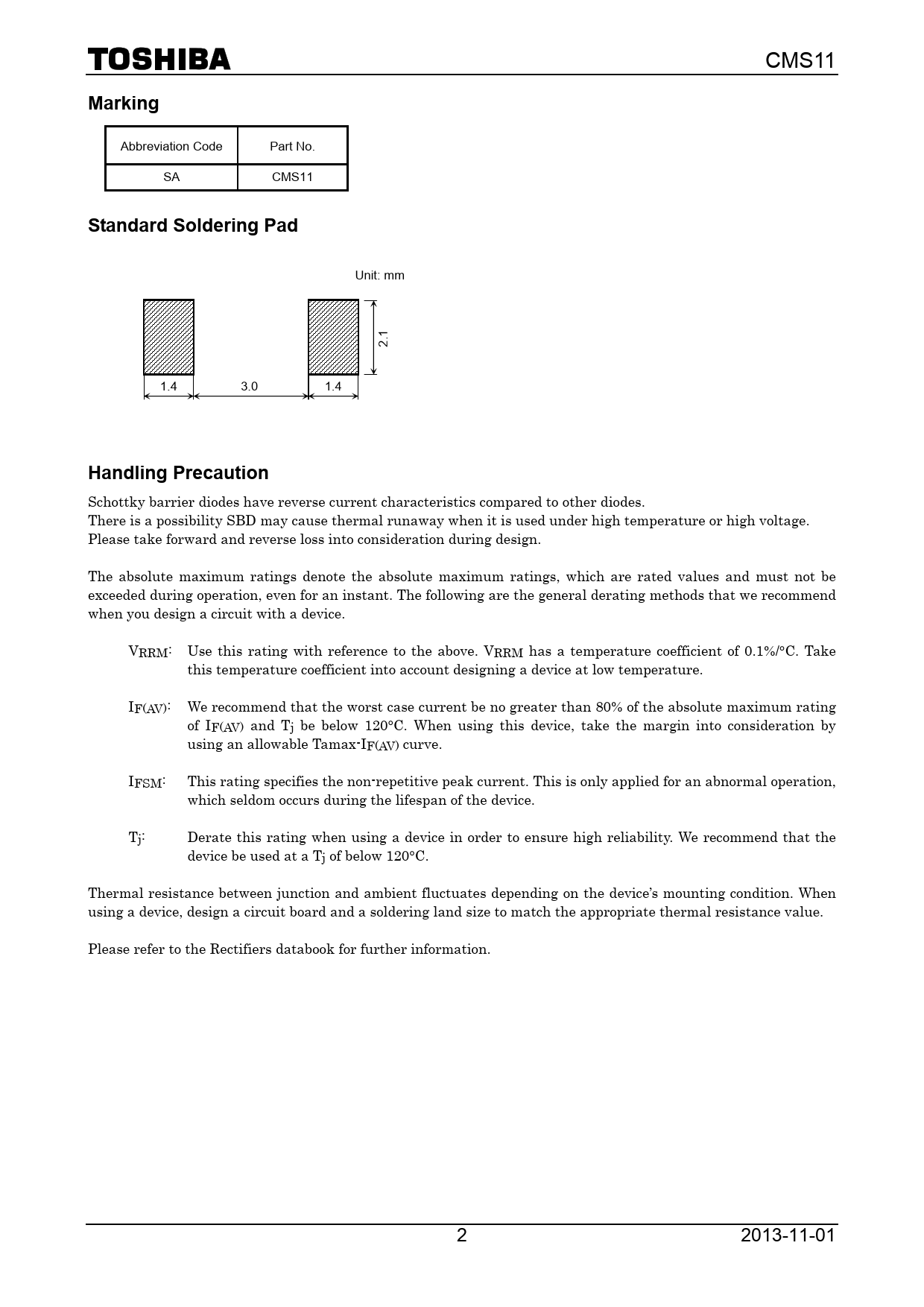

CMS11
Marking
Abbreviation Code Part No. SA CMS11
Standard Soldering Pad
Unit: mm 2.1 1.4 3.0 1.4
Handling Precaution
Schottky barrier diodes have reverse current characteristics compared to other diodes. There is a possibility SBD may cause thermal runaway when it is used under high temperature or high voltage. Please take forward and reverse loss into consideration during design. The absolute maximum ratings denote the absolute maximum ratings, which are rated values and must not be exceeded during operation, even for an instant. The following are the general derating methods that we recommend when you design a circuit with a device. VRRM: Use this rating with reference to the above. VRRM has a temperature coefficient of 0.1%/°C. Take this temperature coefficient into account designing a device at low temperature. IF(AV): We recommend that the worst case current be no greater than 80% of the absolute maximum rating of IF(AV) and Tj be below 120°C. When using this device, take the margin into consideration by using an allowable Tamax-IF(AV) curve. IFSM: This rating specifies the non-repetitive peak current. This is only applied for an abnormal operation, which seldom occurs during the lifespan of the device. Tj: Derate this rating when using a device in order to ensure high reliability. We recommend that the device be used at a Tj of below 120°C. Thermal resistance between junction and ambient fluctuates depending on the device’s mounting condition. When using a device, design a circuit board and a soldering land size to match the appropriate thermal resistance value. Please refer to the Rectifiers databook for further information. 2 2013-11-01 Document Outline TOSHIBA Schottky Barrier Rectifier Schottky Barrier Type Absolute Maximum Ratings (Ta 25°C) Electrical Characteristics (Ta 25°C) Marking Standard Soldering Pad RESTRICTIONS ON PRODUCT USE
