AD8421-KGD. Known Good Die. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. Rating. ESD CAUTION
该数据表的模型线
文件文字版本

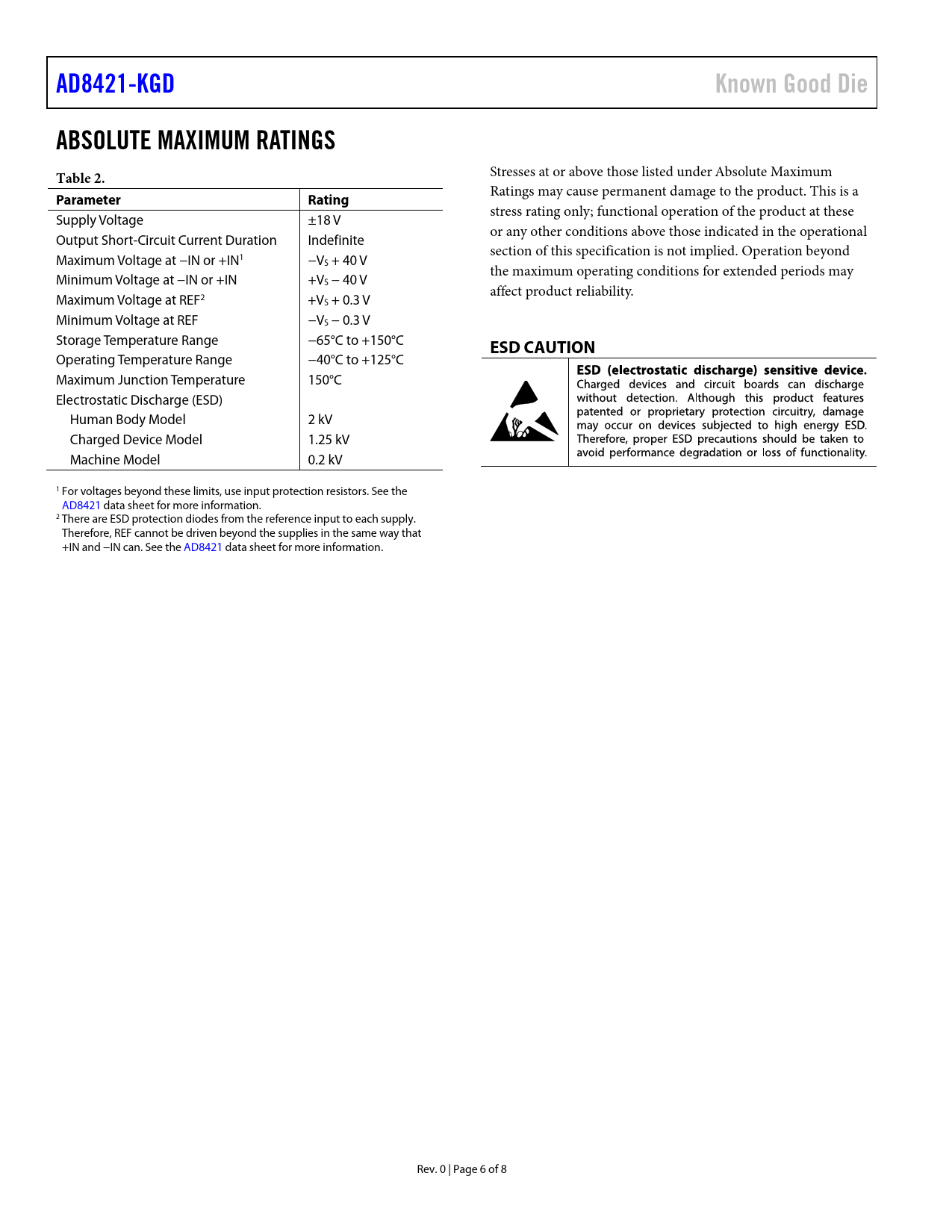

AD8421-KGD Known Good Die ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these Supply Voltage ±18 V or any other conditions above those indicated in the operational Output Short-Circuit Current Duration Indefinite section of this specification is not implied. Operation beyond Maximum Voltage at −IN or +IN1 −VS + 40 V the maximum operating conditions for extended periods may Minimum Voltage at −IN or +IN +VS − 40 V affect product reliability. Maximum Voltage at REF2 +VS + 0.3 V Minimum Voltage at REF −VS − 0.3 V Storage Temperature Range −65°C to +150°C
ESD CAUTION
Operating Temperature Range −40°C to +125°C Maximum Junction Temperature 150°C Electrostatic Discharge (ESD) Human Body Model 2 kV Charged Device Model 1.25 kV Machine Model 0.2 kV 1 For voltages beyond these limits, use input protection resistors. See the AD8421 data sheet for more information. 2 There are ESD protection diodes from the reference input to each supply. Therefore, REF cannot be driven beyond the supplies in the same way that +IN and −IN can. See the AD8421 data sheet for more information. Rev. 0 | Page 6 of 8 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS OUTLINE DIMENSIONS DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS ORDERING GUIDE
