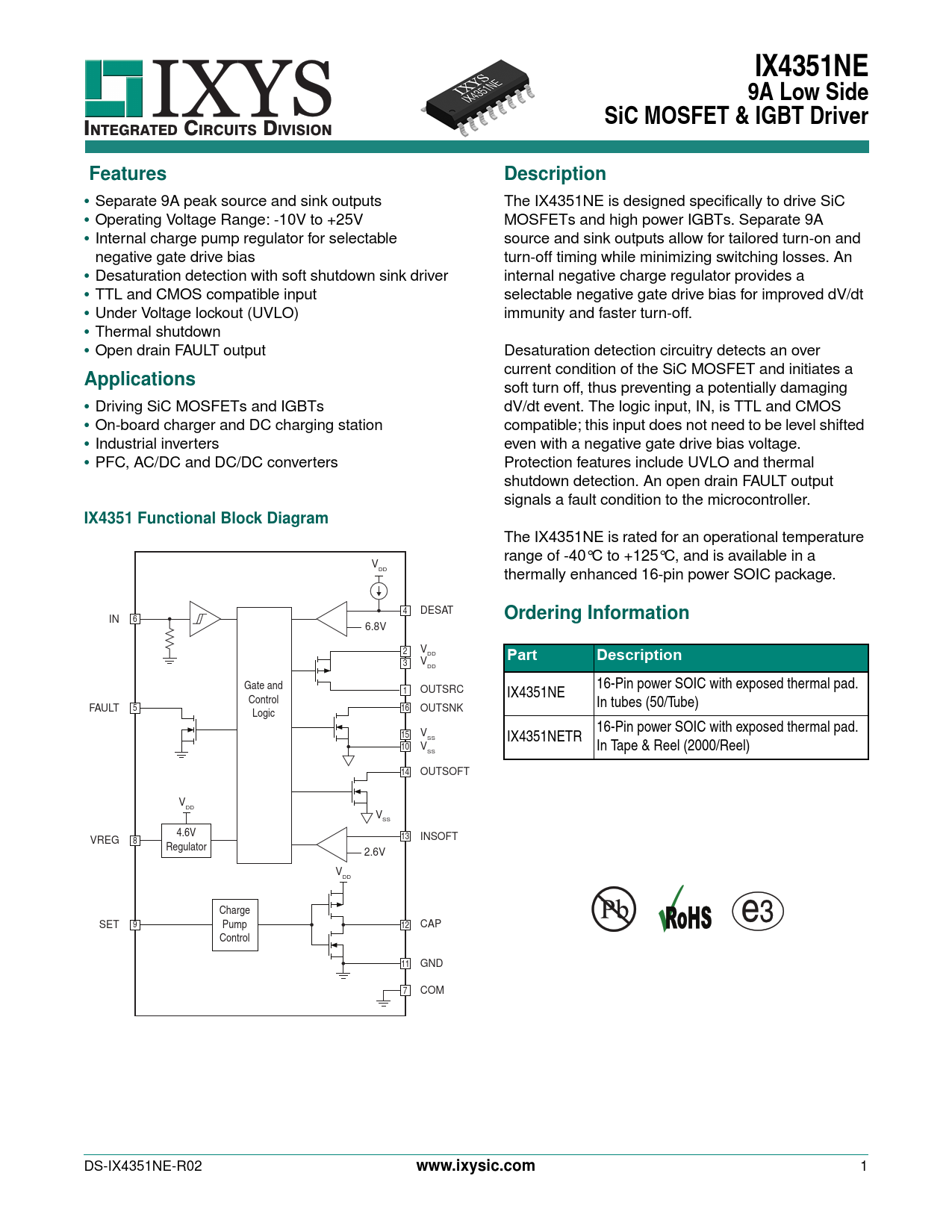

IX4351NE. 9A Low Side. SiC MOSFET & IGBT Driver. Features. Description. Applications. IX4351 Functional Block Diagram
该数据表的模型线
文件文字版本
IX4351NE 9A Low Side
I
SiC MOSFET & IGBT Driver
NTEGRATED CIRCUITS DIVISION
Features Description •
Separate 9A peak source and sink outputs The IX4351NE is designed specifically to drive SiC
•
Operating Voltage Range: -10V to +25V MOSFETs and high power IGBTs. Separate 9A
•
Internal charge pump regulator for selectable source and sink outputs allow for tailored turn-on and negative gate drive bias turn-off timing while minimizing switching losses. An
•
Desaturation detection with soft shutdown sink driver internal negative charge regulator provides a
•
TTL and CMOS compatible input selectable negative gate drive bias for improved dV/dt
•
Under Voltage lockout (UVLO) immunity and faster turn-off.
•
Thermal shutdown
•
Open drain FAULT output Desaturation detection circuitry detects an over current condition of the SiC MOSFET and initiates a
Applications
soft turn off, thus preventing a potentially damaging
•
Driving SiC MOSFETs and IGBTs dV/dt event. The logic input, IN, is TTL and CMOS
•
On-board charger and DC charging station compatible; this input does not need to be level shifted
•
Industrial inverters even with a negative gate drive bias voltage.
•
PFC, AC/DC and DC/DC converters Protection features include UVLO and thermal shutdown detection. An open drain FAULT output signals a fault condition to the microcontroller.
IX4351 Functional Block Diagram
The IX4351NE is rated for an operational temperature range of -40°C to +125°C, and is available in a VDD thermally enhanced 16-pin power SOIC package. 4 DESAT 6
Ordering Information
IN 6.8V 2 VDD
Part Description
3 VDD Gate and 16-Pin power SOIC with exposed thermal pad. 1 OUTSRC IX4351NE Control In tubes (50/Tube) FAULT 5 16 Logic OUTSNK 16-Pin power SOIC with exposed thermal pad. 15 VSS IX4351NETR 10 V In Tape & Reel (2000/Reel) SS 14 OUTSOFT VDD VSS 4.6V VREG 13 INSOFT 8 Regulator 2.6V VDD Charge SET 9 Pump 12 CAP Control 11 GND 7 COM DS-IX4351NE-R02
www.ixysic.com
1 Document Outline Features Applications Description Ordering Information 1 Specifications 1.1 Package Pinout 1.2 Pin Description 1.3 Absolute Maximum Ratings 1.4 Recommended Operating Conditions 1.5 Electrical Characteristics 1.6 Thermal Characteristics 2 Performance Data 3 Performance Data (Cont.) 4 Functional Description 4.1 Logic Input (IN) 4.2 Gate Drive Outputs (OUTSRC and OUTSNK) 4.3 Internal 4.6V Regulator (VREG) 4.4 Negative VSS Charge Pump Regulator 4.5 Desaturation Detection and Protection 4.6 Thermal Shutdown 4.7 FAULT Output 5 Manufacturing Information 5.1 Moisture Sensitivity 5.2 ESD Sensitivity 5.3 Soldering Profile 5.4 Board Wash 5.5 Mechanical Dimensions
